Test G: Front Door Lock Switch Output Test
Test G: Front Door Lock Switch Output Test

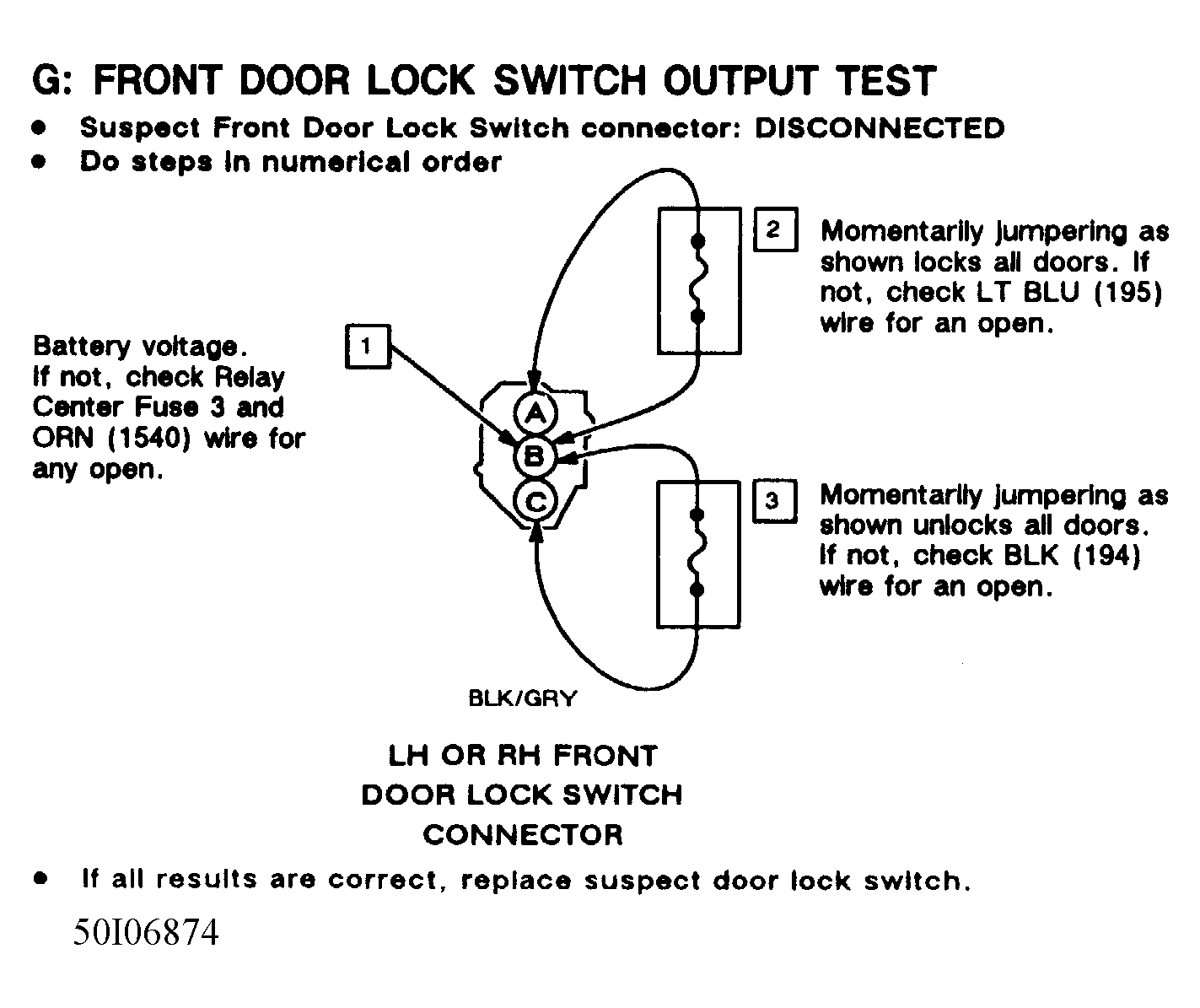

Fig 1: Test G: Front Door Lock Switch Output Test
