Wiring Diagrams
Wiring Diagrams

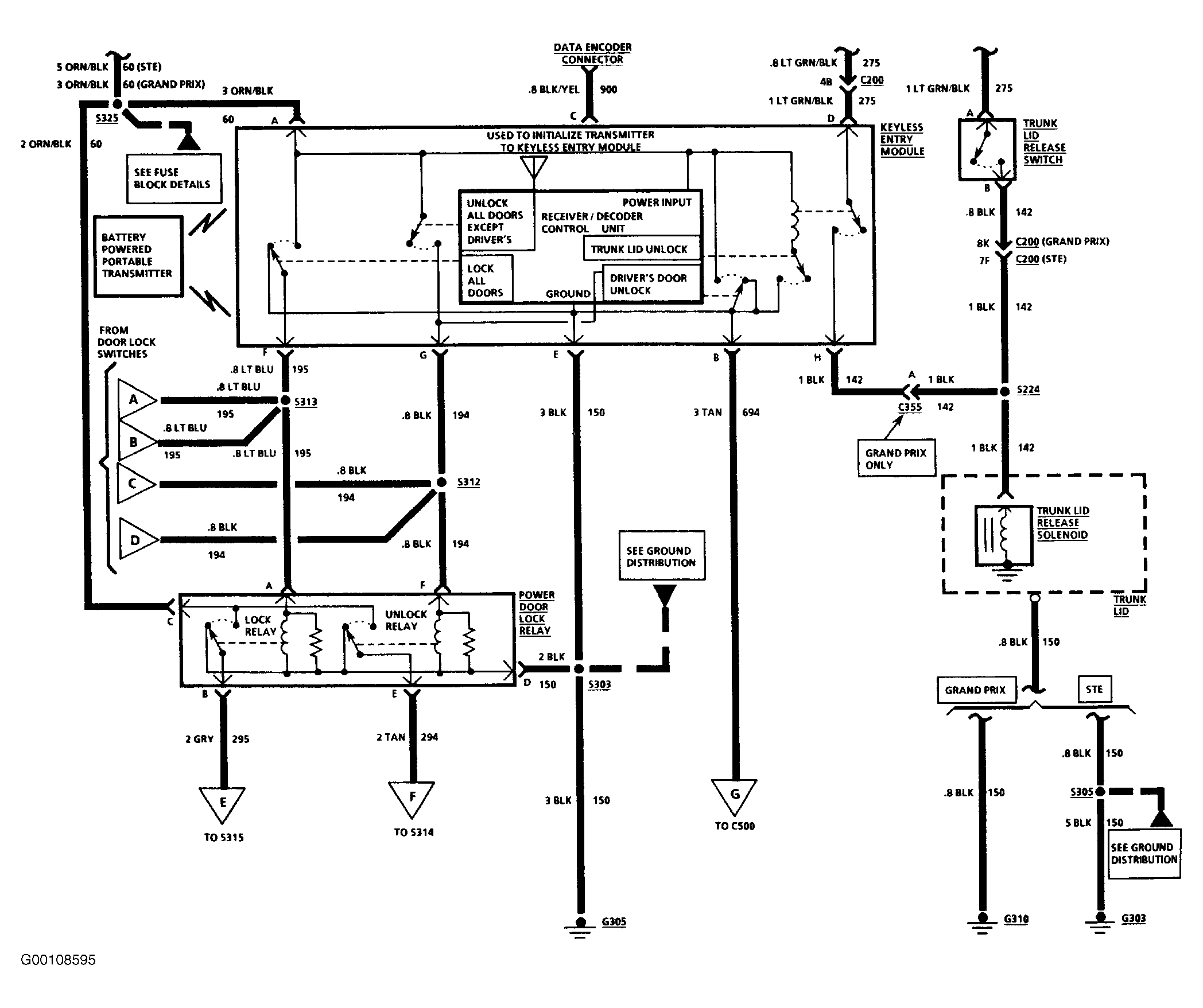

Fig 1: Keyless Entry Wiring Diagram (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

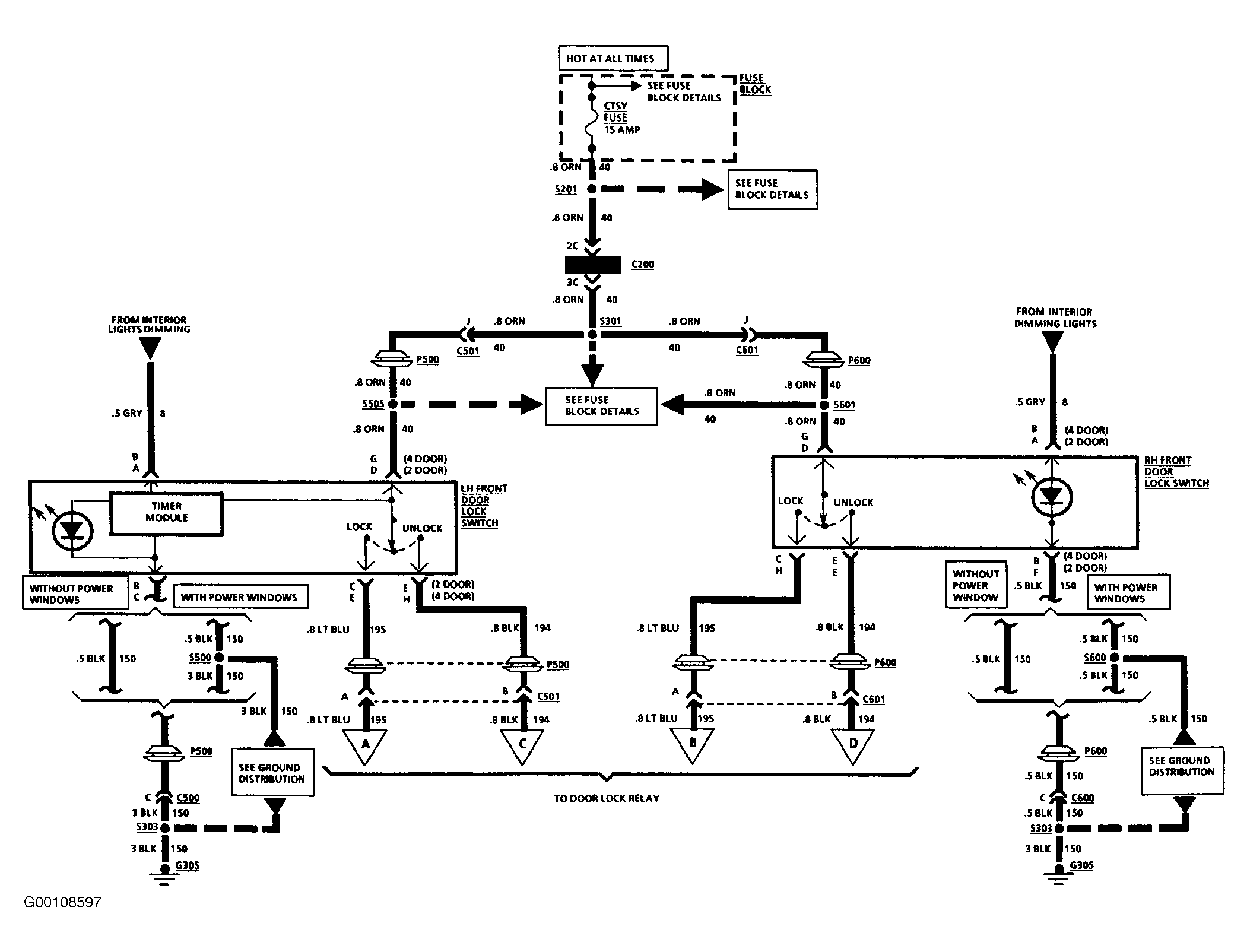

Fig 2: Remote Keyless Entry Wiring Diagram (2 Of 4)
Courtesy of GENERAL MOTORS CORP.

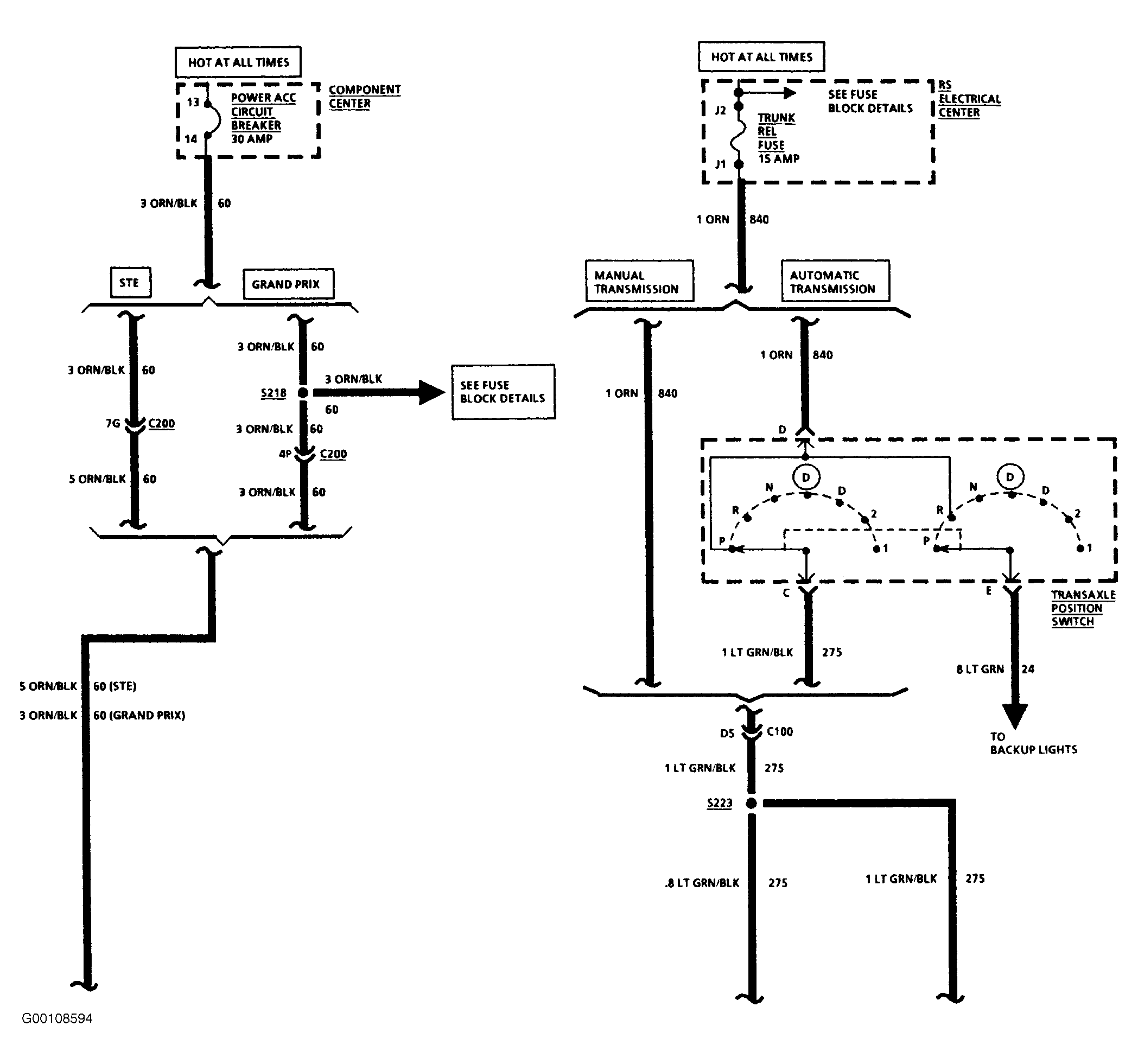

Fig 3: Remote Keyless Entry Wiring Diagram (3 Of 4)
Courtesy of GENERAL MOTORS CORP.

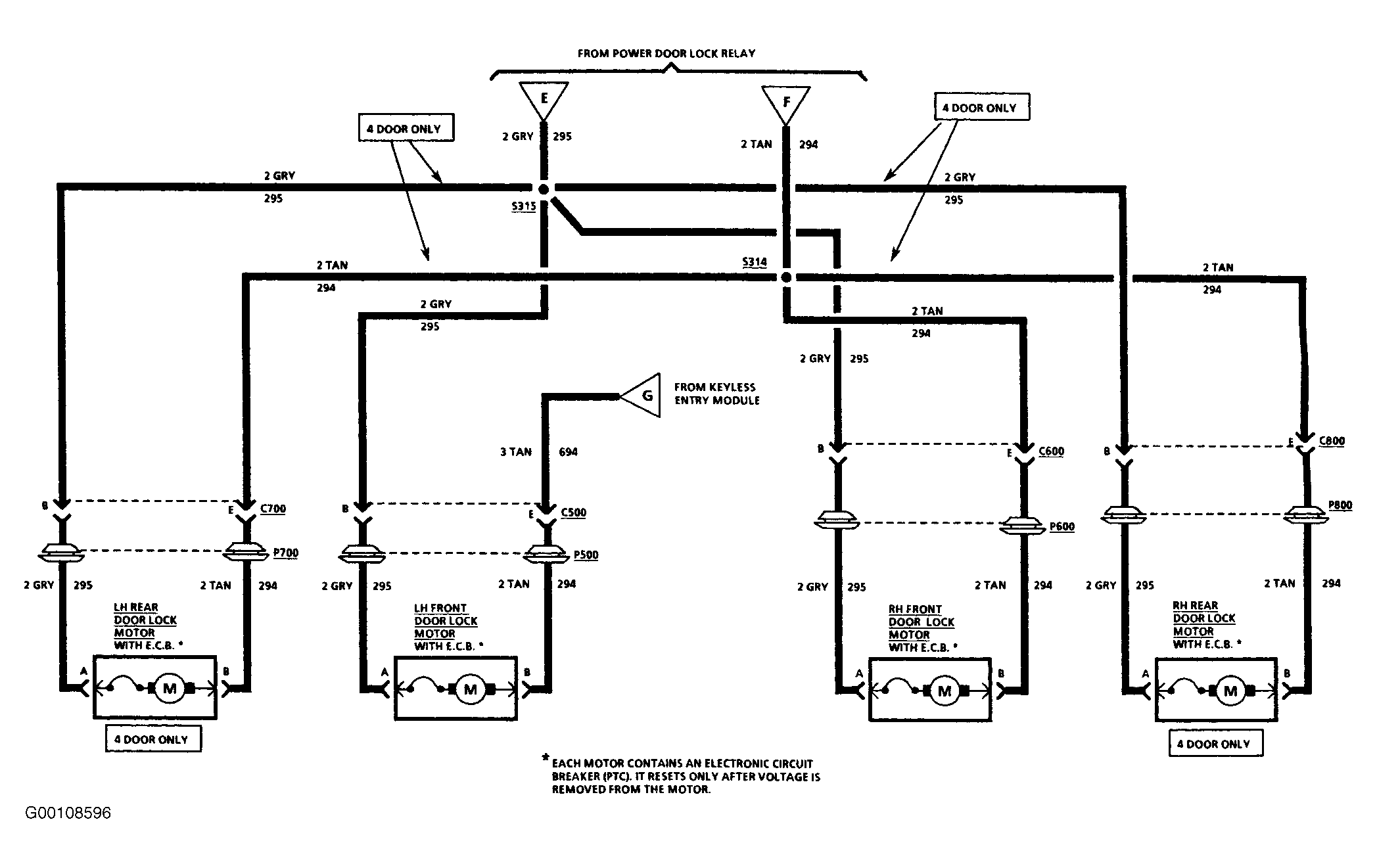

Fig 4: Remote Keyless Entry Wiring Diagram (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
