Torque Specifications

TORQUE SPECIFICATIONS

Application	Ft. Lbs. (N.m)
Column Mounting Bolts	18 (24)
Intermediate Shaft Bolt	35 (47)
Upper Coupling Bolt	35 (47)
Steering Wheel Nut	30 (41)

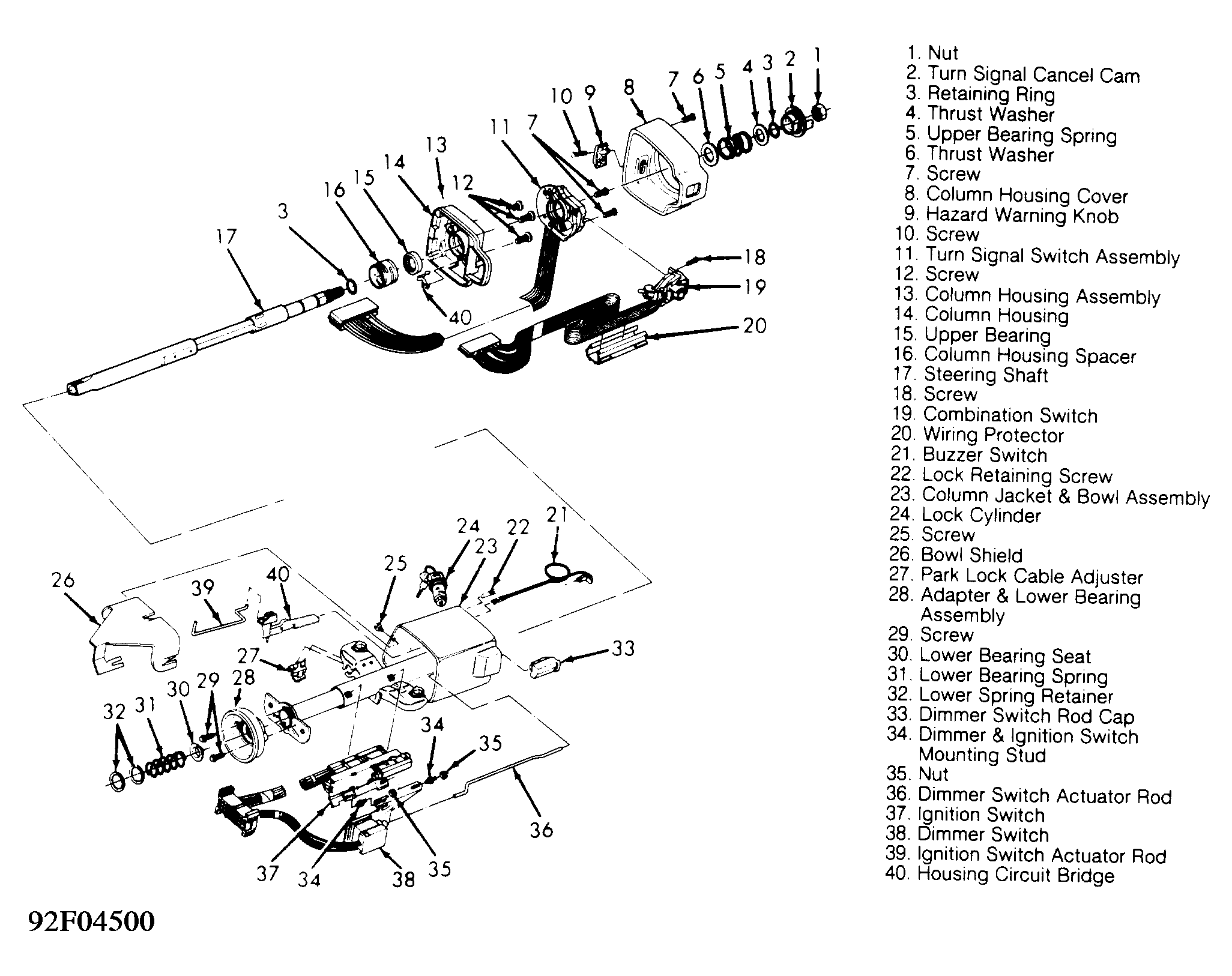

Fig 1: Exploded View of Fixed Steering Column Assembly

Courtesy of GENERAL MOTORS CORP.

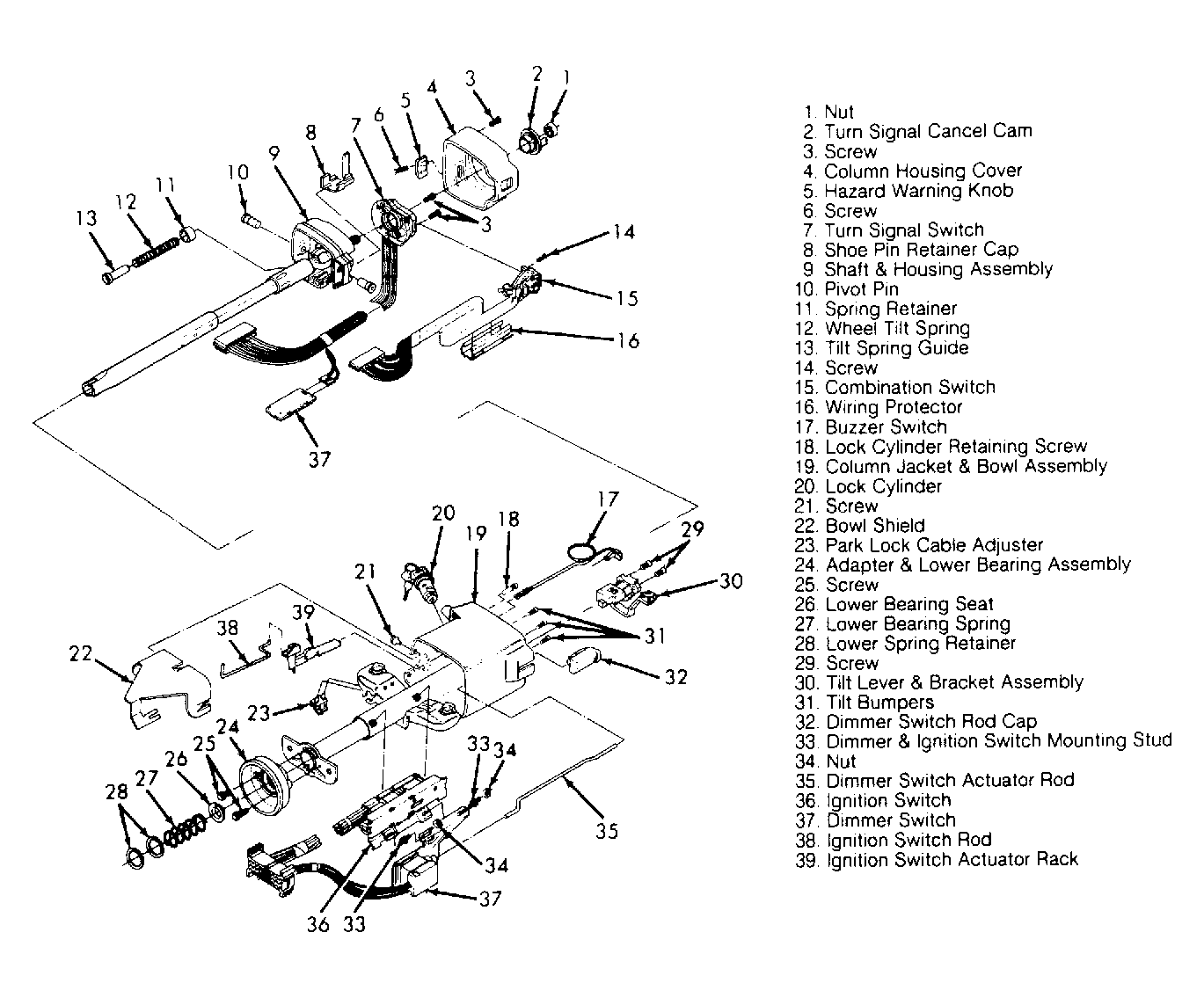

Fig 2: Exploded View of Tilt Steering Column Assembly

Courtesy of GENERAL MOTORS CORP.
