Keyless Entry System Diagnosis

NOTE: If system does not operate correctly, see Fig 1 -Fig 3 .

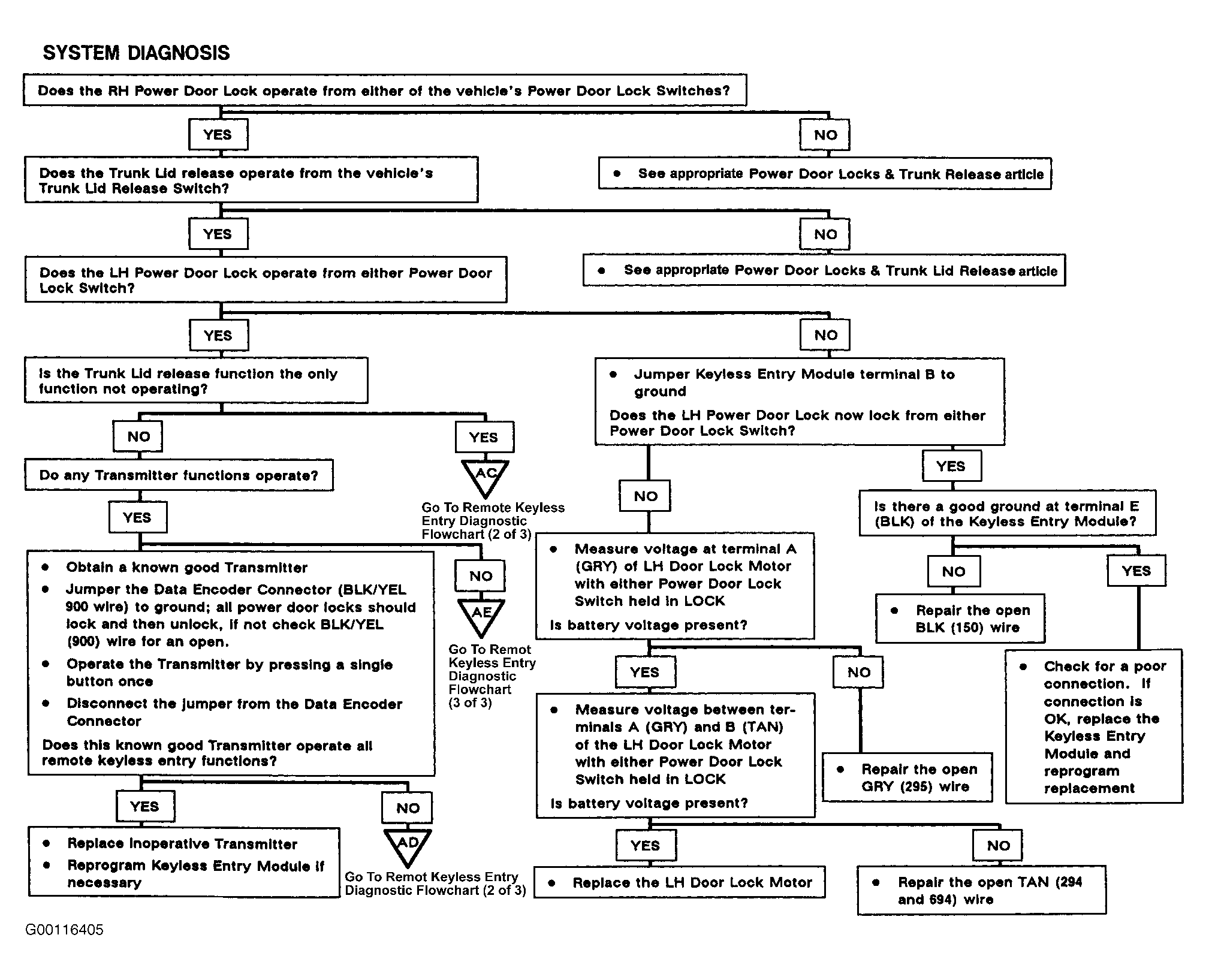

Fig 1: Keyless Entry Diagnostic Flow Chart (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

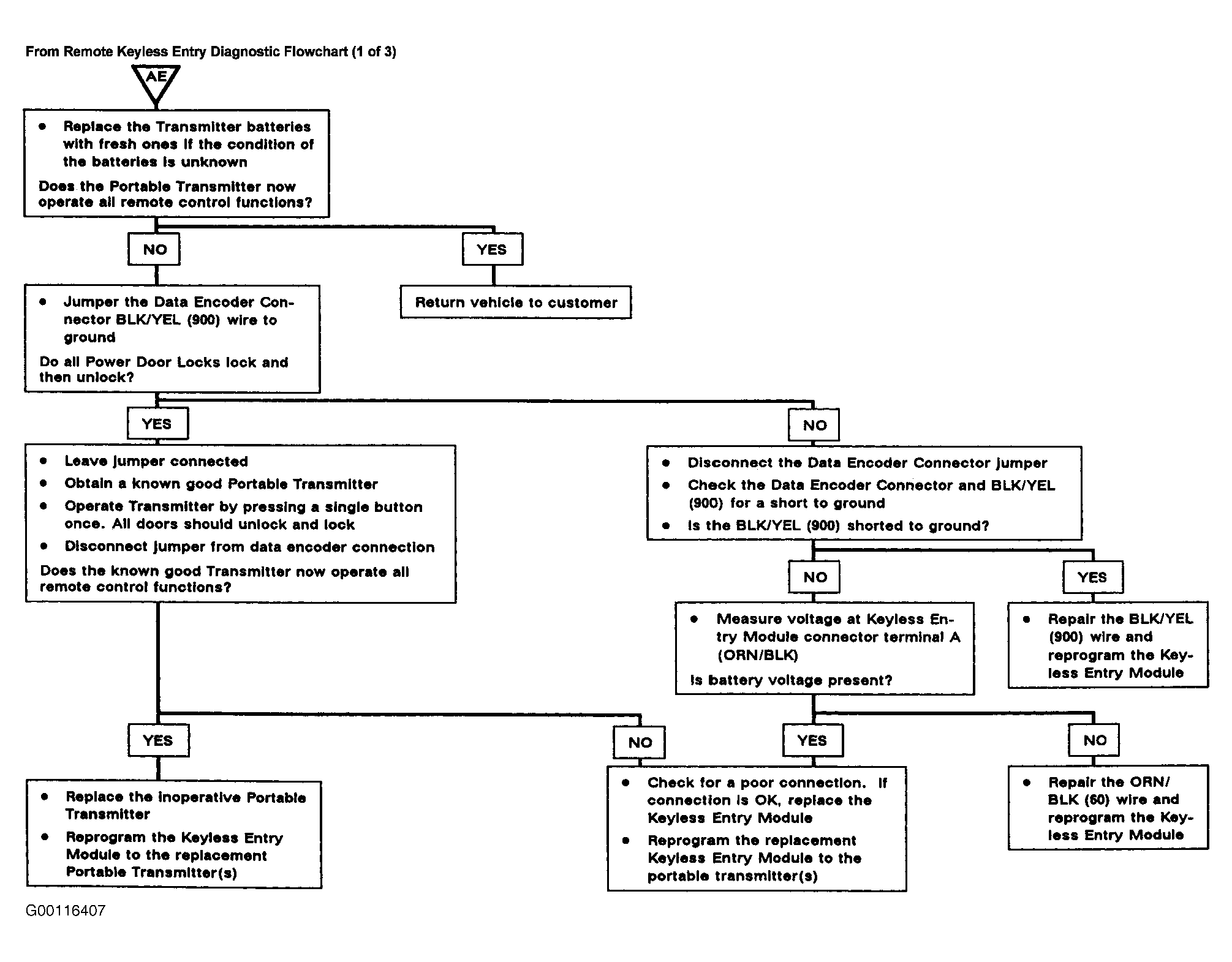

Fig 2: Keyless Entry Diagnostic Flow Chart (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

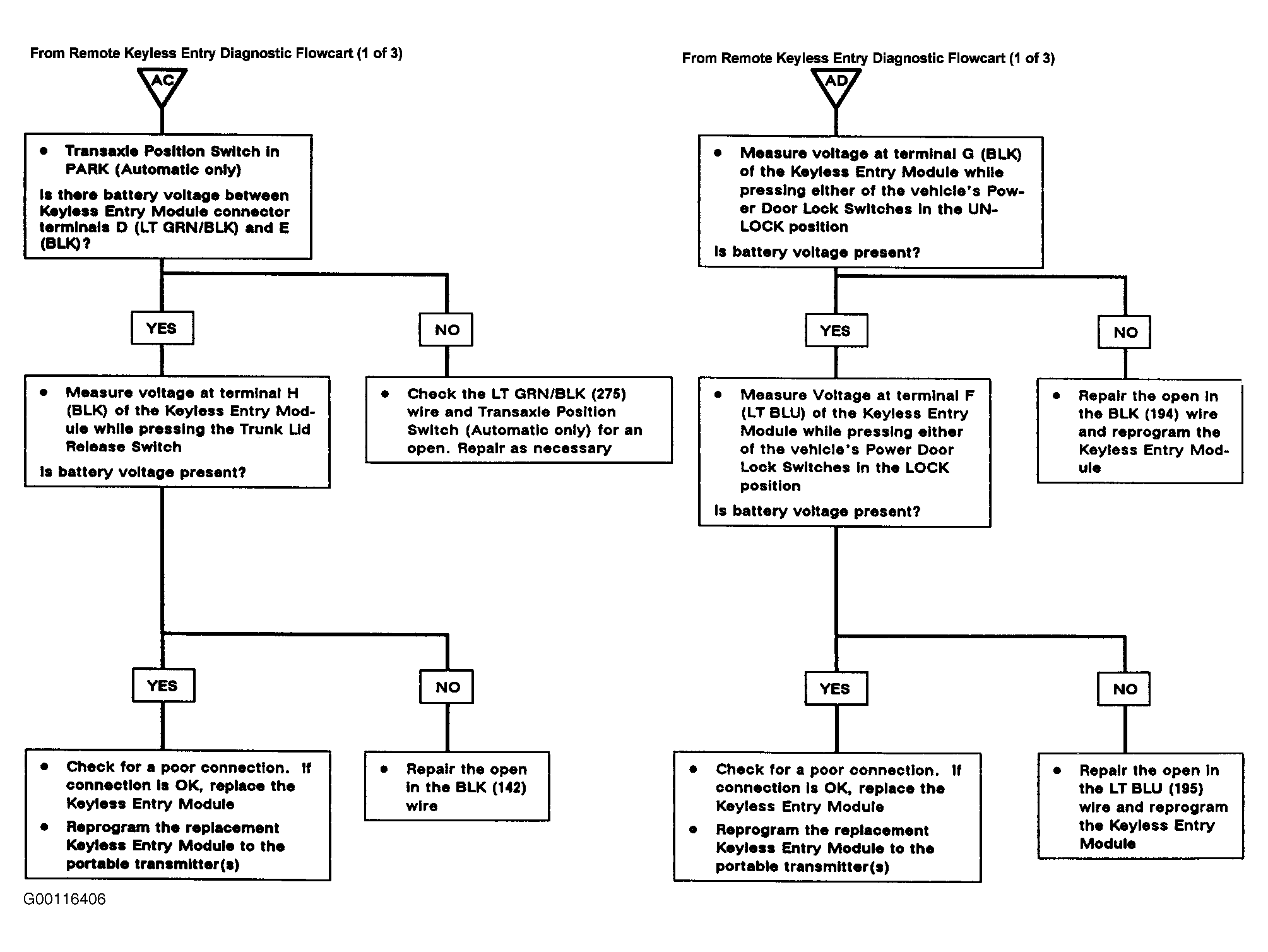

Fig 3: Keyless Entry Diagnostic Flow Chart (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
