Pin Voltage Charts

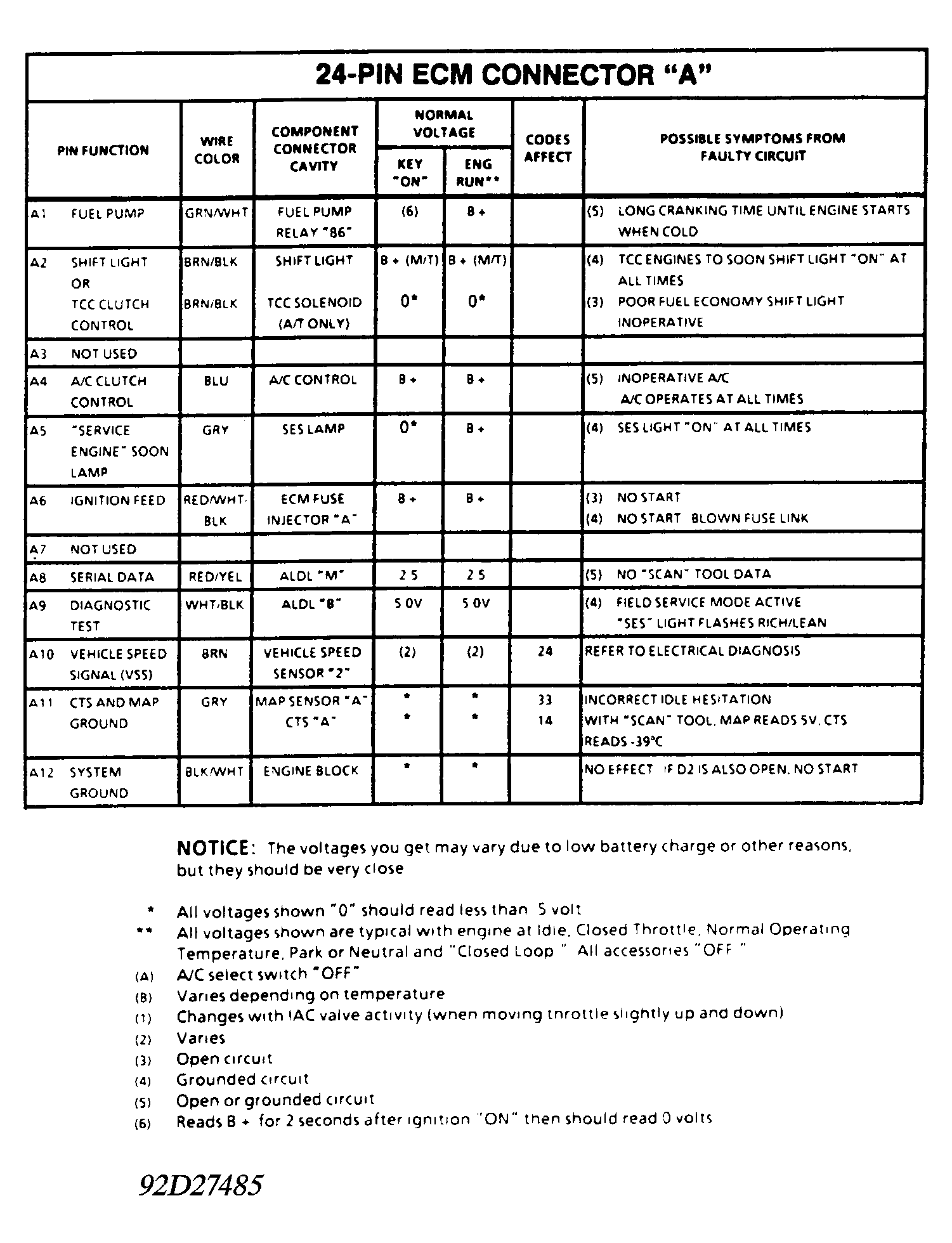

Fig 1: ECM Connector "A" Pin Voltage Chart
G92D27485Courtesy of GENERAL MOTORS CORP.

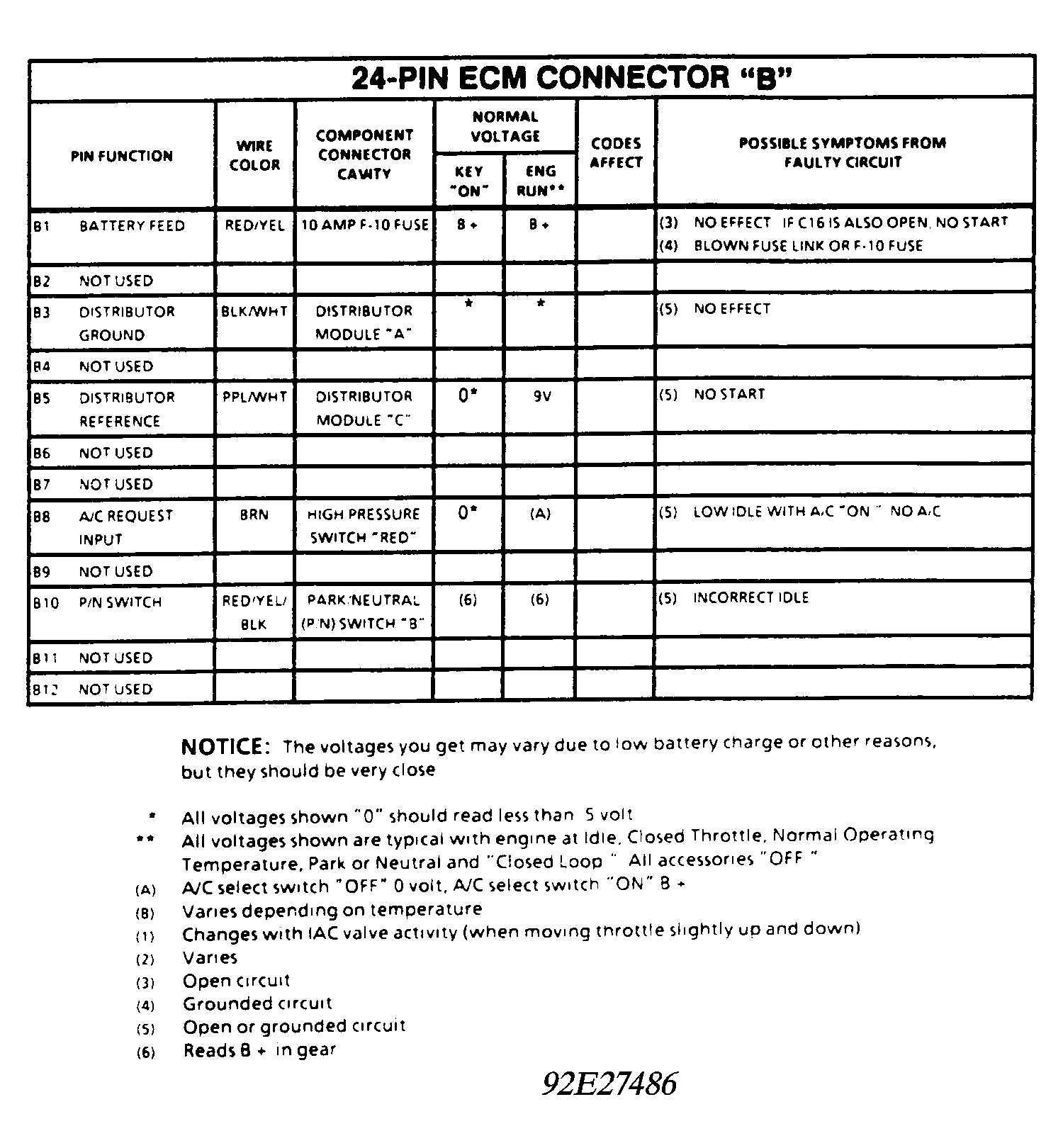

Fig 2: ECM Connector "B" Pin Voltage Chart
G92E27486Courtesy of GENERAL MOTORS CORP.

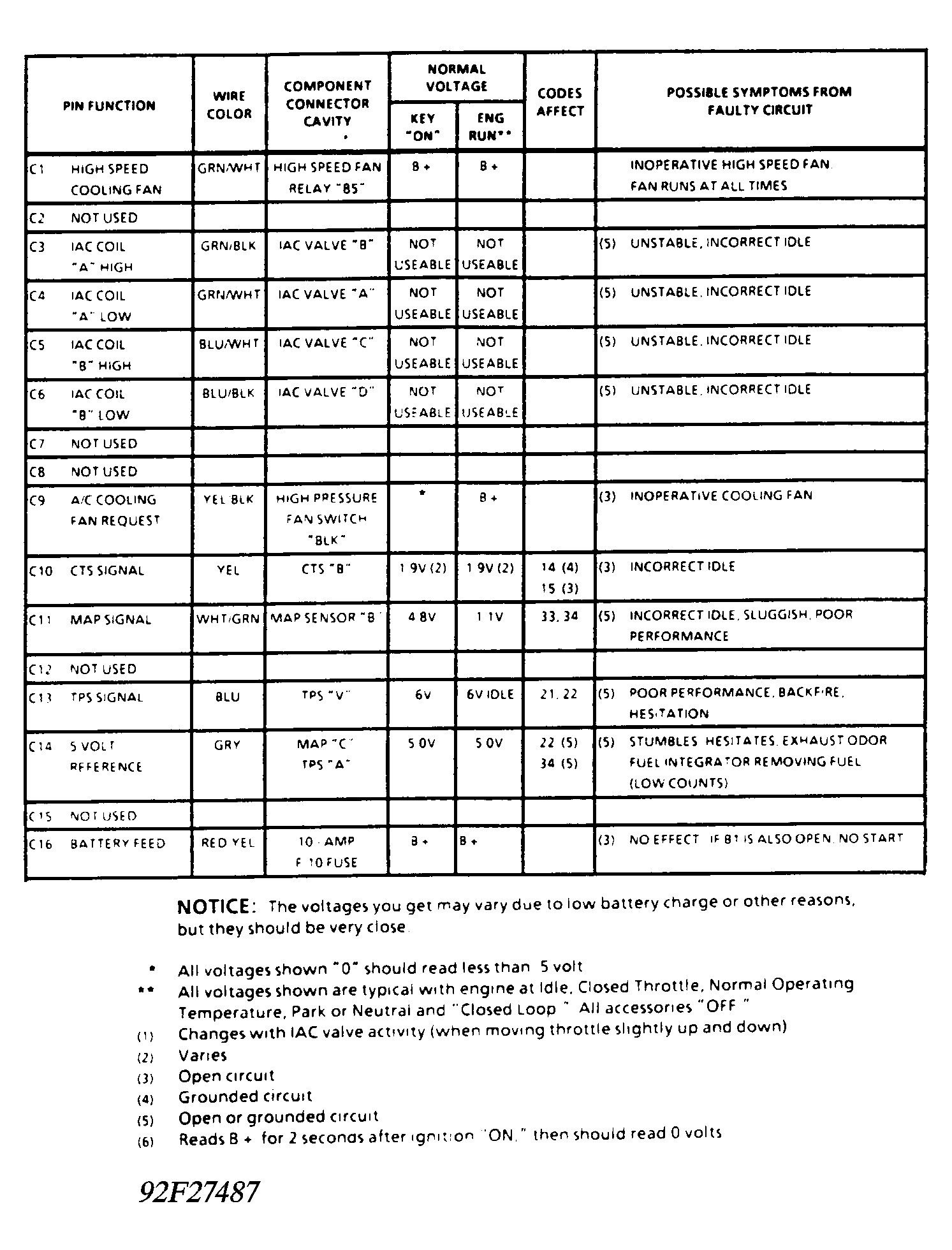

Fig 3: ECM Connector "C" Pin Voltage Chart
G92F27487Courtesy of GENERAL MOTORS CORP.

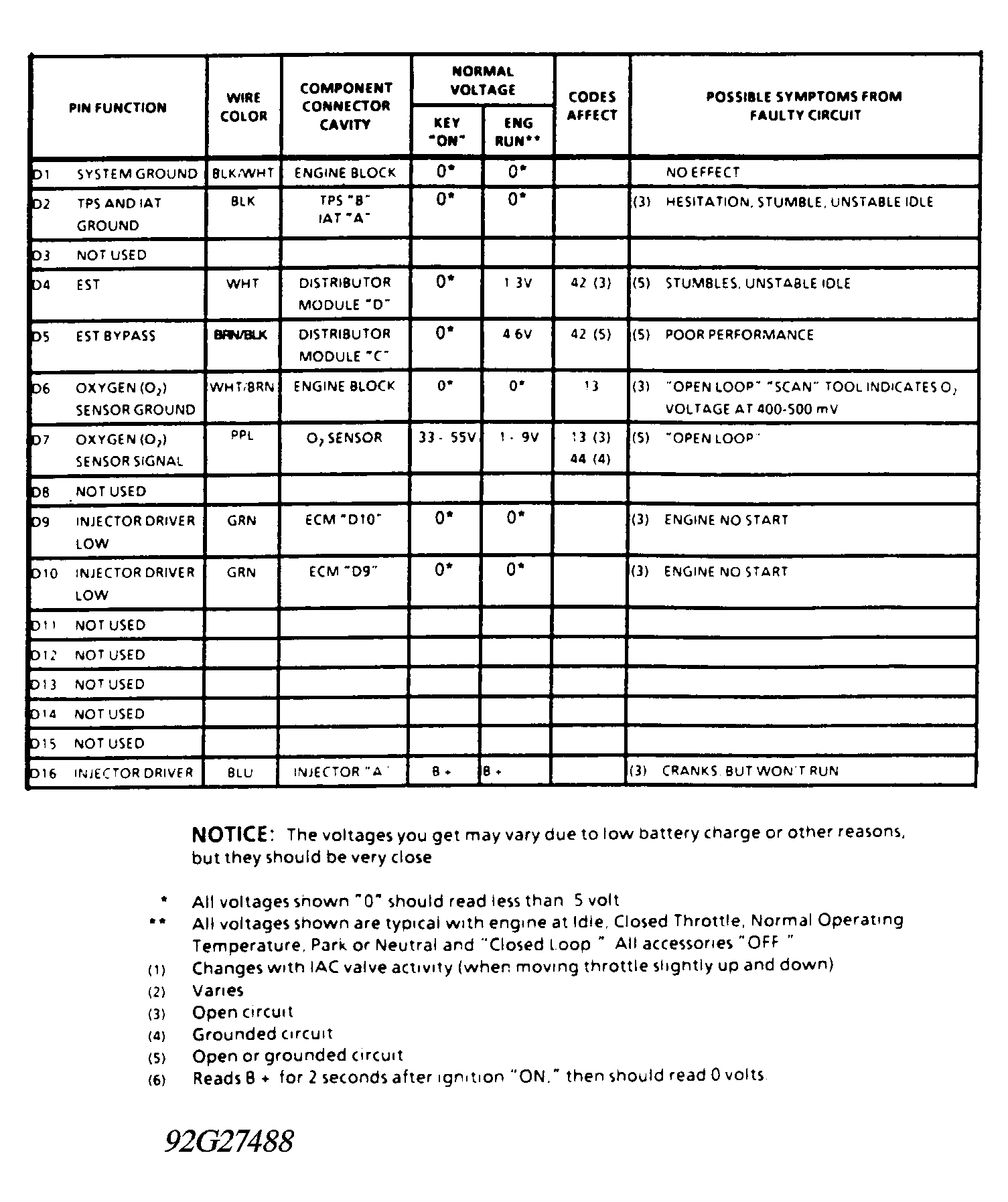

Fig 4: ECM Connector "D" Pin Voltage Chart
G92G27488Courtesy of GENERAL MOTORS CORP.
