EXPERTEC TSB (476510)

Publication date: 1994-05-12
Reference number: 476510

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 476510, Date of Issue: 05/12/94

INFORMATION ON DIAGNOSING - INTERMITTENT ENGINE IDLE RPM

Fig 1: Service Information (1 Of 3)

GB0041832

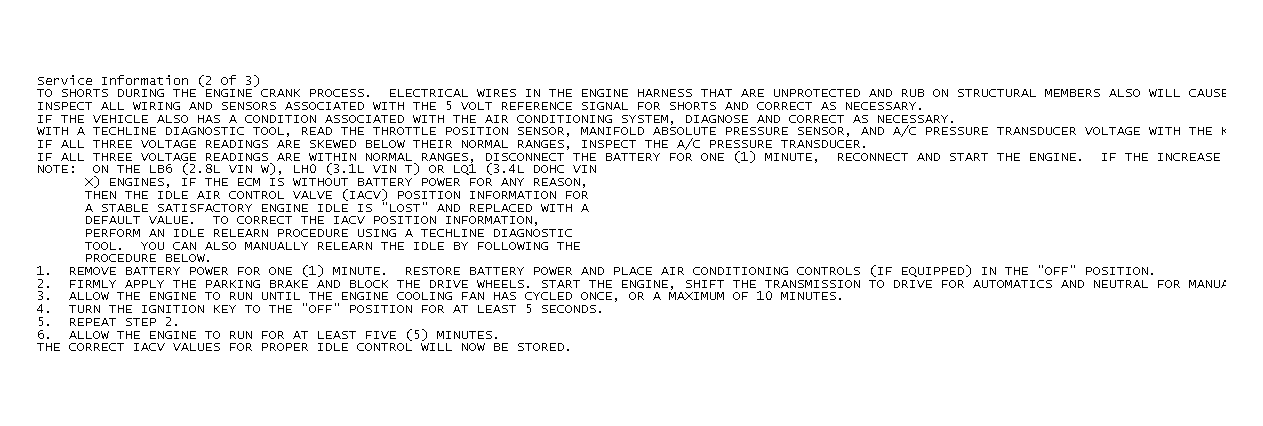

Fig 2: Service Information (2 Of 3)

GB0041833

Fig 3: Service Information (3 Of 3)

GB0041834
