Keyless Entry

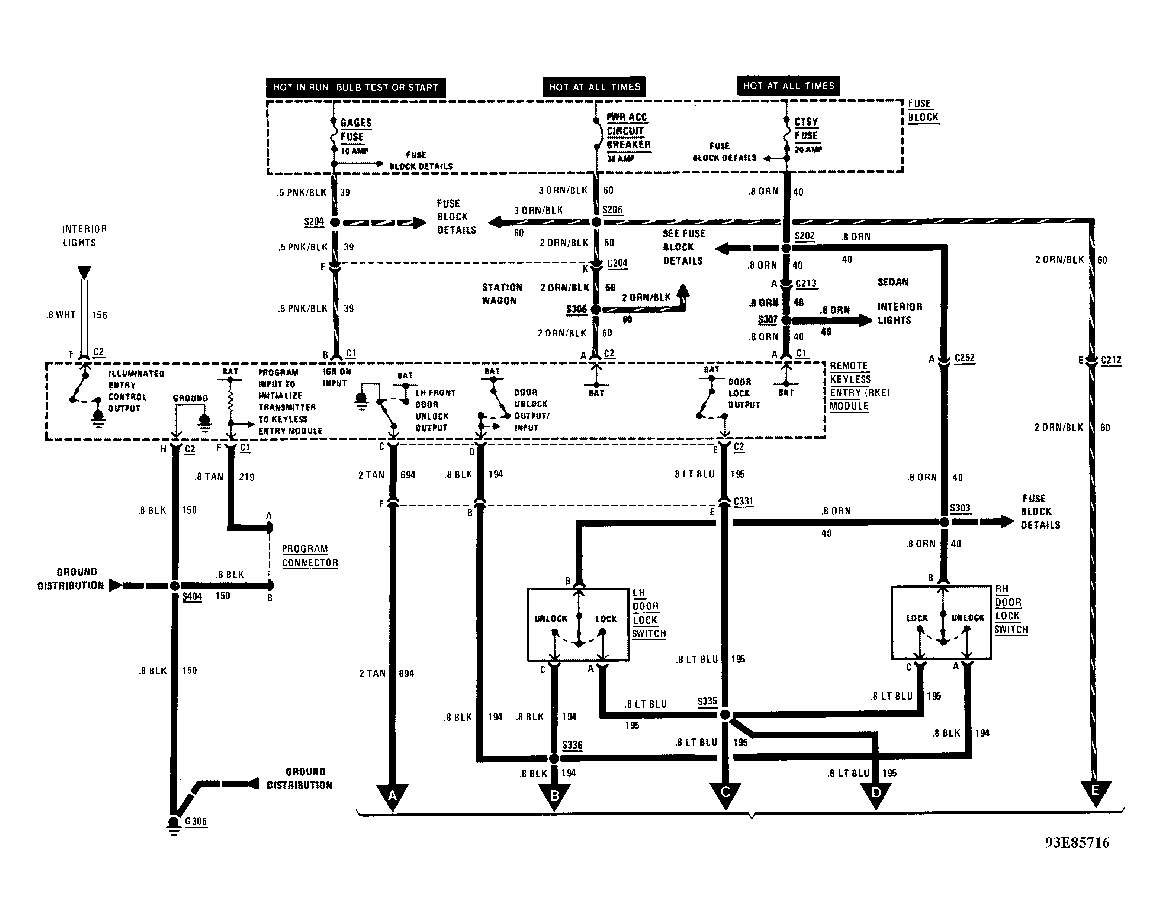

Fig 1: Wiring Diagram (Achieva & Skylark - 1 Of 3)

Courtesy of GENERAL MOTORS CORP.

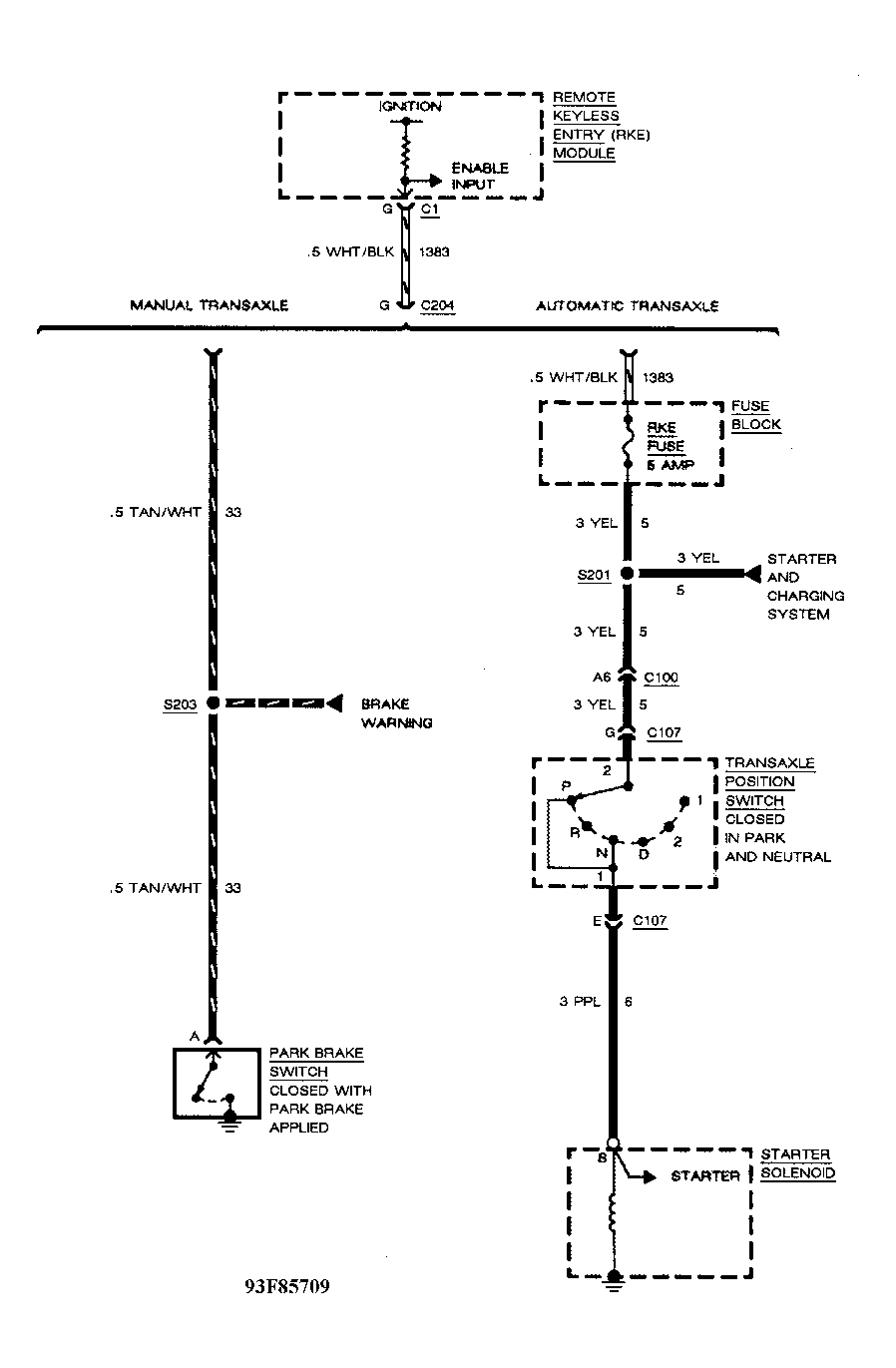

Fig 2: Wiring Diagram (Achieva & Skylark - 2 Of 3)

Courtesy of GENERAL MOTORS CORP.

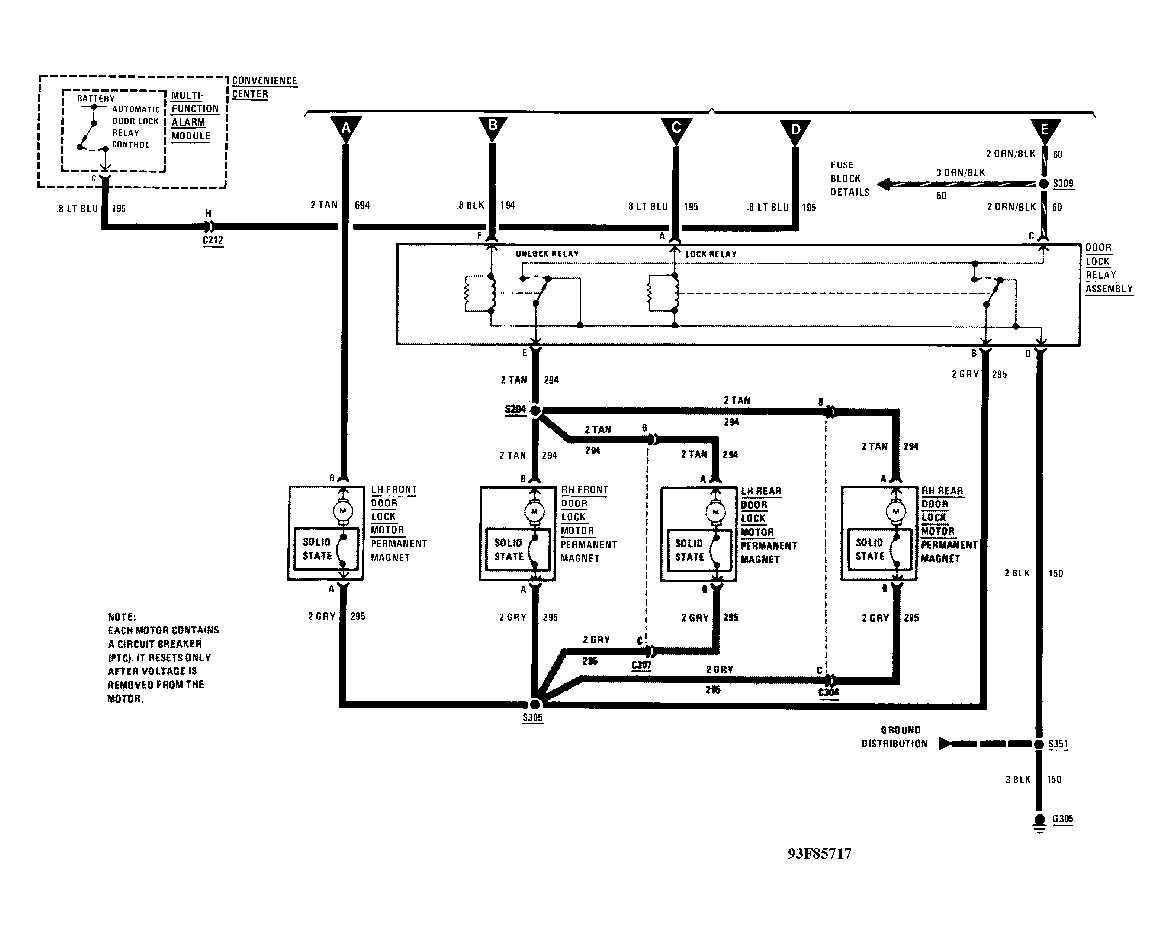

Fig 3: Wiring Diagram (Achieva & Skylark - 3 Of 3)

Courtesy of GENERAL MOTORS CORP.

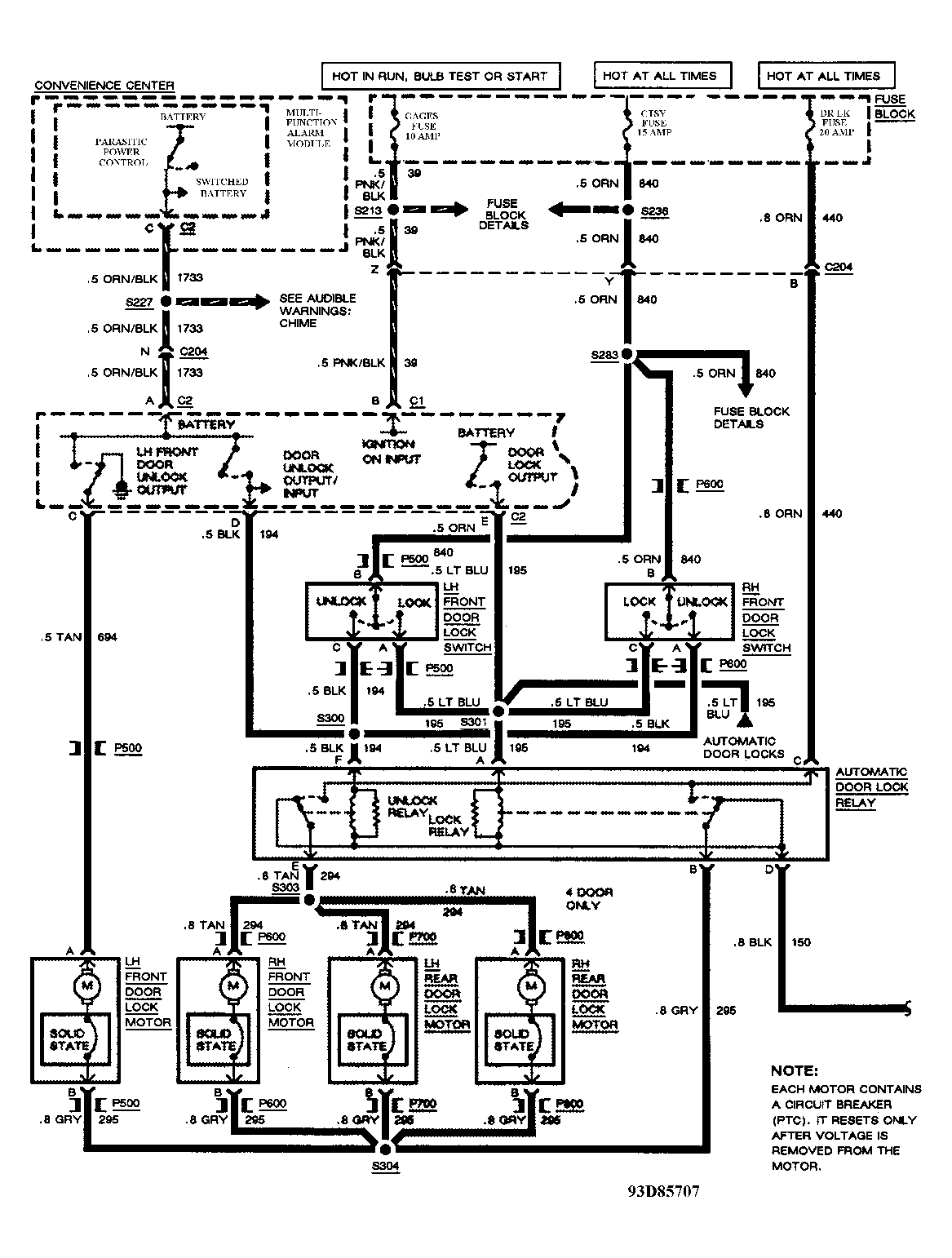

Fig 4: Wiring Diag. (Century, Cutlass Ciera, Cutlass Cruiser 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

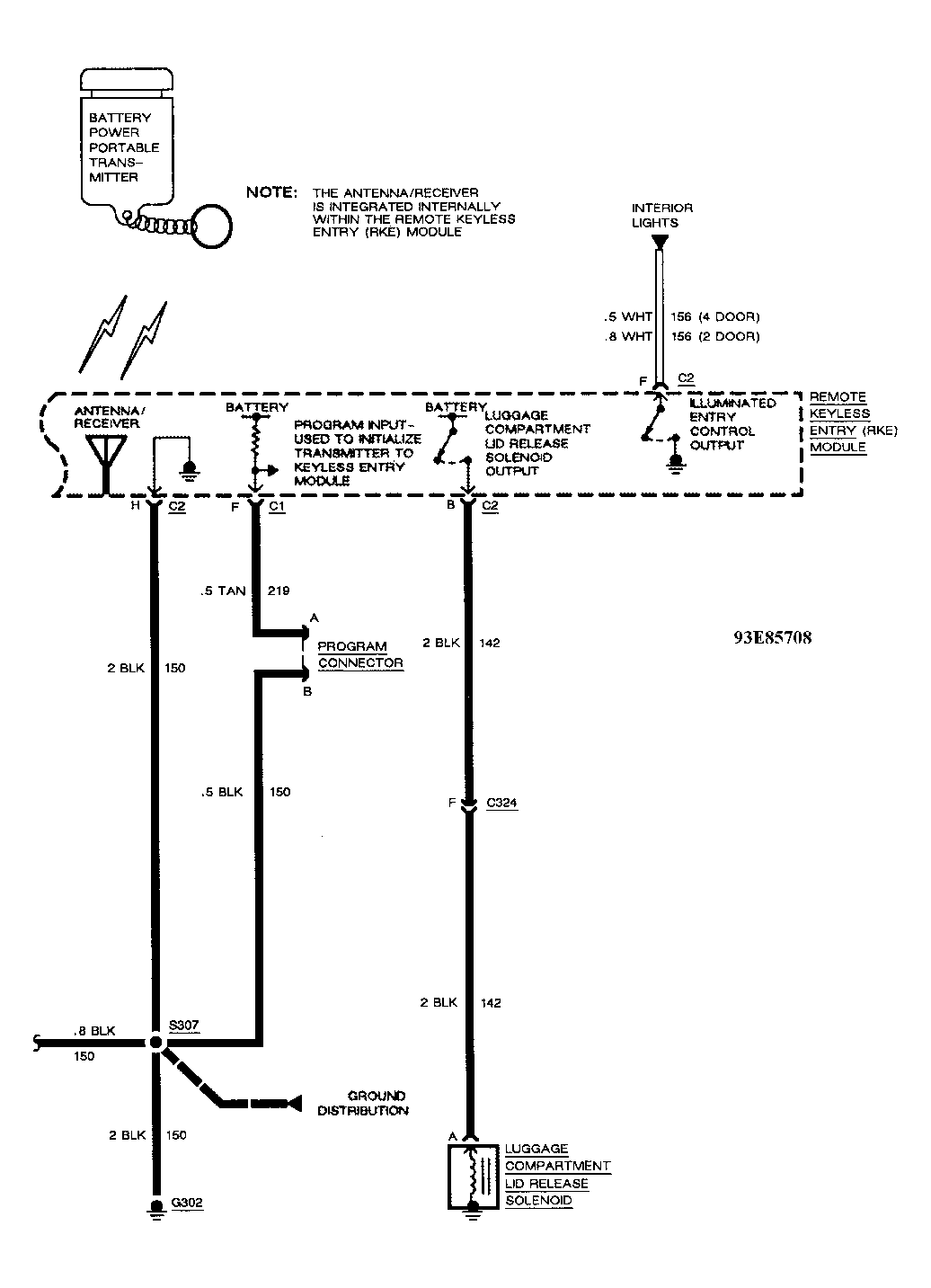

Fig 5: Wiring Diag. (Century, Cutlass Ciera, Cutlass Cruiser 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

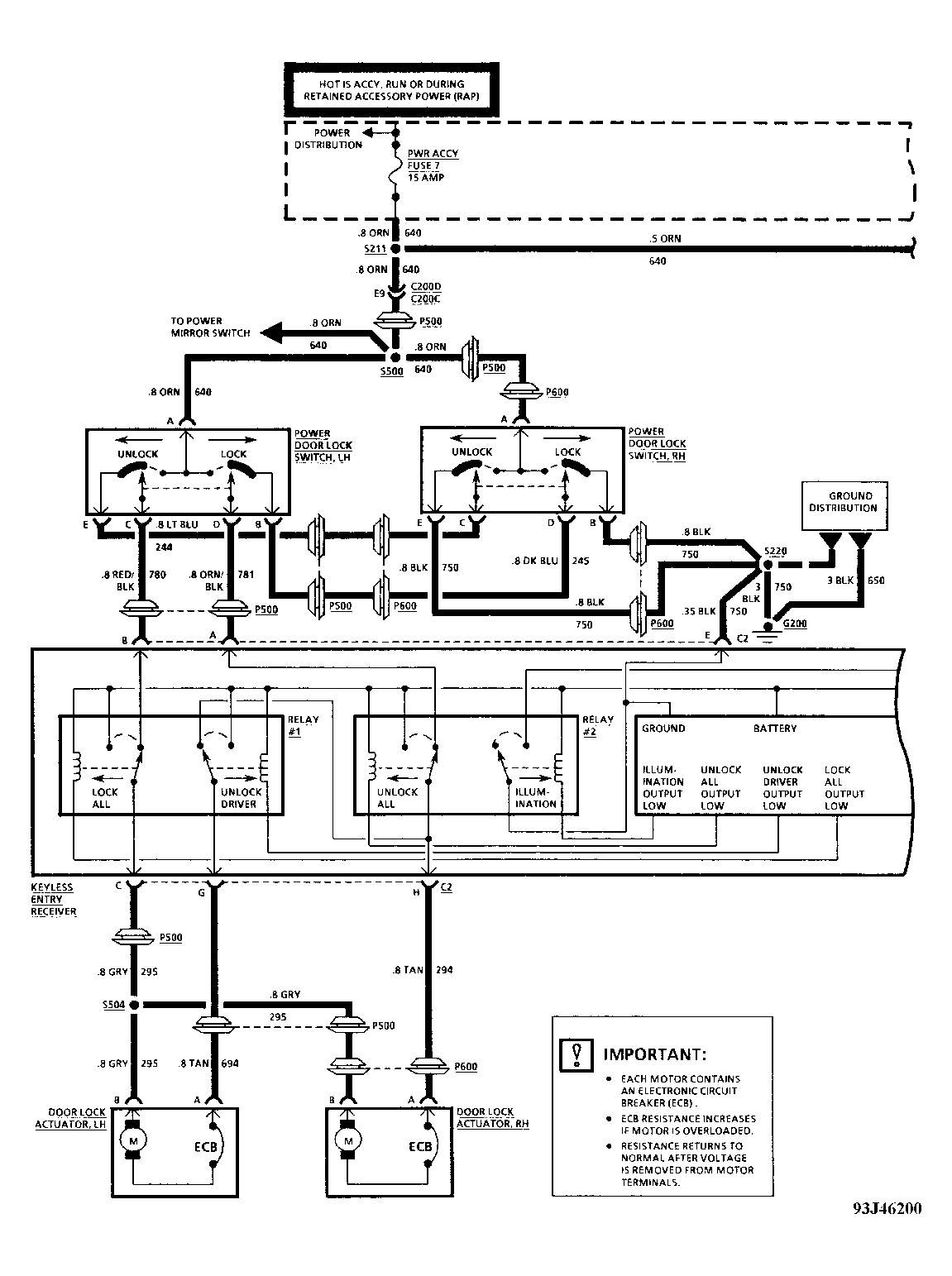

Fig 6: Wiring Diagram (Firebird - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

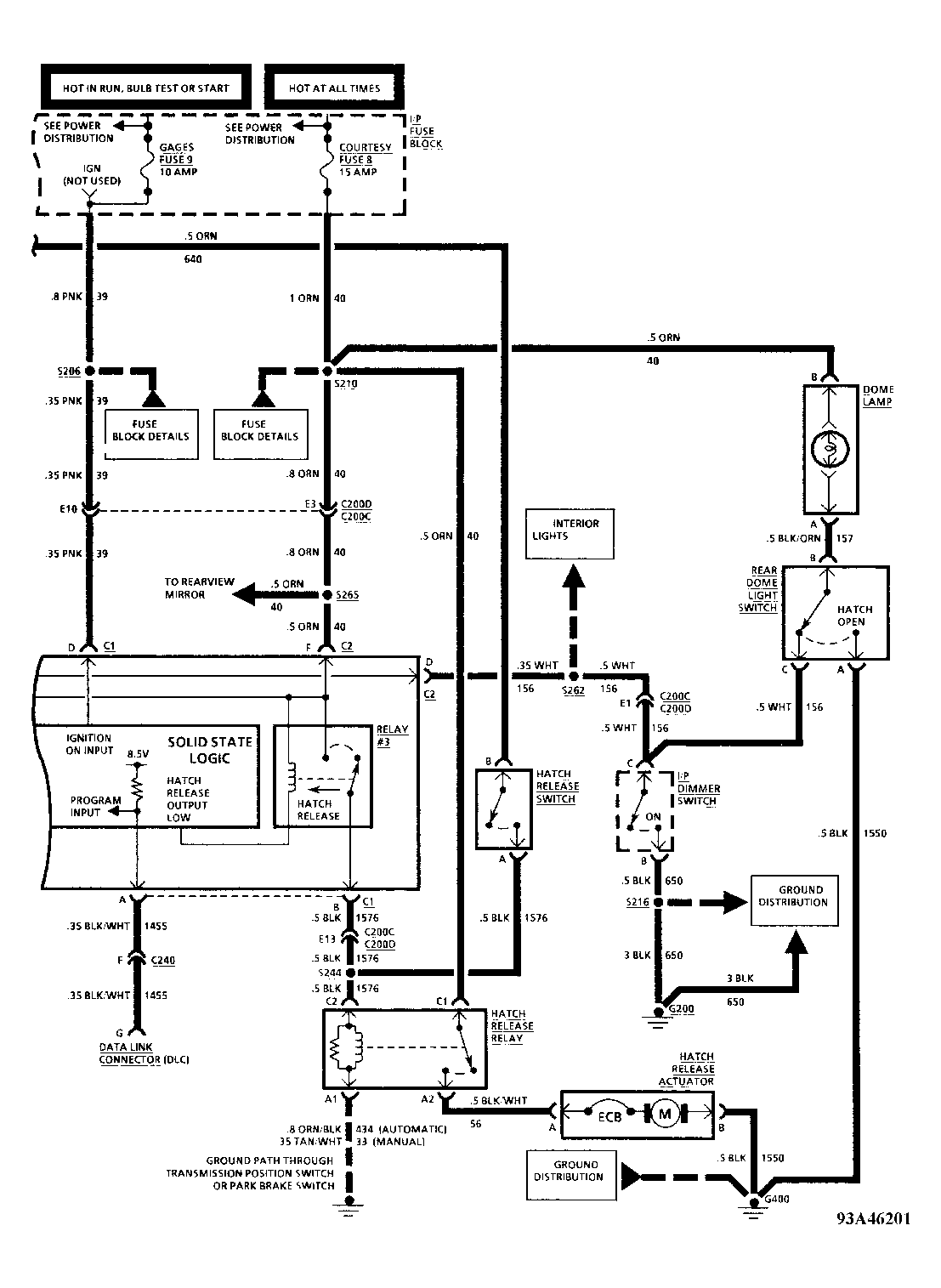

Fig 7: Wiring Diagram (Firebird - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.
