Wiring Diagrams

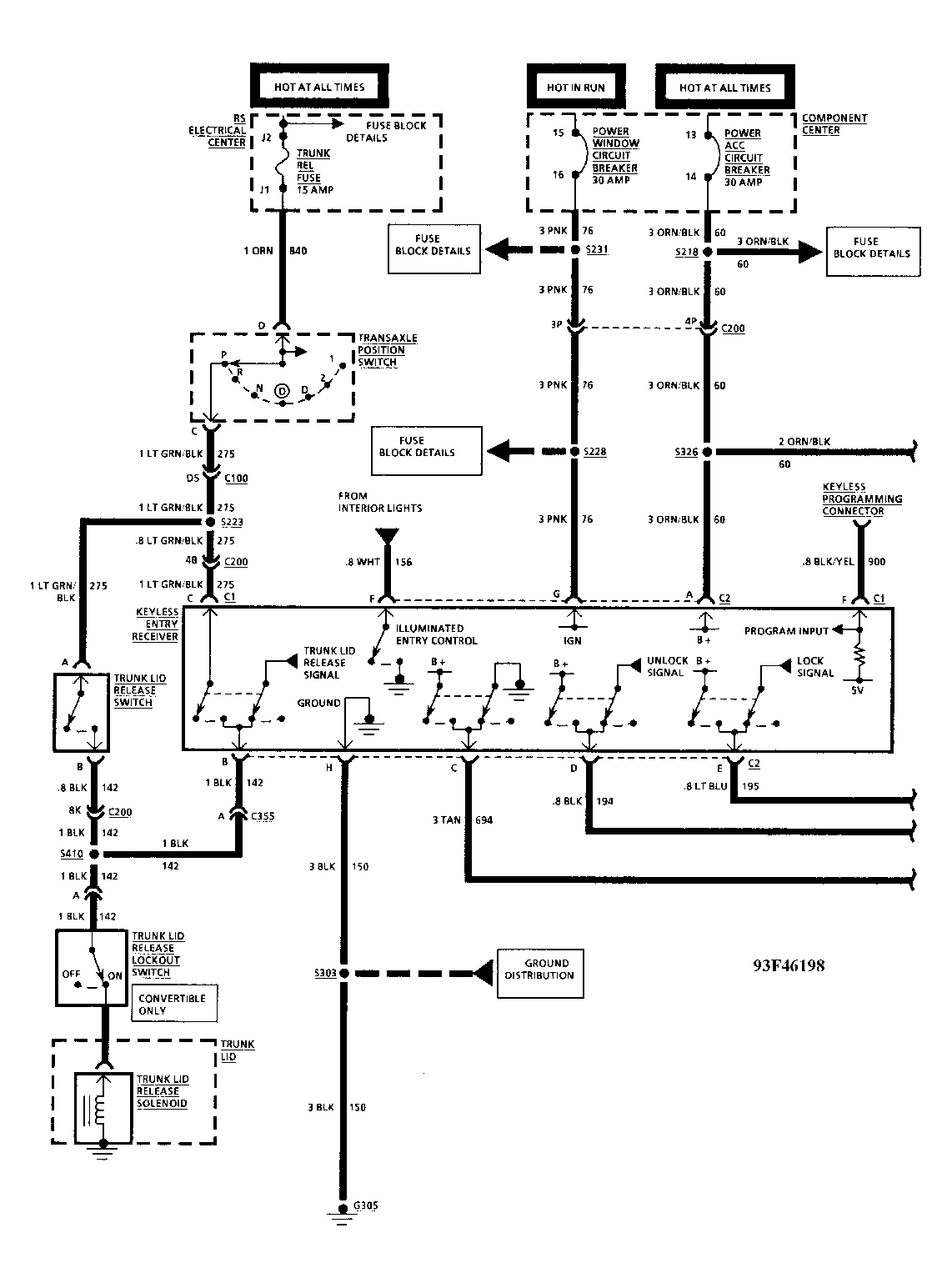

Fig 1: Wiring Diagram (1 Of 2)
G93F46198Courtesy of GENERAL MOTORS CORP.

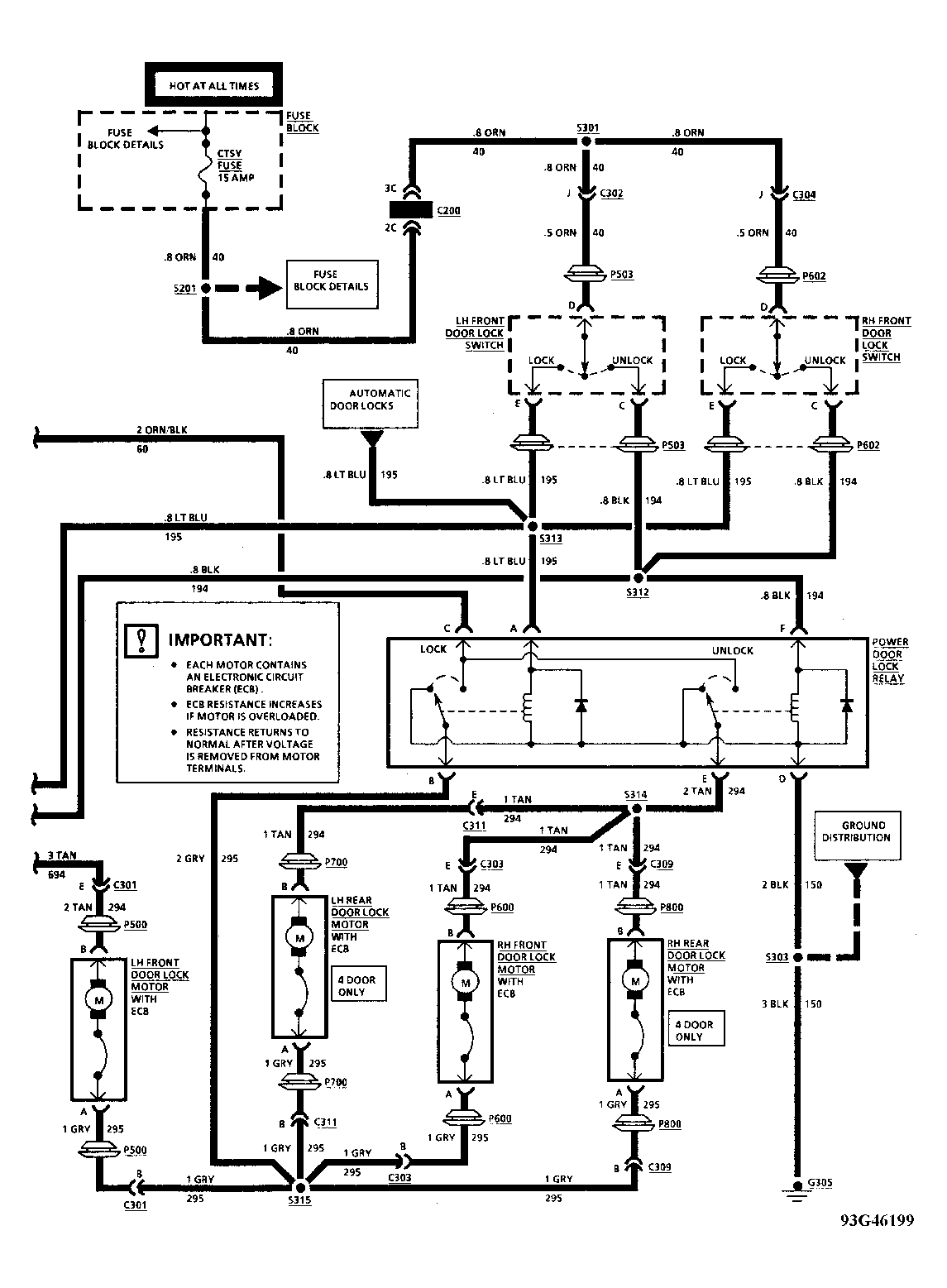

Fig 2: Wiring Diagram (2 Of 2)
G93G46199Courtesy of GENERAL MOTORS CORP.
