Idle Air Control (IAC) Valve

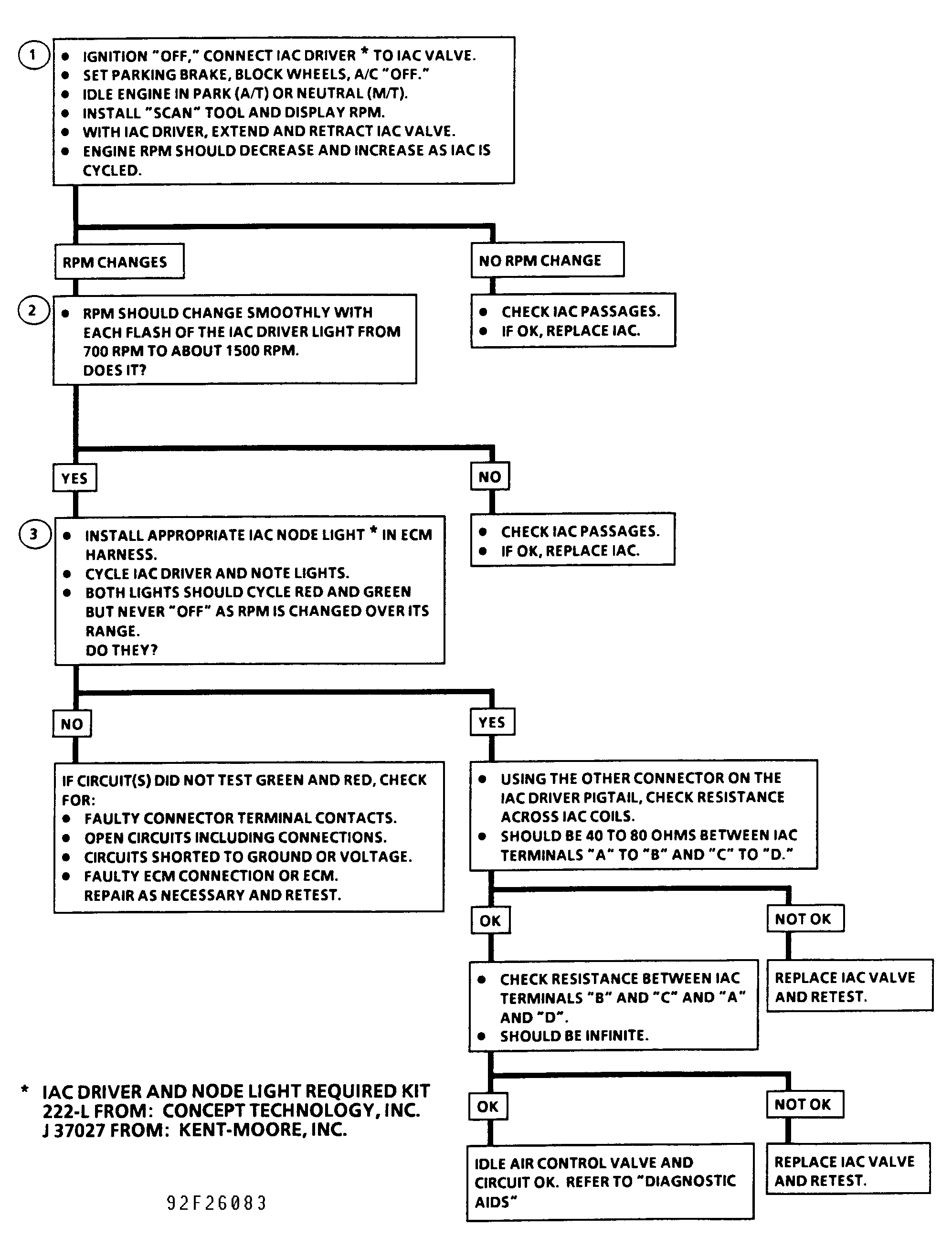

Use wiring diagram and DIAGNOSTIC CHART C-2C to diagnose and service IAC valve. See Figure . For additional fuel system testing, see BASIC TESTING article in this section.
