Diagnostic Aids

Check for poor connections at PCM and at transmission connector.

Fig 1: Code 93 Schematic (3.4L) Pressure Control Solenoid

G94D31966

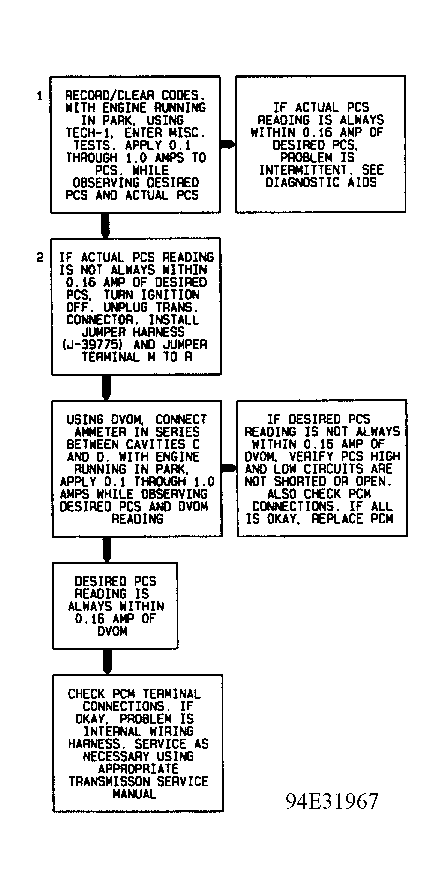

Fig 2: Code 93 Flow Chart (3.4L) Pressure Control Solenoid

G94E31967
