Diagnostic Aids

Inspect harness and all related connections, including PCM connections. These may cause an intermittent code to set.

Fig 1: Code 91 Schematic (5.7L) Skip Shift Light
G94F35175

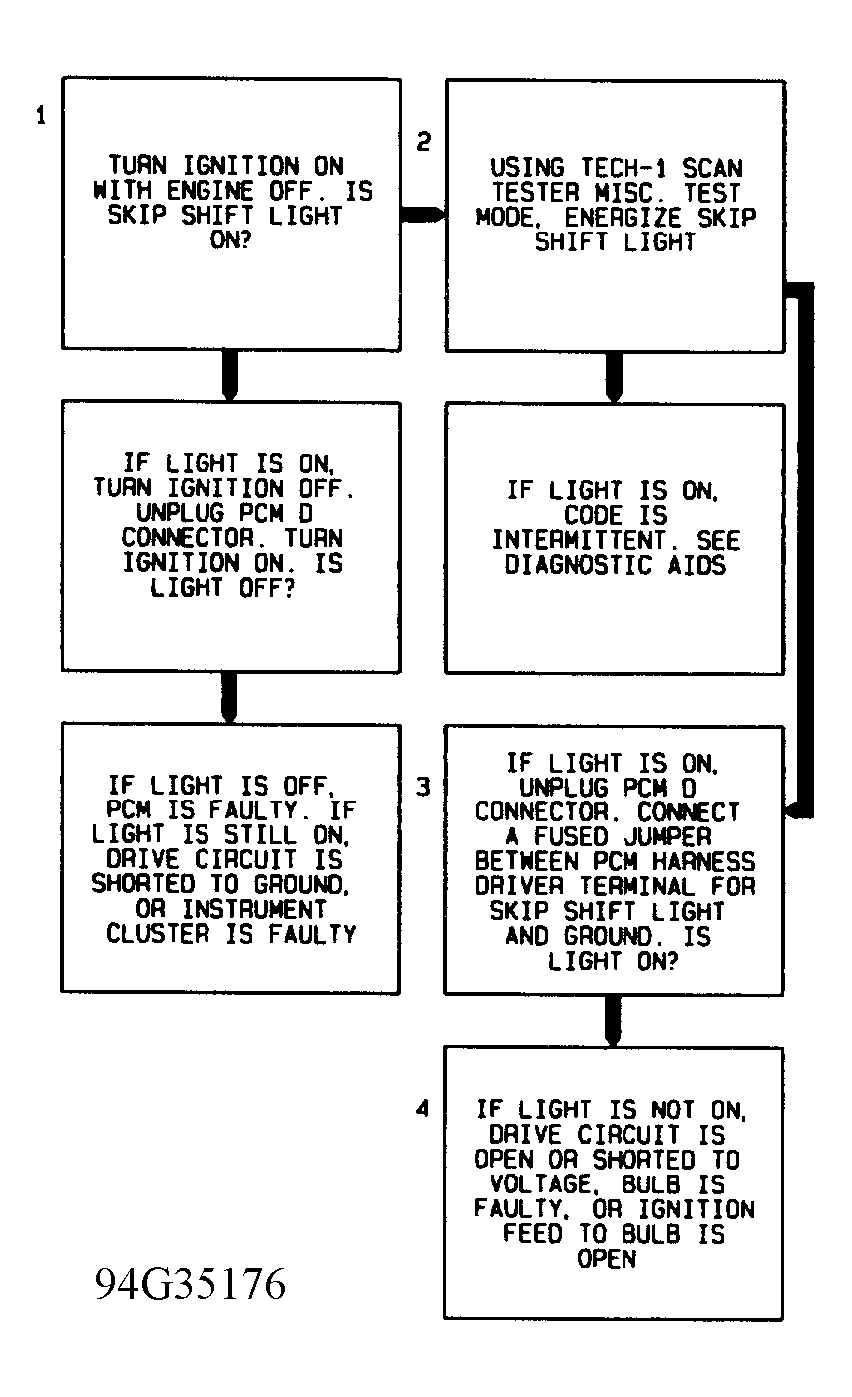

Fig 2: Code 91 Flow Chart (5.7L) Skip Shift Light
G94G35176
