Diagnostic Aids

Inspect harness and all related connections, including PCM connections.

Fig 1: Code 99 Schematic (5.7L) Tach Output Circuit

G94H35185

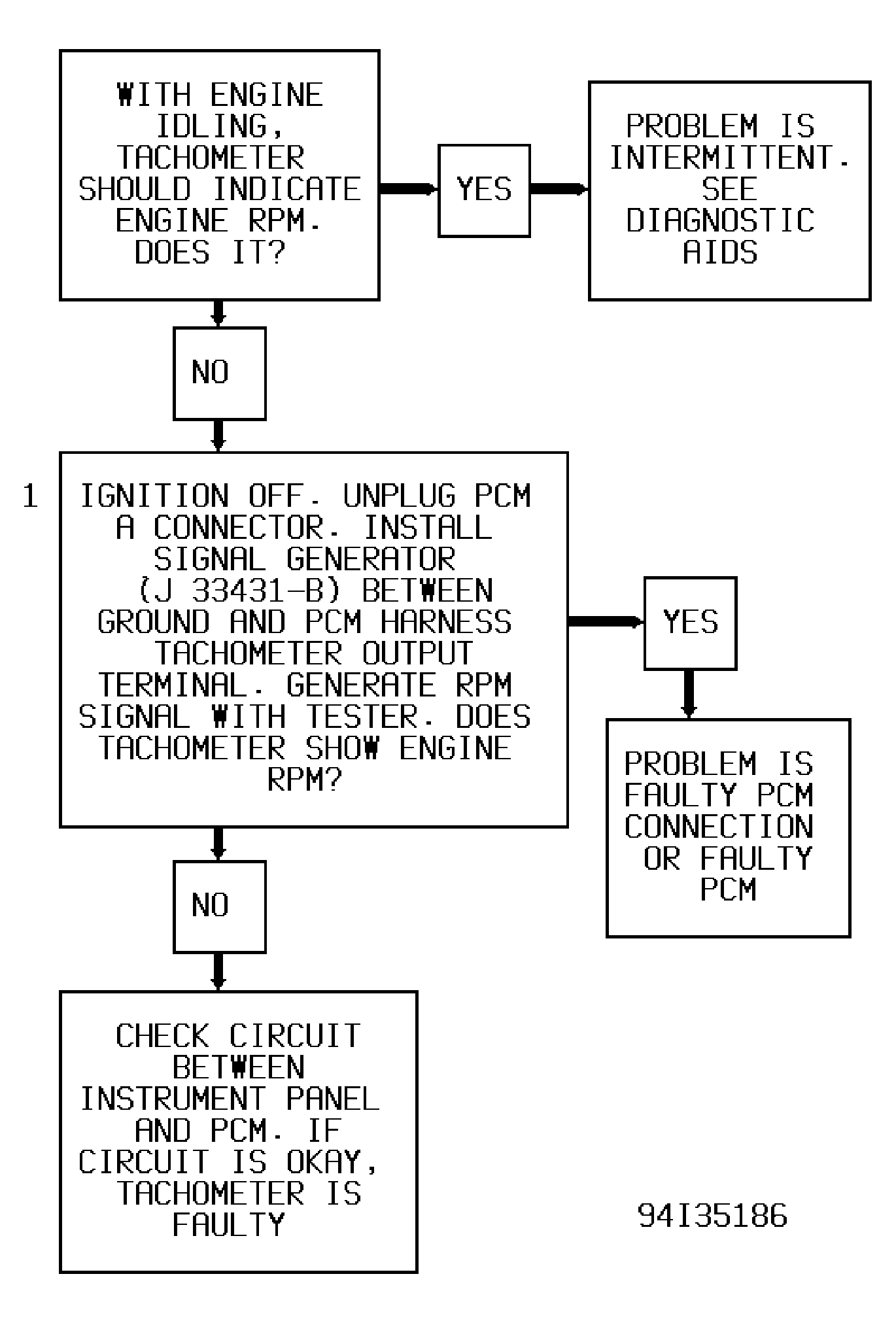

Fig 2: Code 99 Flow Chart (5.7L) Tach Output Circuit

G94I35186
