Engine Controls - System/Component Tests - 3.4L
›
Component Locations
Component Locations

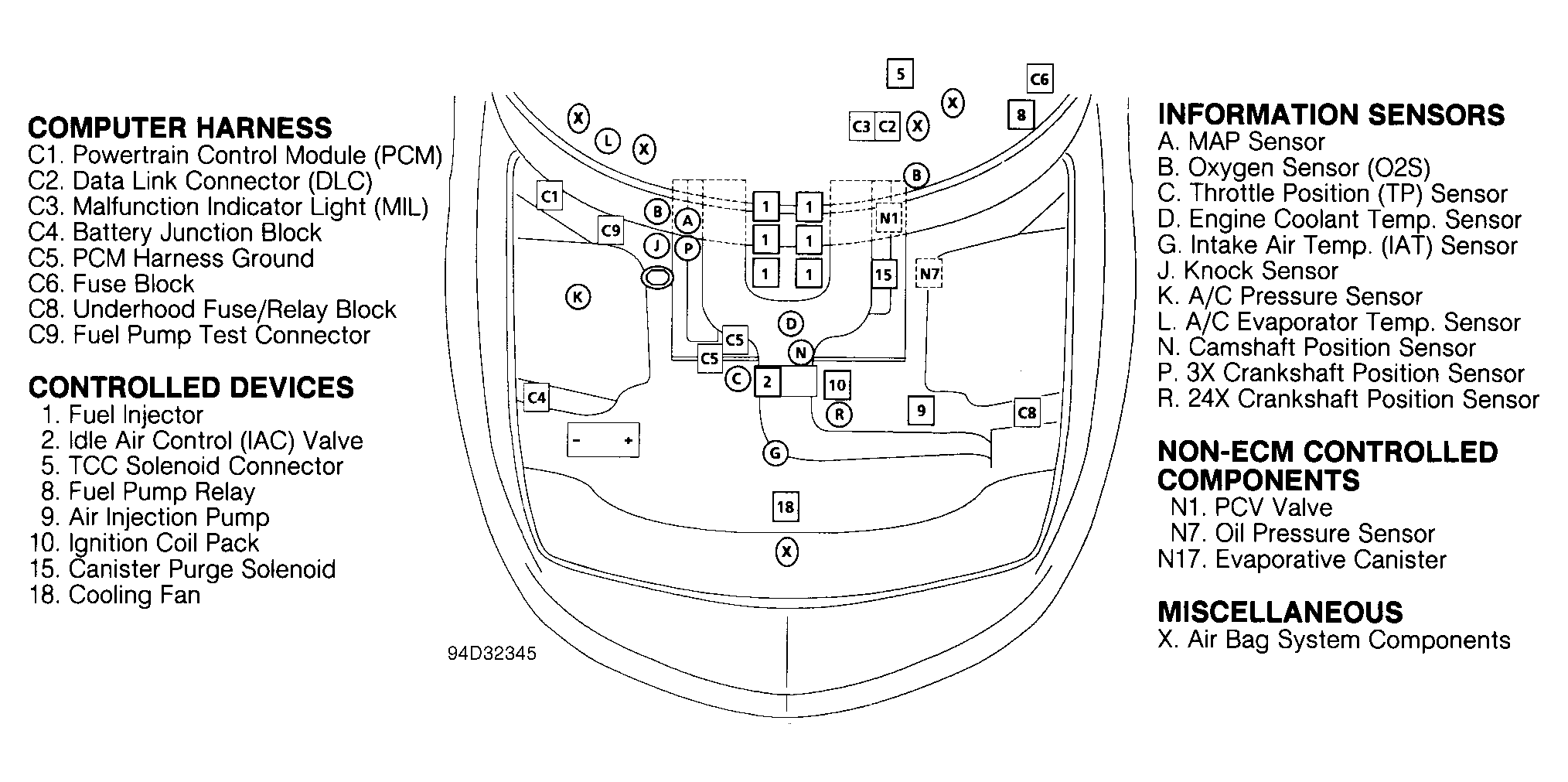

Fig 1: Component Locations (3.4L VIN S)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
