Diagnostic Aids

Check for poor connections at PCM and at transmission connector.

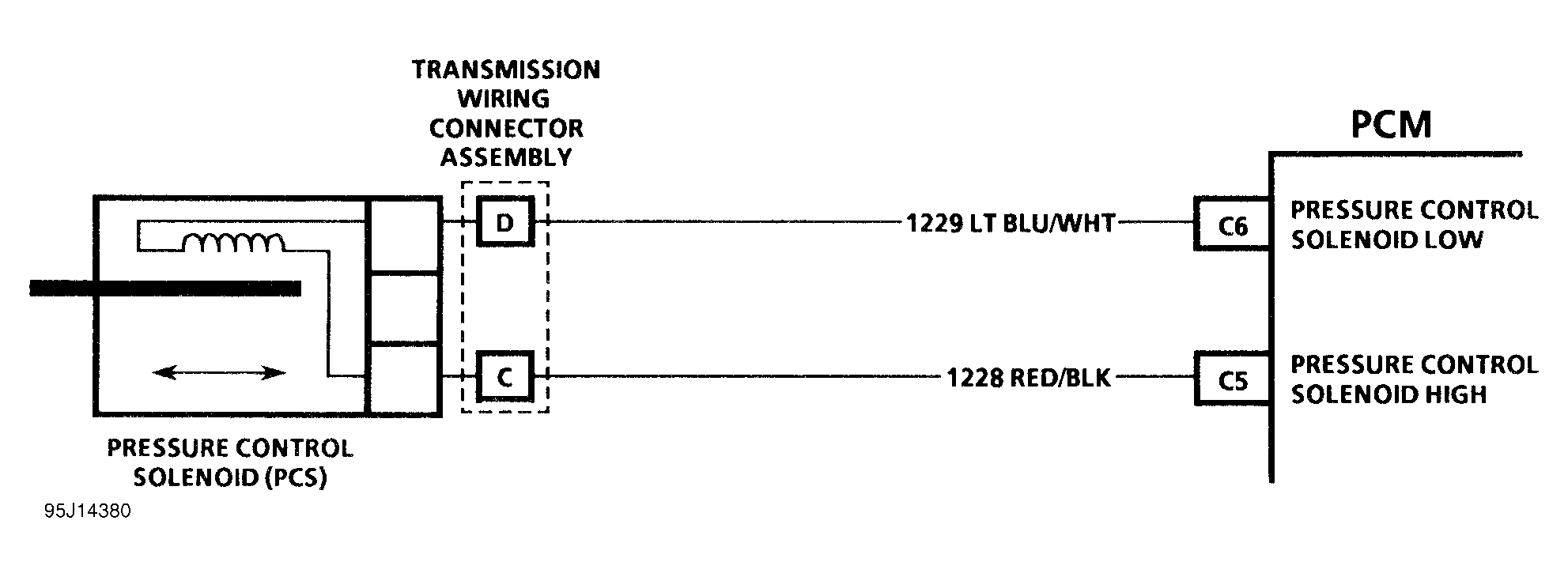

Fig 1: Code 93 Schematic (3.4L (VIN S)) Pressure Control Solenoid

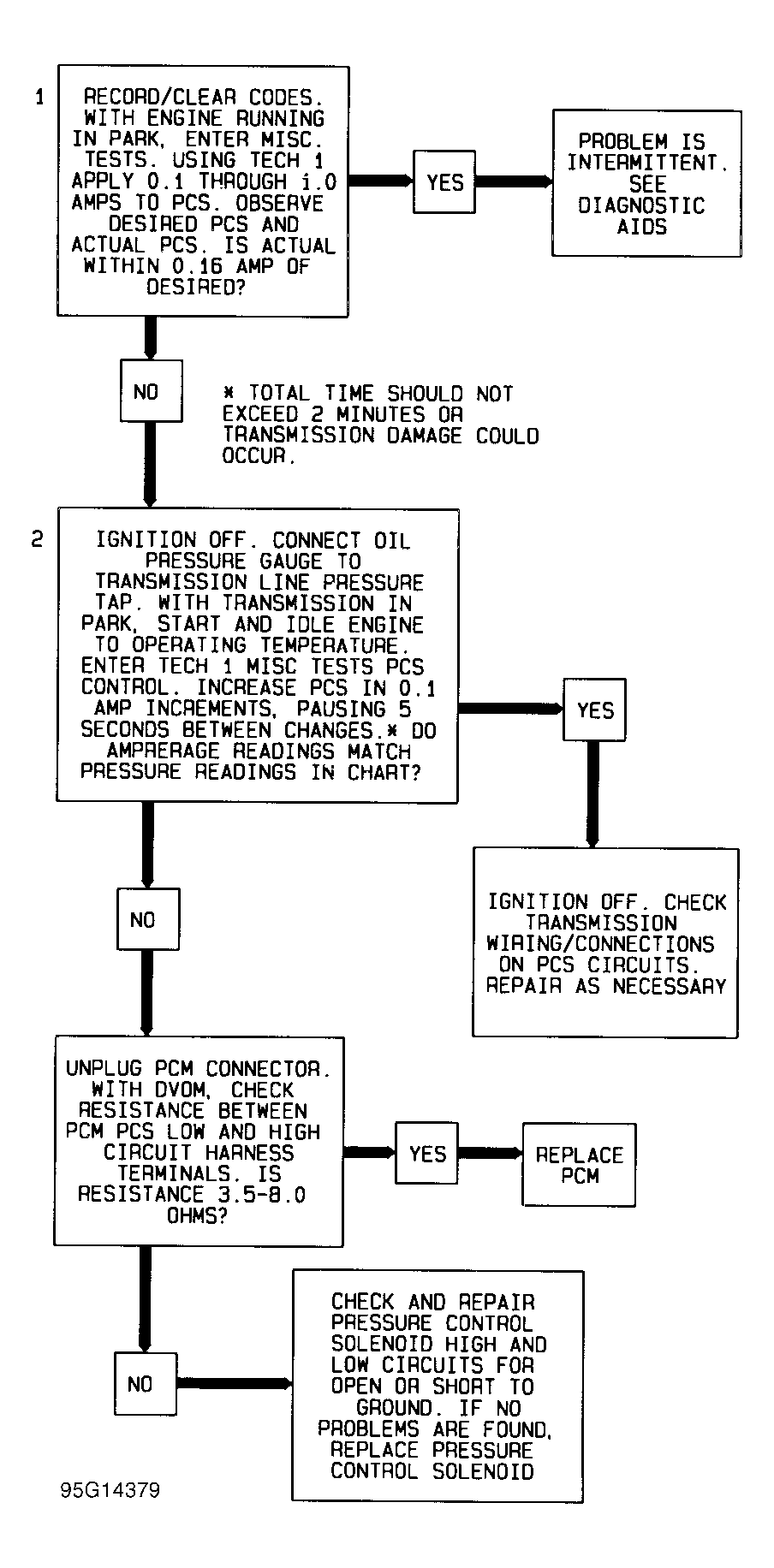

Fig 2: Code 93 Diagnostic Flow Chart (3.4L (VIN S)) Pressure Control Solenoid
