Diagnostic Aids

An intermittent cam reference signal can be caused by poor connection, cracked sensor or internal engine problems.

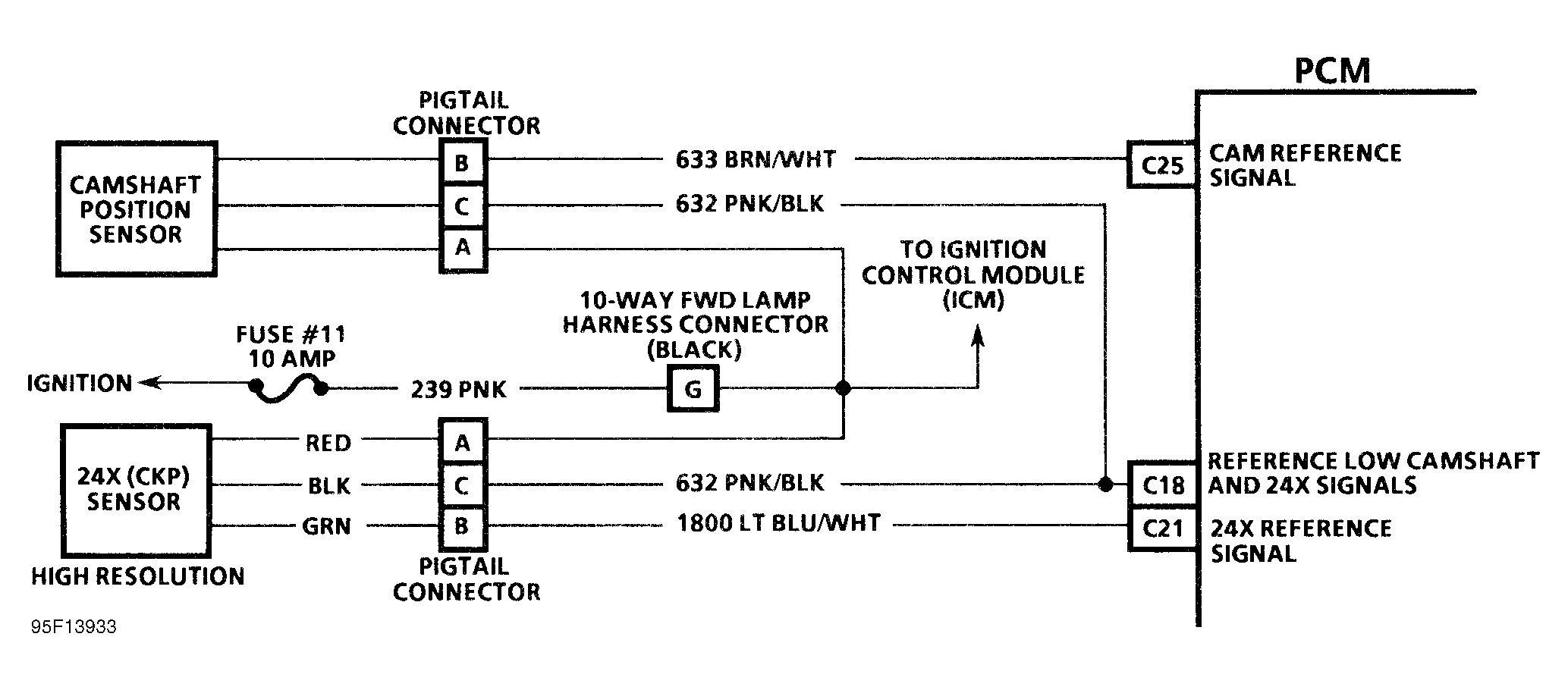

Fig 1: Code 17 Schematic (3.4L (VIN S)) Camshaft Sensor Error

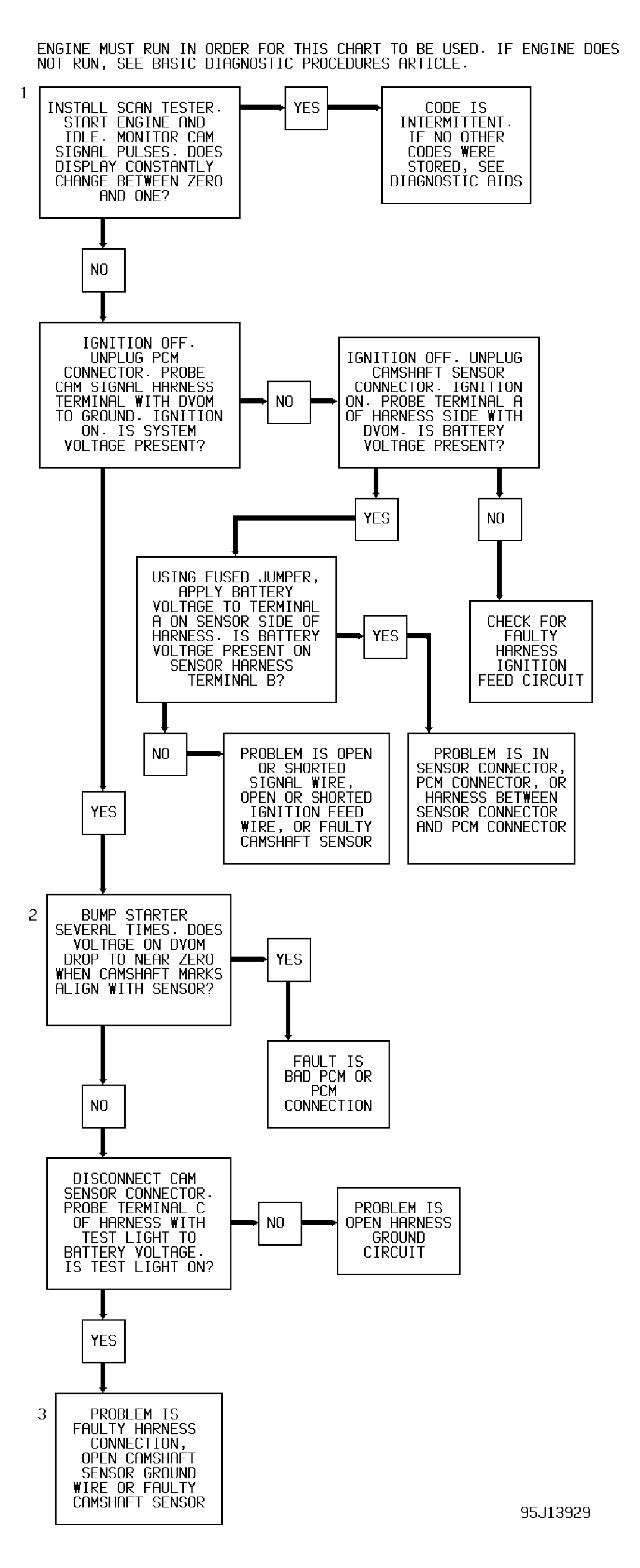

Fig 2: Code 17 Diagnostic Flow Chart (3.4L (VIN S)) Camshaft Sensor Error
