Home › Pontiac › 1995 › Sunfire GT, Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - System/Component Tests - 2.2L › Component Locations

Component Locations

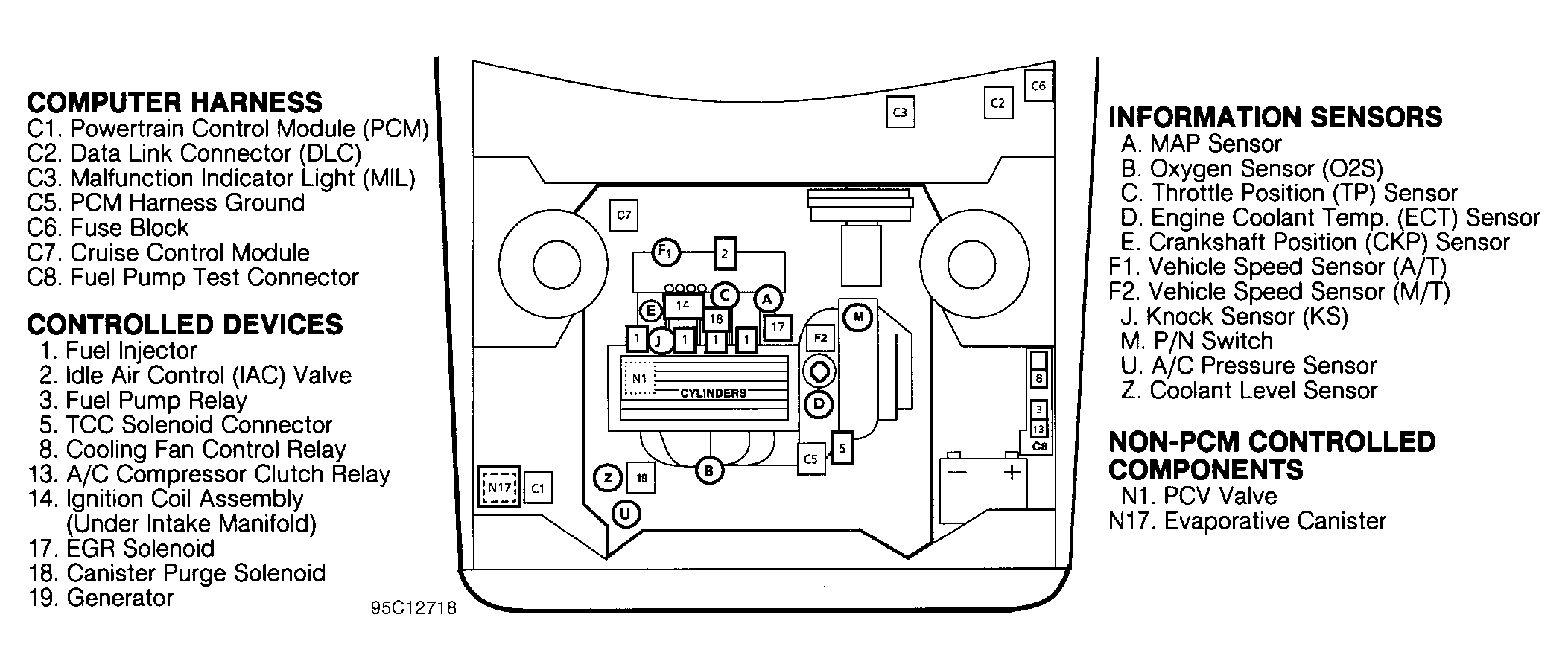

Fig 1: Component Locations (2.2L VIN 4)
G95C12718Courtesy of GENERAL MOTORS CORP.
