Engine Controls - System/Component Tests - 2.3L (W/O OBD-II)
›
Component Locations
Component Locations

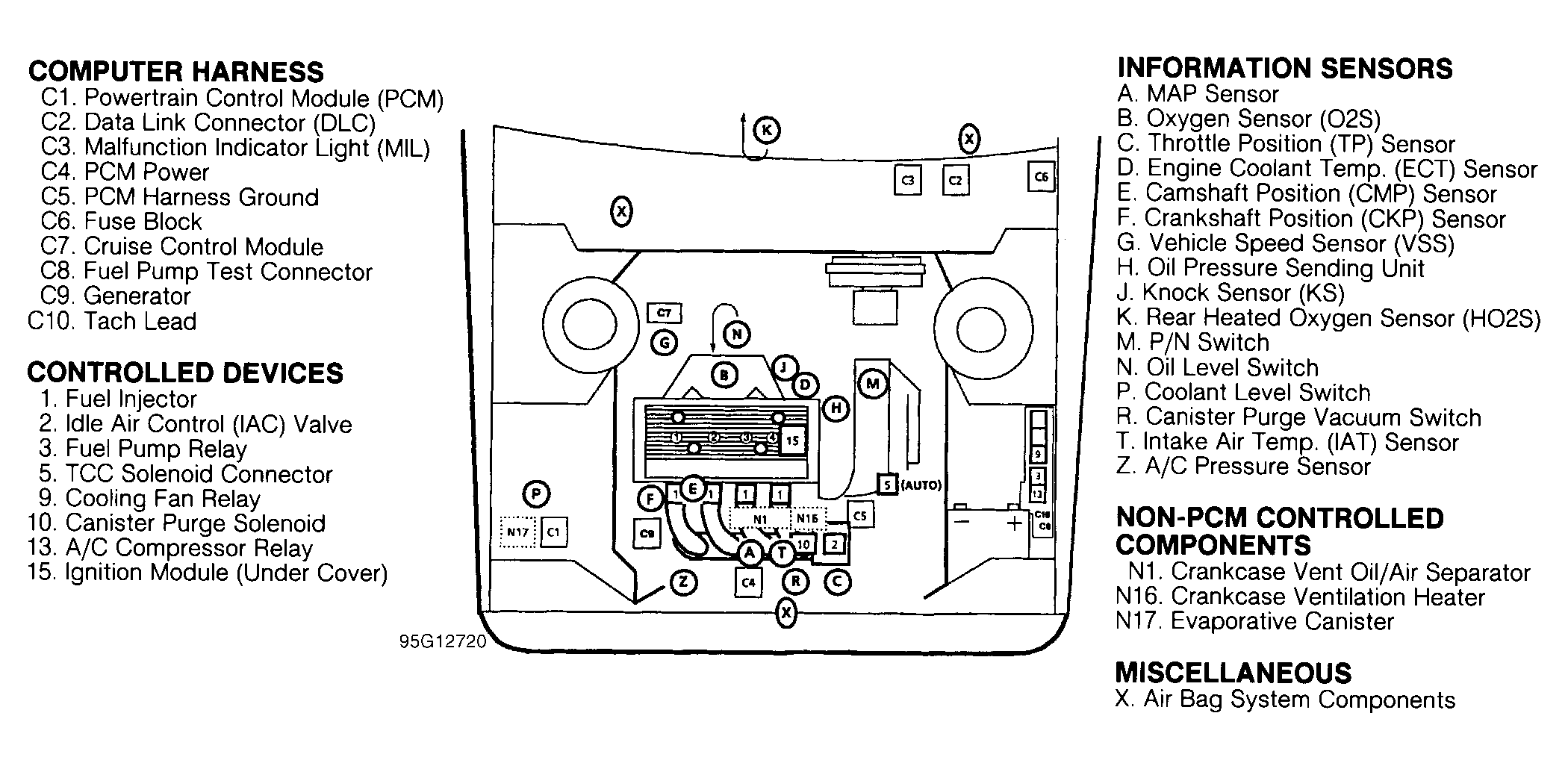

Fig 1: Component Locations (2.3L M/T)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
