PCM Connector C2

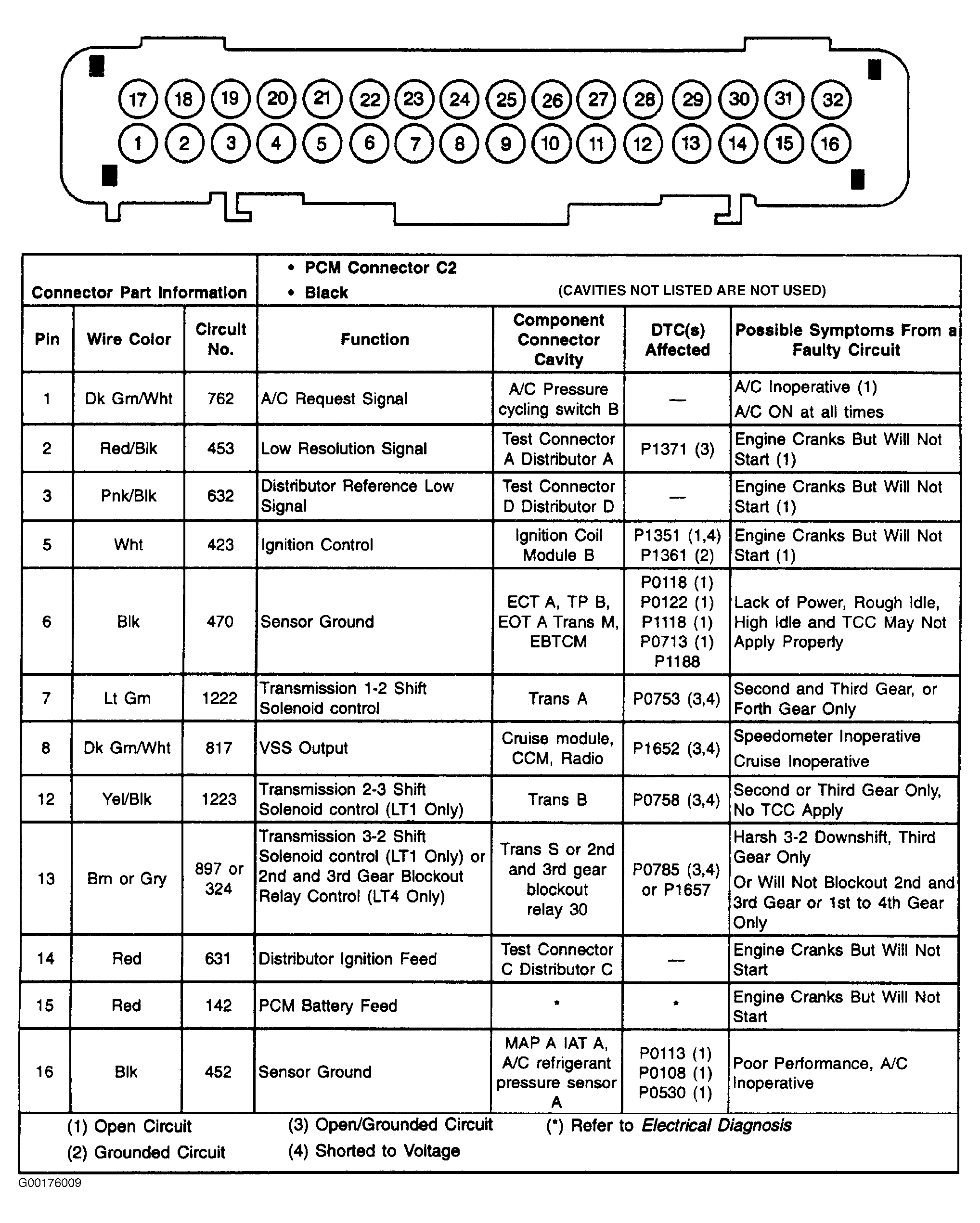

Fig 1: PCM C2 32-Pin Connector (Black) - Terminal Identification & Legend (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

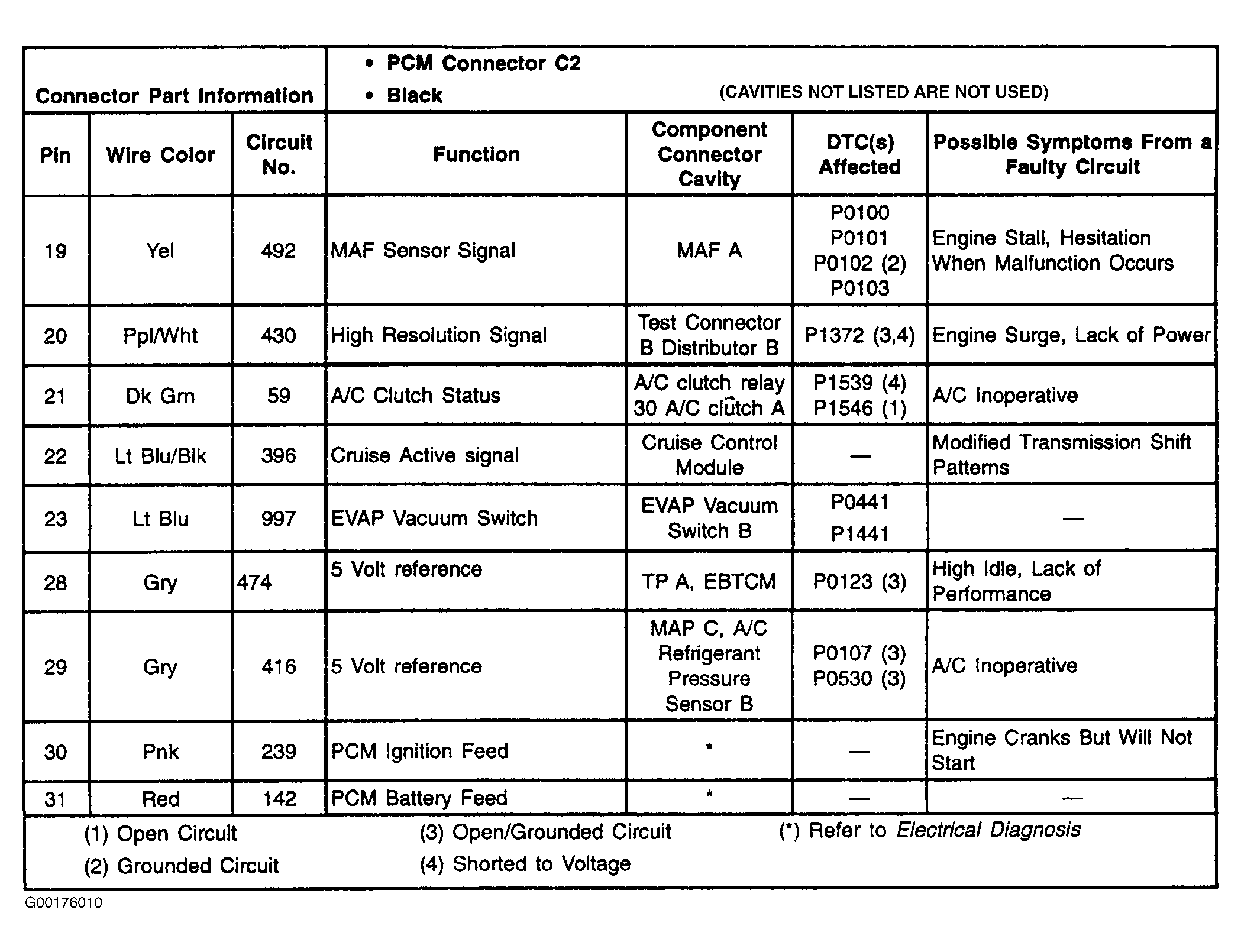

Fig 2: PCM C2 32-Pin Connector (Black) - Legend (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
