Engine Controls - Tests W/Codes - 3.1L Engine
›
Pcm Connectors
›
Grand PRIX
›
Connector C2
Connector C2
NOTE:
For terminal identification, see
Figure
.

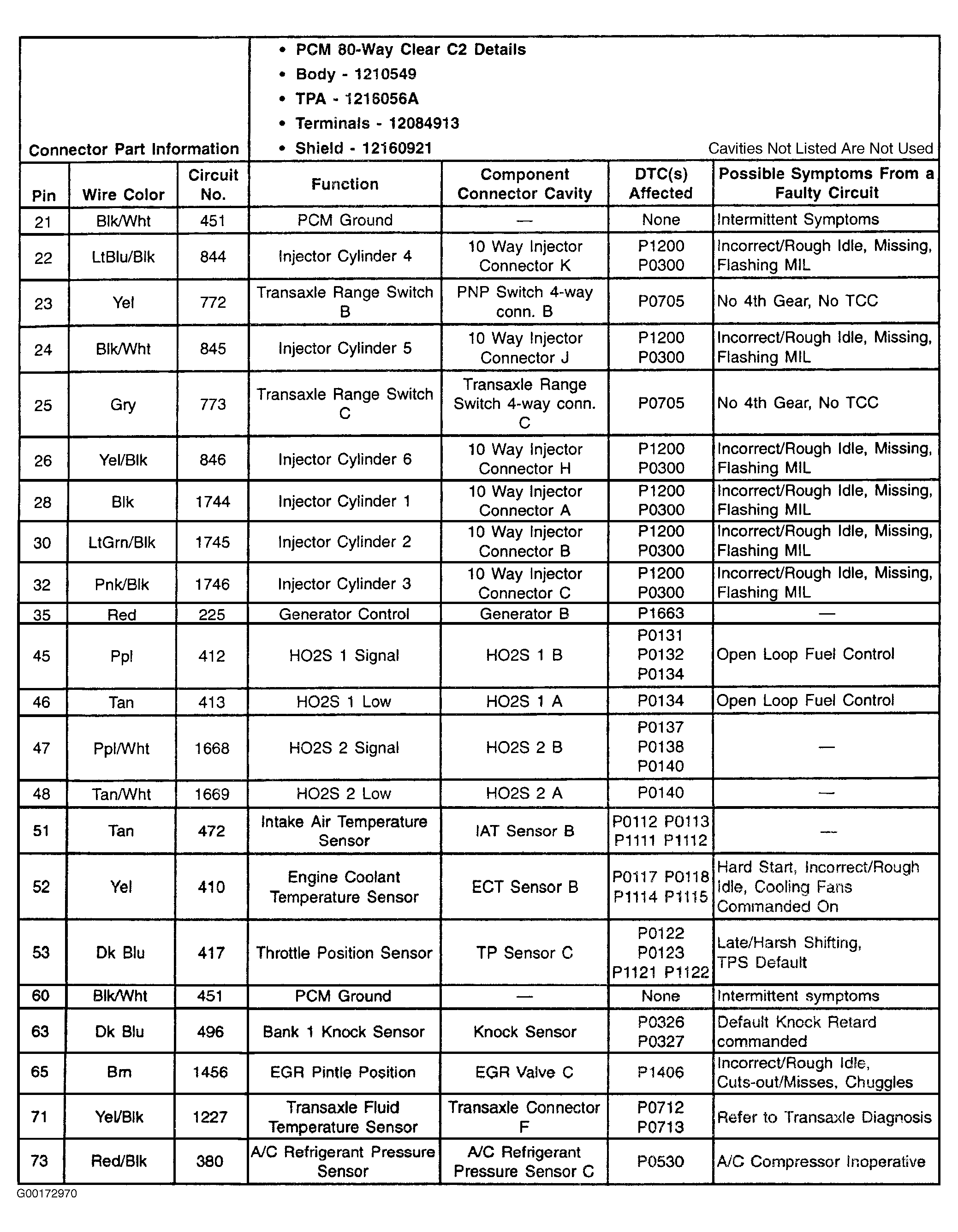

Fig 1: PCM 80-Pin Connector C2 (Clear) - Legend (Grand Prix) - (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

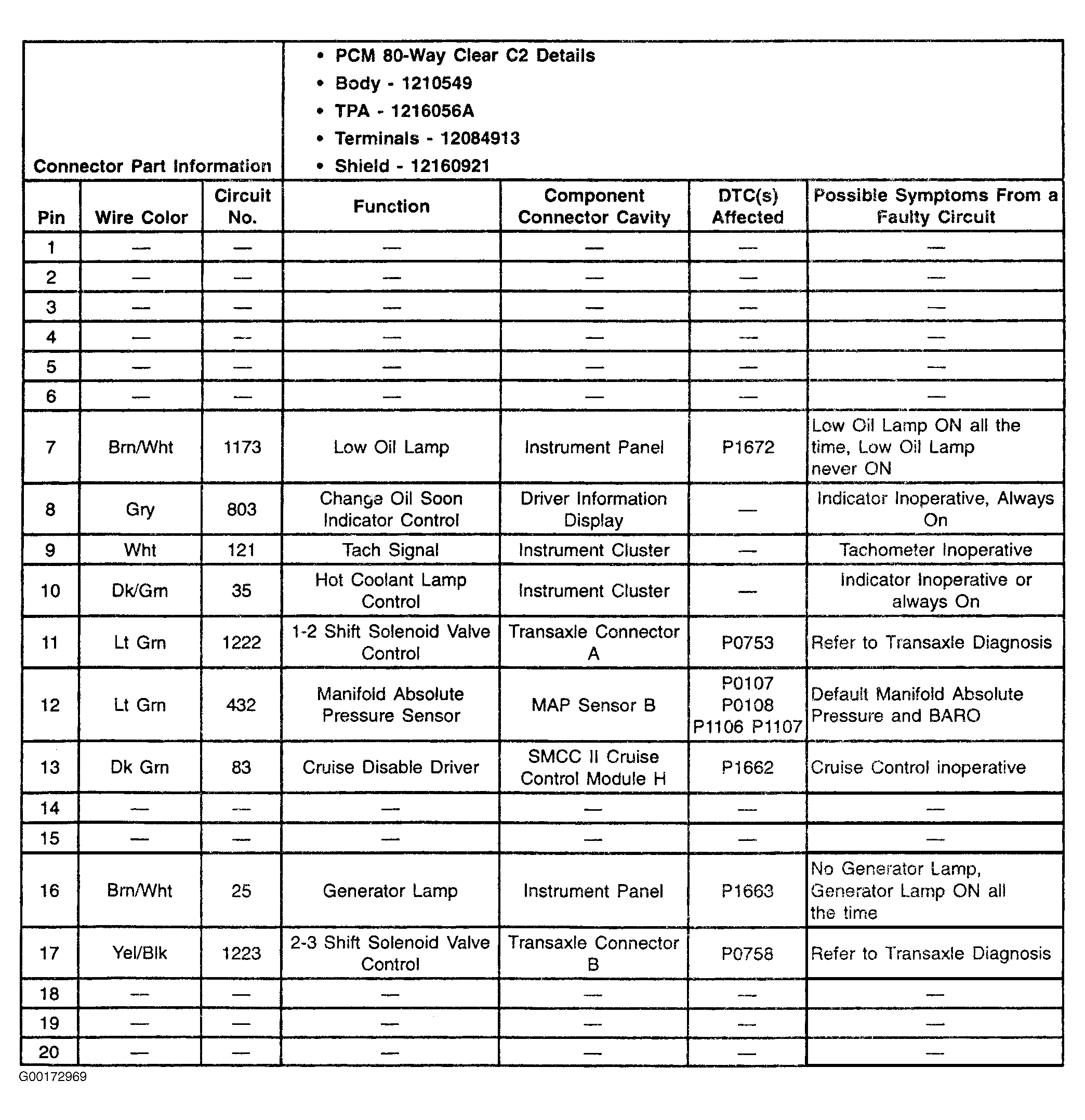

Fig 2: PCM 80-Pin Connector C2 (Clear) - Legend (Grand Prix) - (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
