Test B: Scan Tool Does Not Communicate With Class 2 Serial Data Line

Refer to flowchart. See Fig 1 .

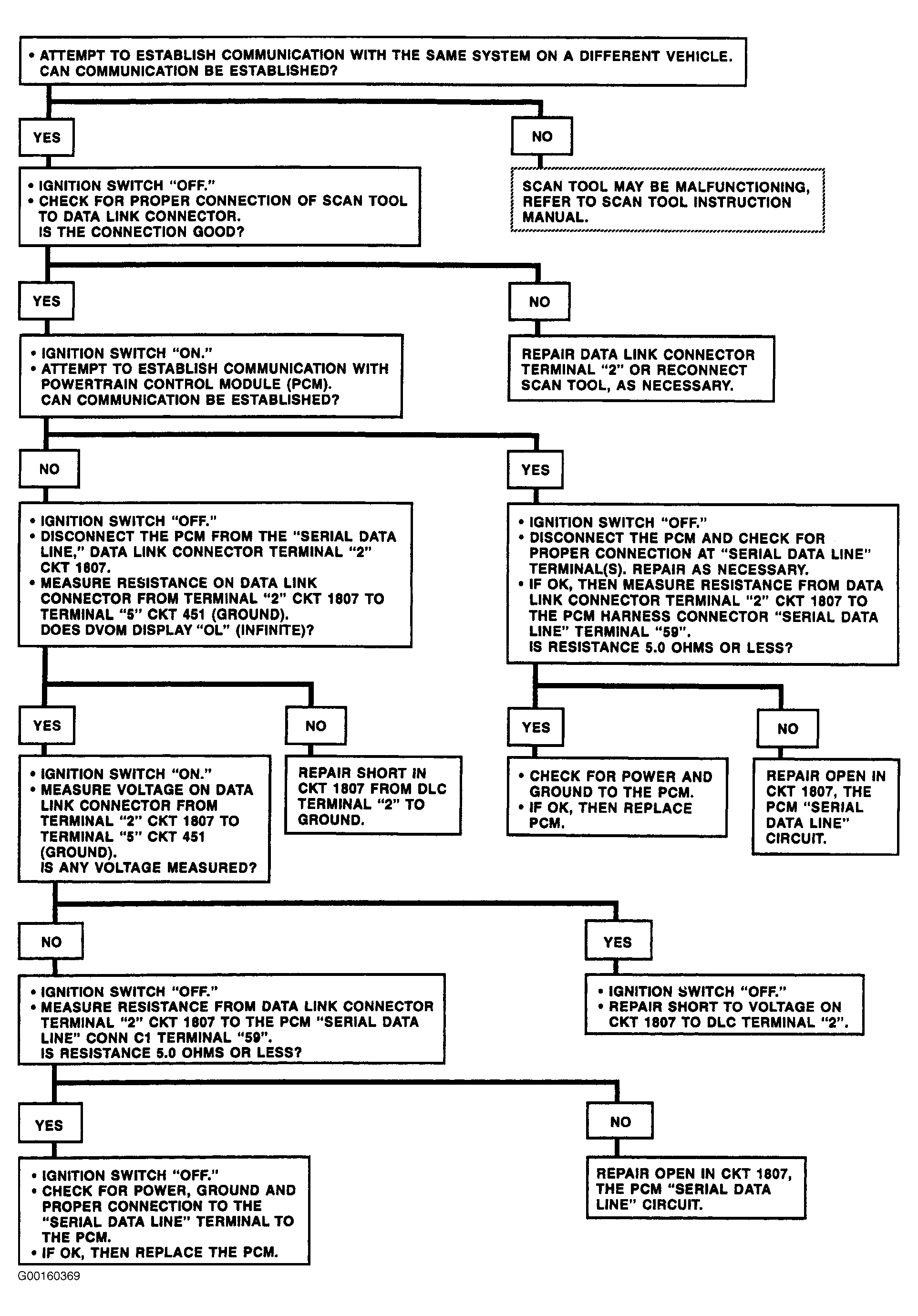

Fig 1: Scan Tool Does Not Communicate With Class 2 Serial Data Line

Courtesy of GENERAL MOTORS CORP.
