PCM Connector C2

NOTE: For terminal identification, see Figure.

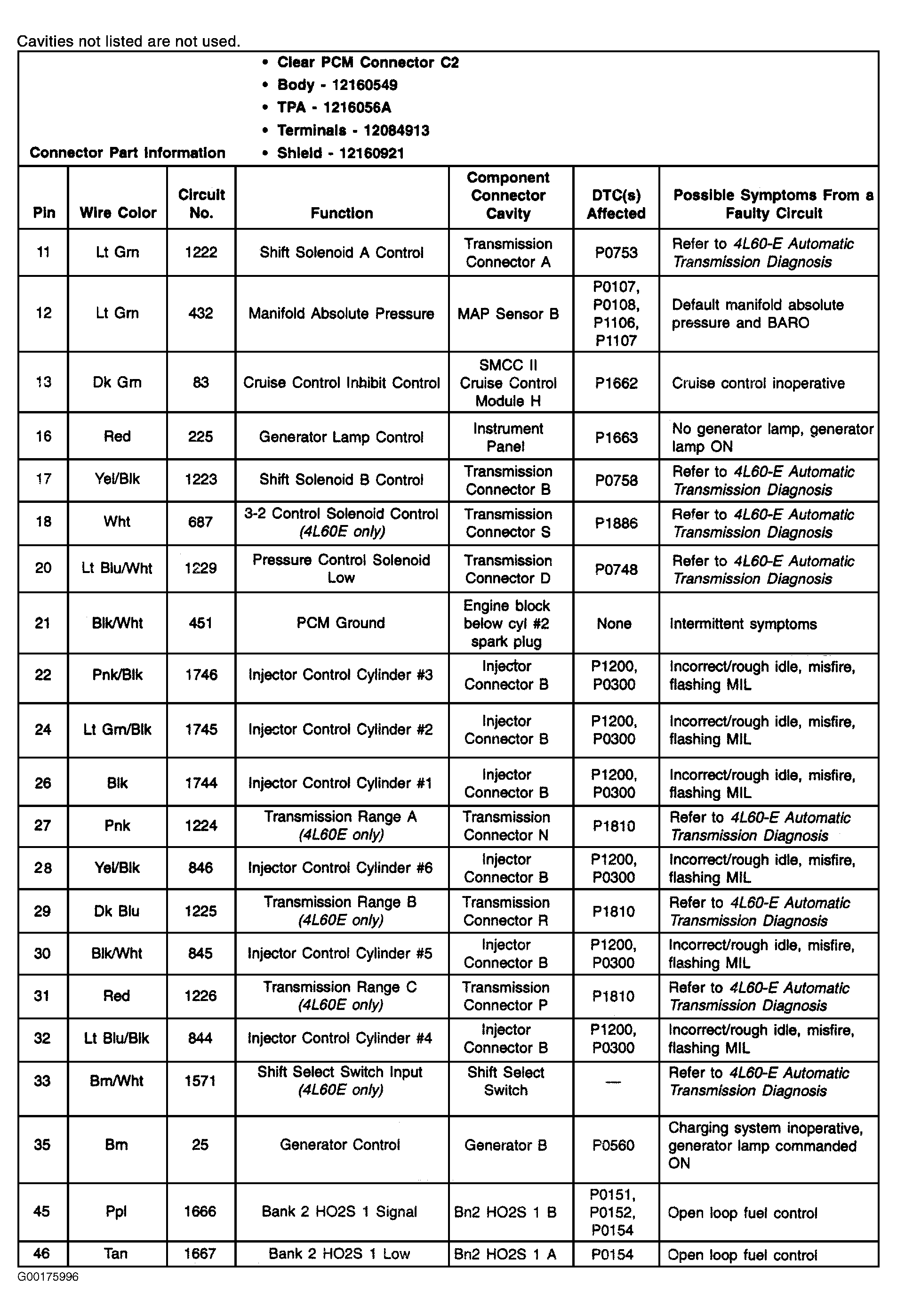

Fig 1: PCM C2 80-Pin Connector (Clear) - Legend (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

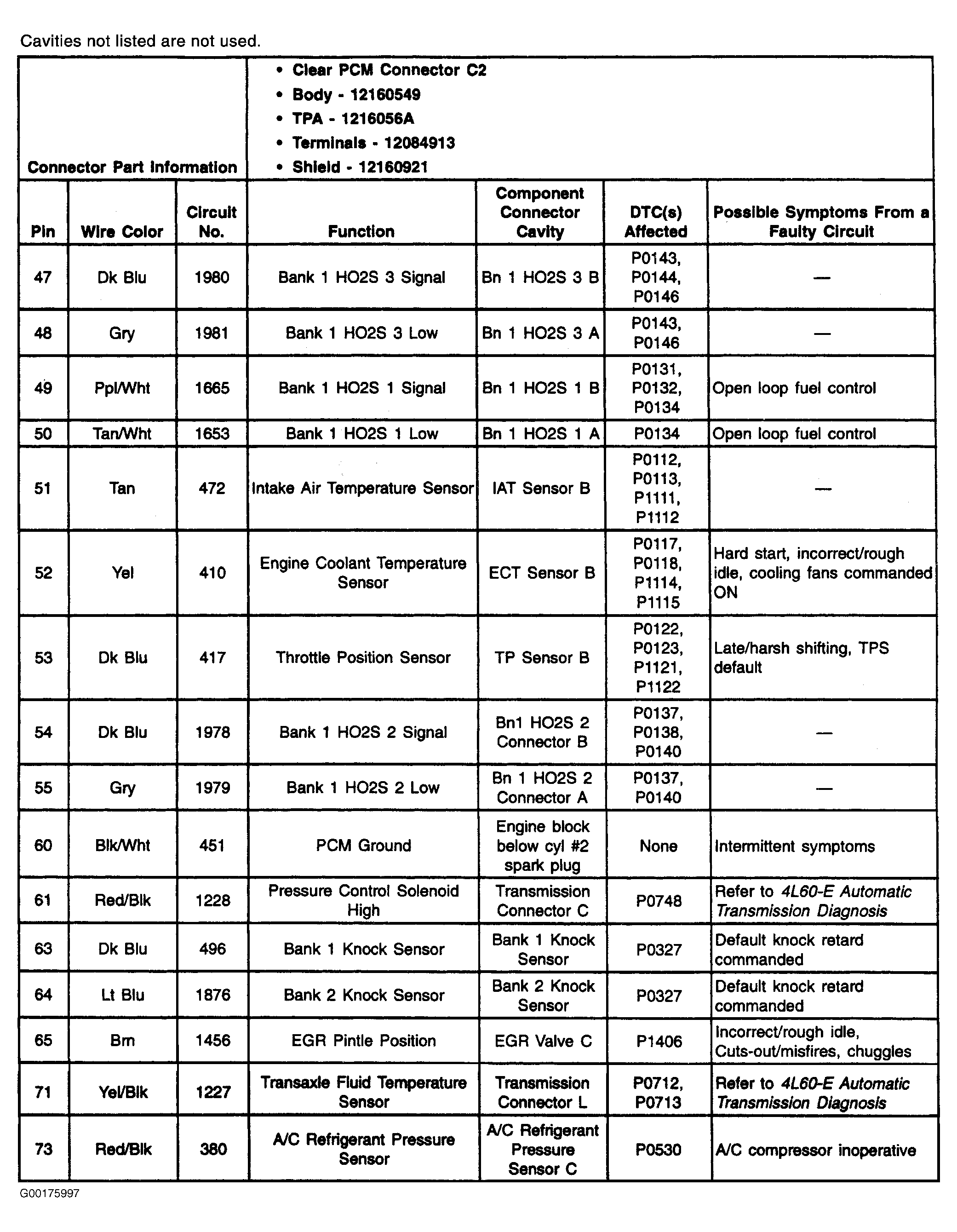

Fig 2: PCM C2 80-Pin Connector (Clear) - Legend (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
