Home › Pontiac › 1997 › Firebird Base, 2D Convertible, Standard › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C405 › C100

C100 To C405: C100

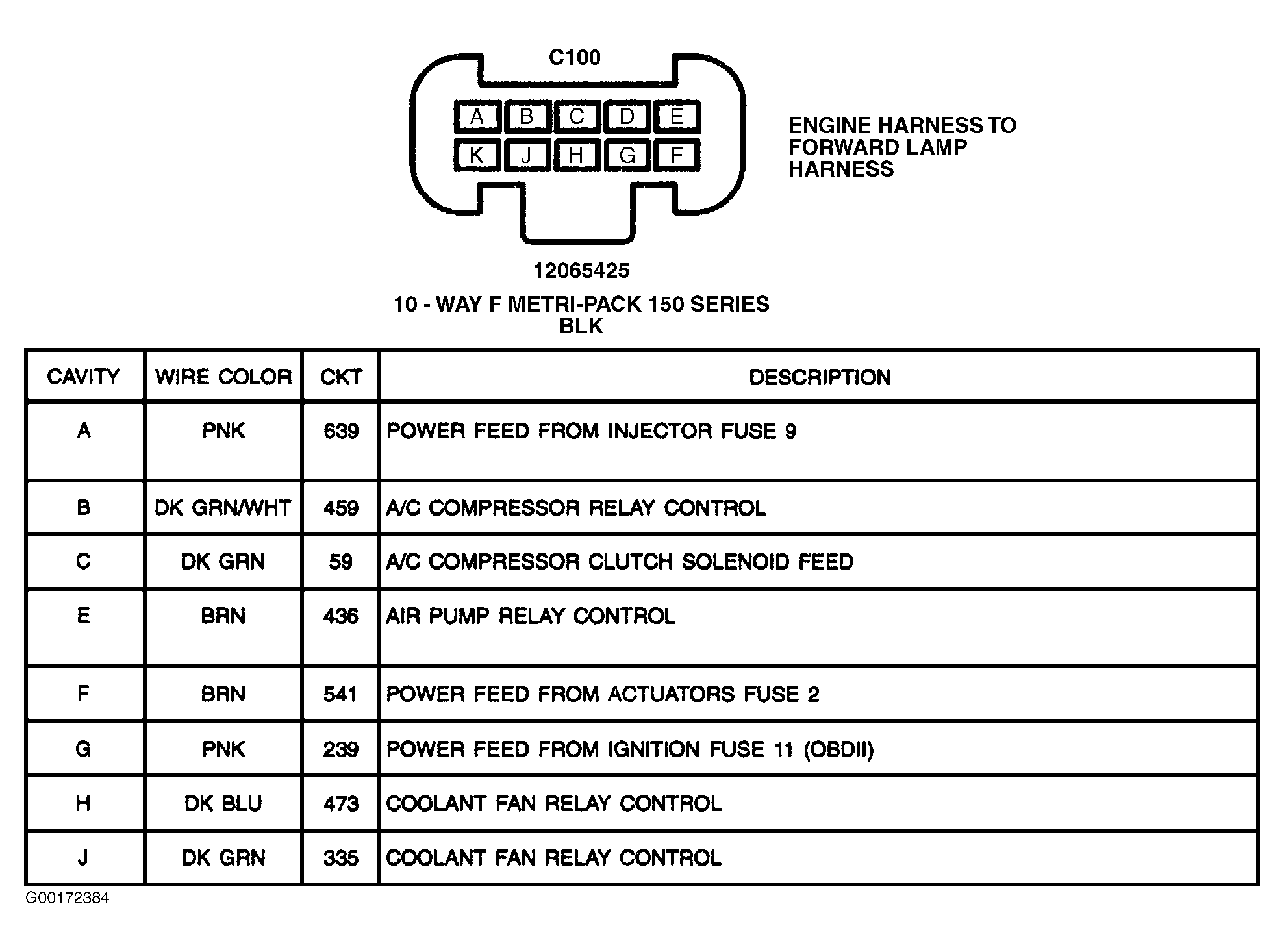

Fig 1: C100 - 10-Pin Connector (Black)
G00172384Courtesy of GENERAL MOTORS CORP.
