Home › Pontiac › 1997 › Firebird Base, 2D Convertible, Standard › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C405 › C220

C100 To C405: C220

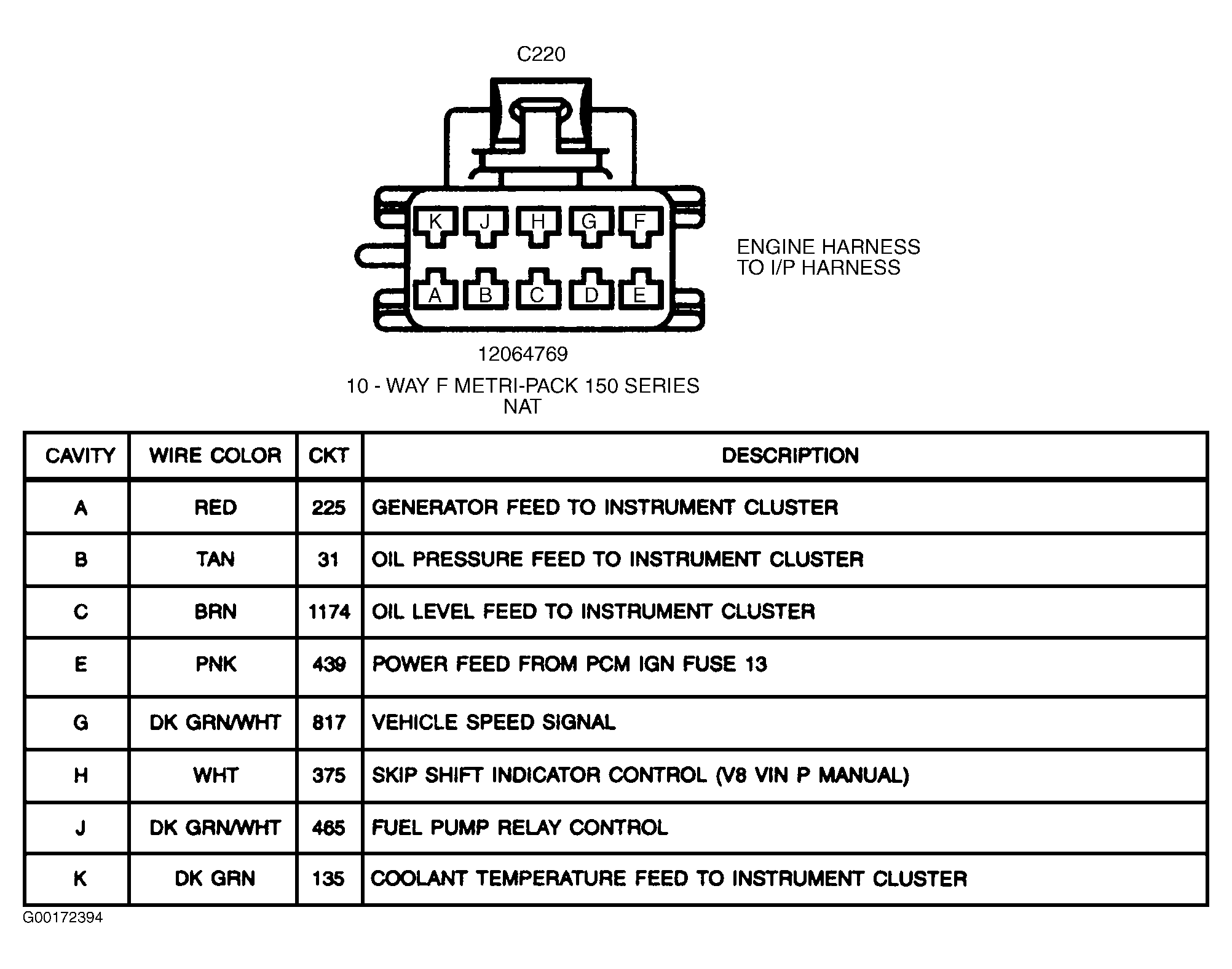

Fig 1: C220 - 10-Pin Connector (Natural)
G00172394Courtesy of GENERAL MOTORS CORP.
