Connector Terminal Identification
›
Radio Connectors
›
Radio C3
Radio C3

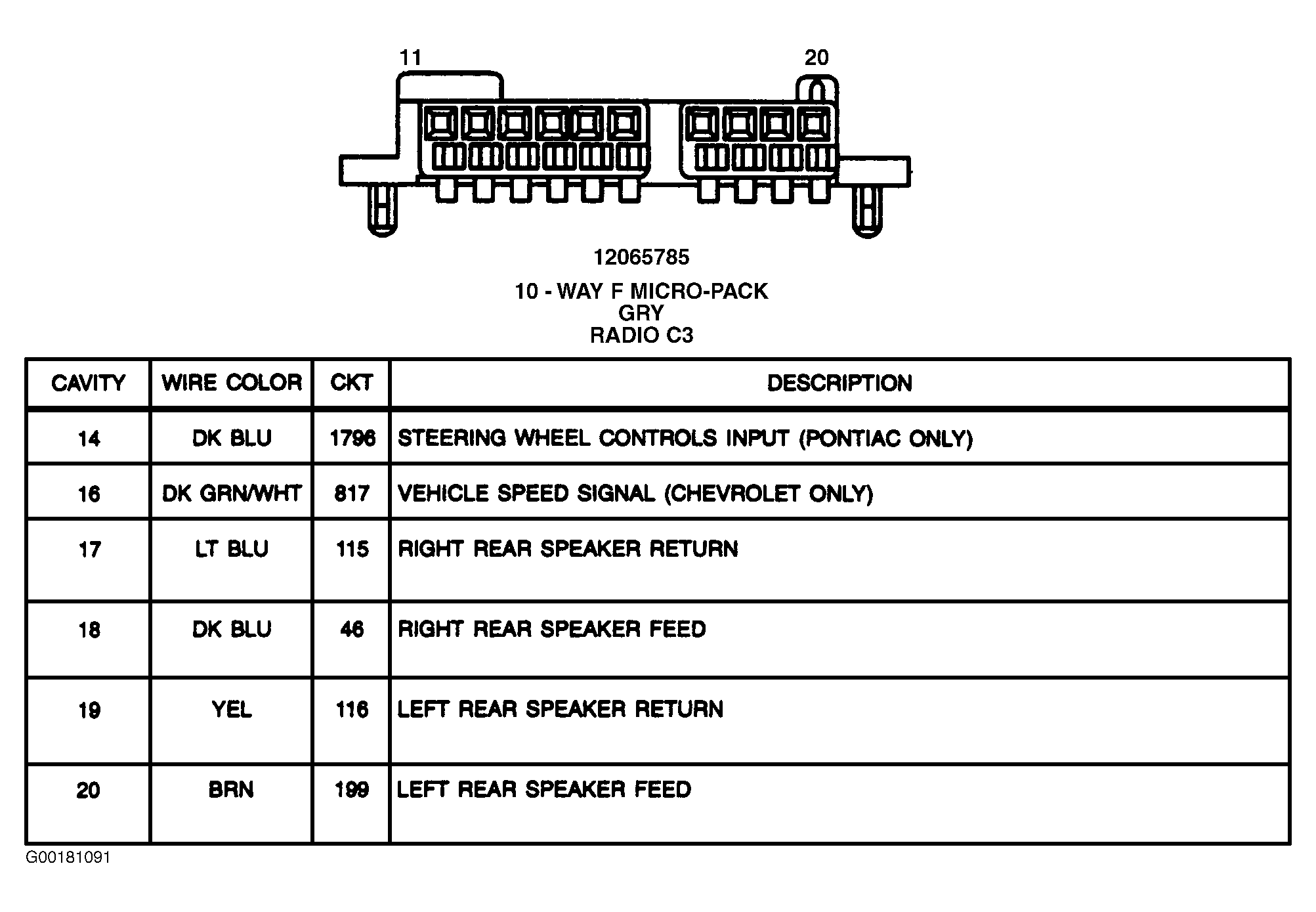

Fig 1: Radio C3 - 10-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
