Connector Terminal Identification
›
Electronic Brake & Traction Control Module C1
Electronic Brake & Traction Control Module C1

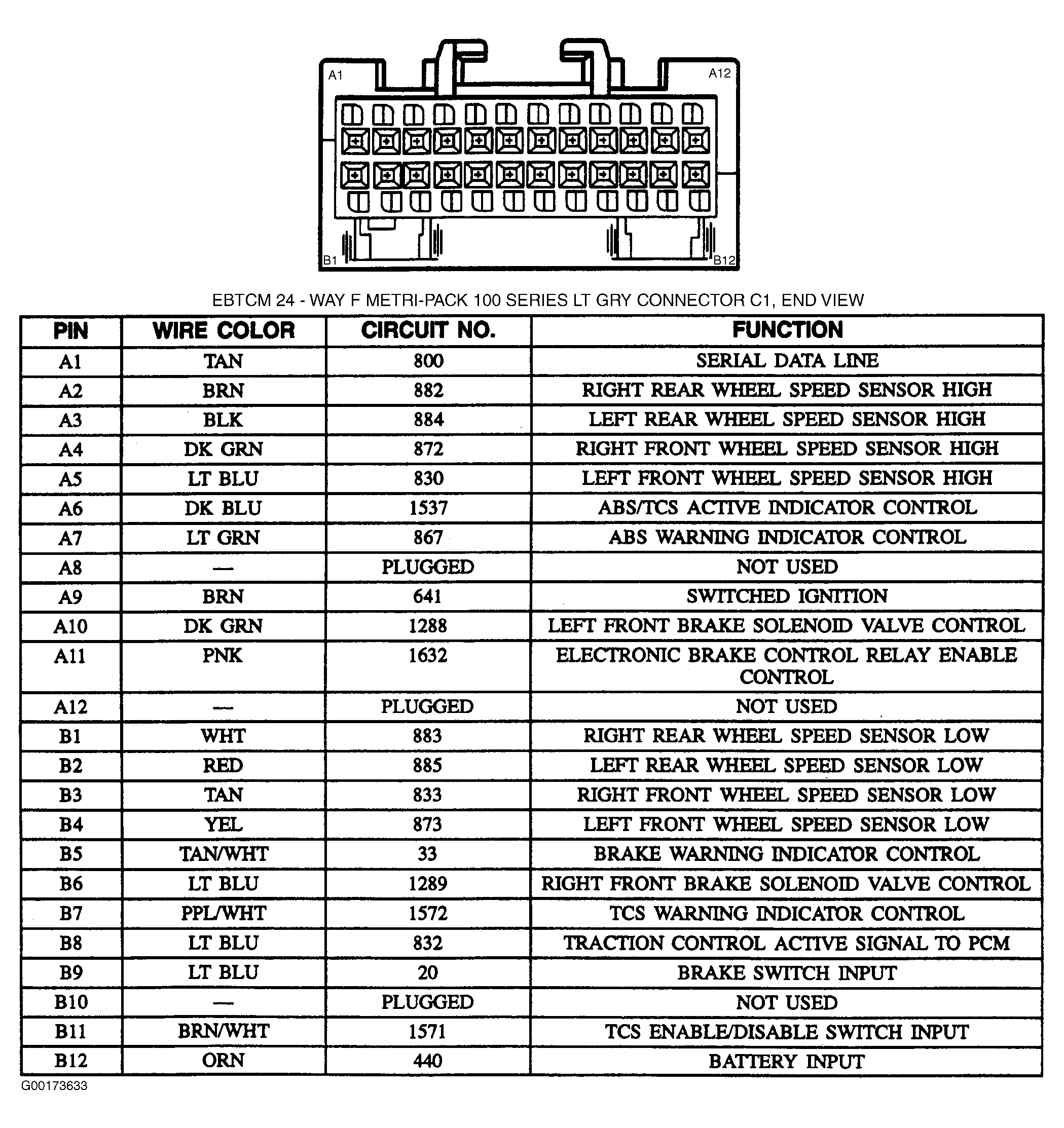

Fig 1: Electronic Brake & Traction Control Module C1 - 24-Pin Connector (Light Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
