Electronic Ignition Control Module (V6 3.8L)

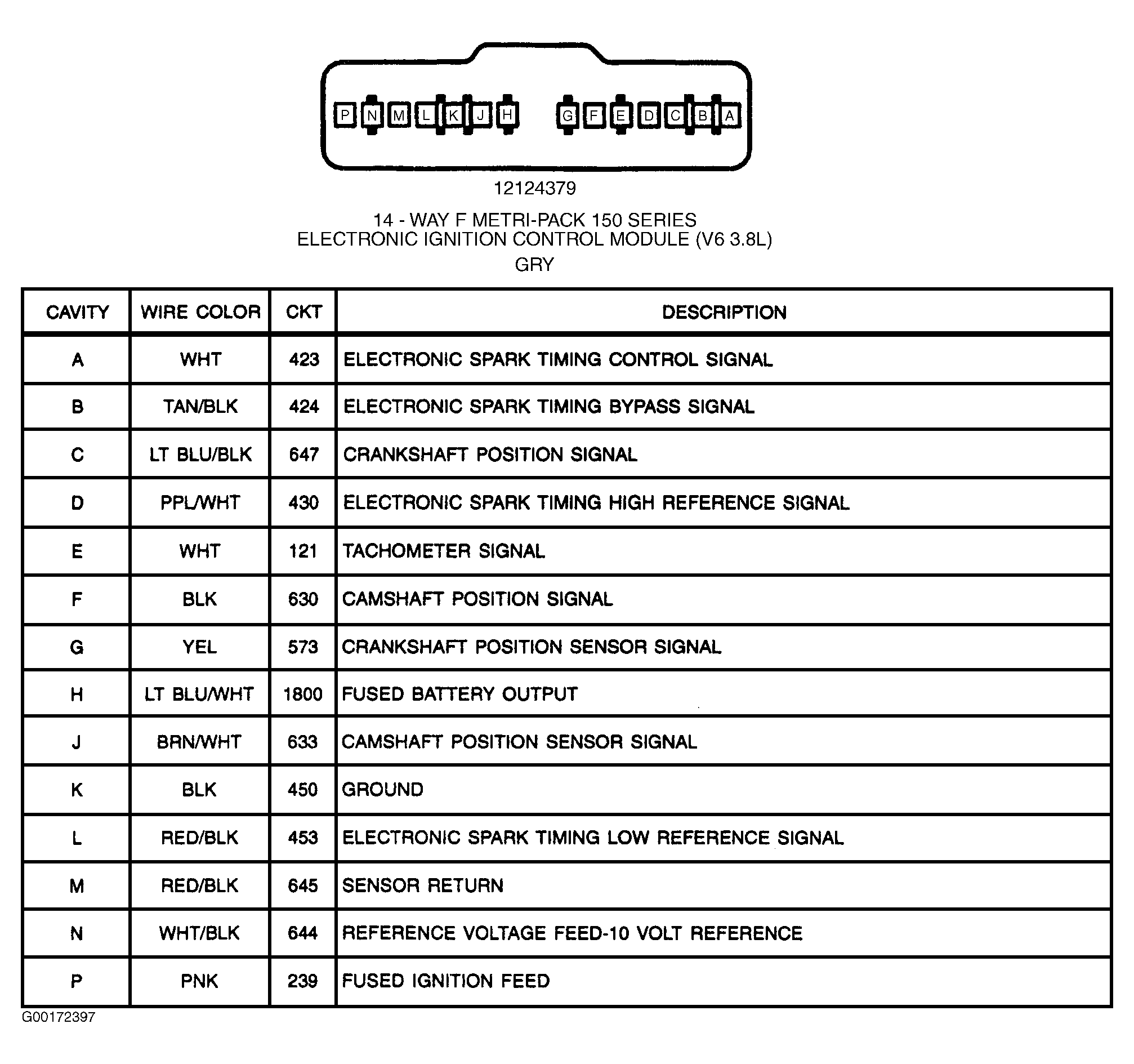

Fig 1: Electronic Ignition Control Module (V6 3.8L) - 14-Pin Connector (Gray)
G00172397Courtesy of GENERAL MOTORS CORP.
