Home › Pontiac › 1997 › Firebird Formula, 2D Convertible, Automatic › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Radio Connectors › Cd Player

Cd Player

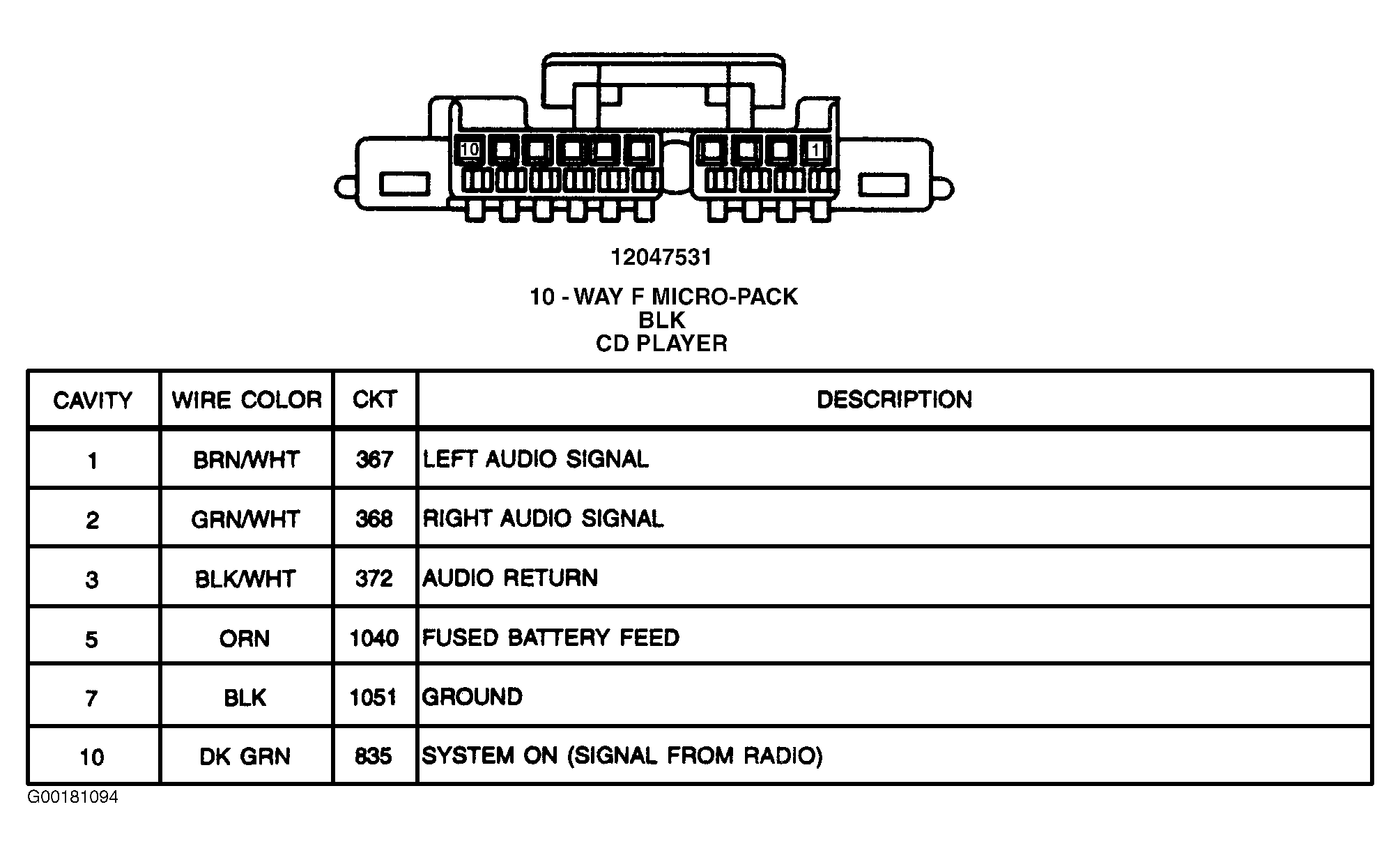

Fig 1: CD Player - 10-Pin Connector (Black)
G00181094Courtesy of GENERAL MOTORS CORP.
