Connector Terminal Identification
›
Supplemental Inflatable Restraint (Sir) Connectors
Supplemental Inflatable Restraint (Sir) Connectors

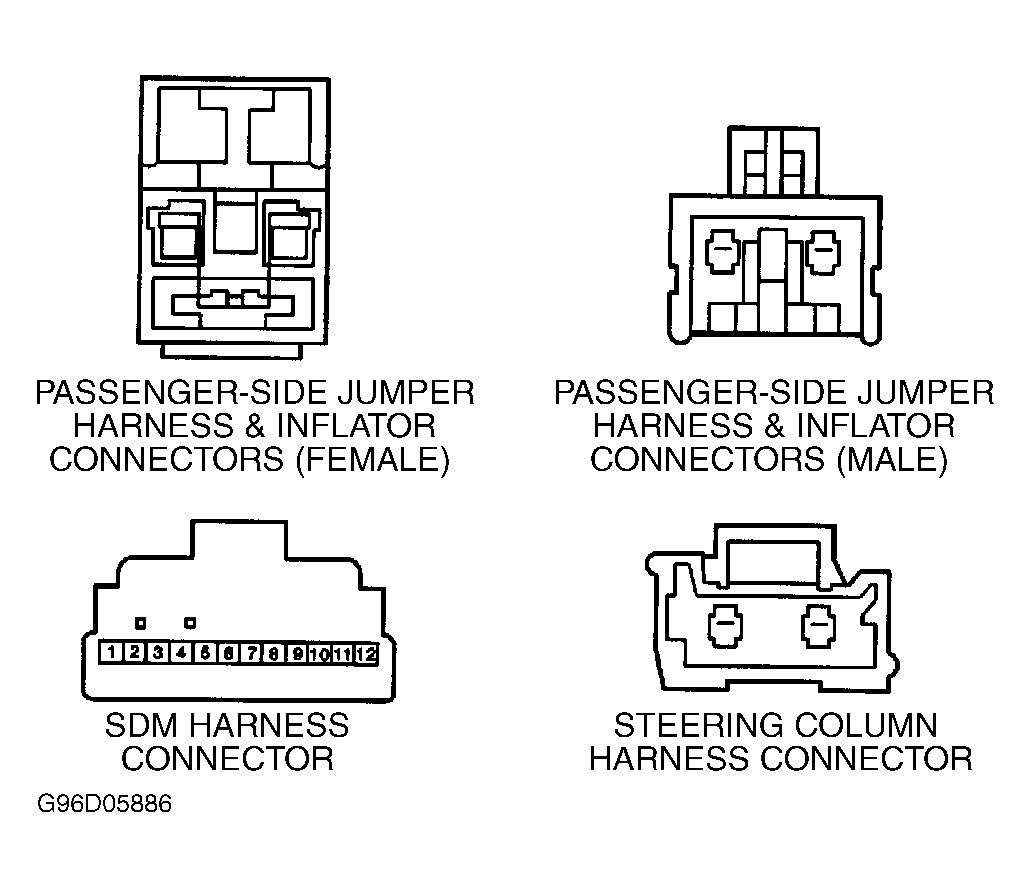

Fig 1: Supplemental Inflatable Restraint (SIR) Connectors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
