Body Control Module (BCM) C1

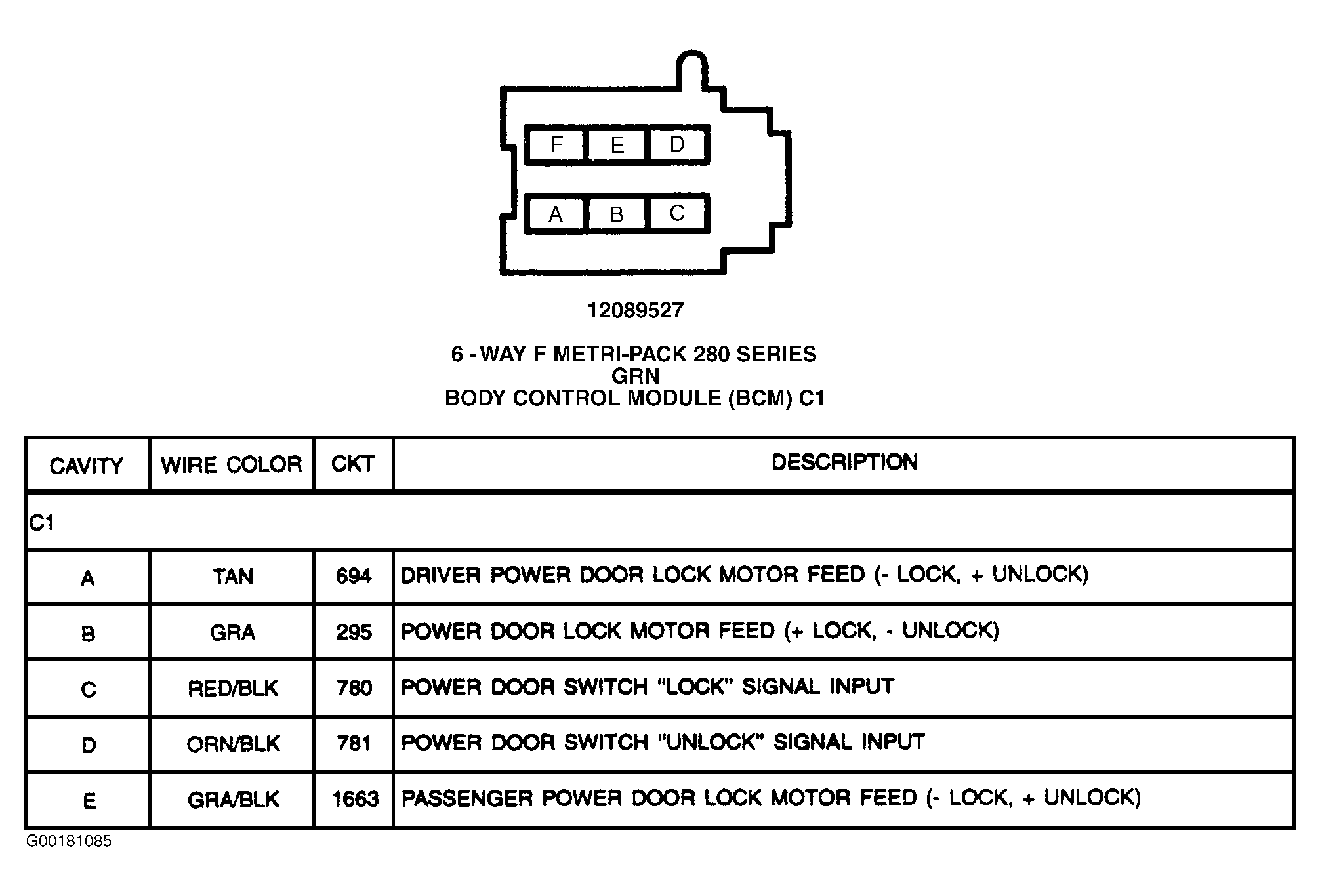

Fig 1: Body Control Module (BCM) C1 - 6-Pin Connector (Green)
G00181085Courtesy of GENERAL MOTORS CORP.
