Body Control Module (BCM) C3

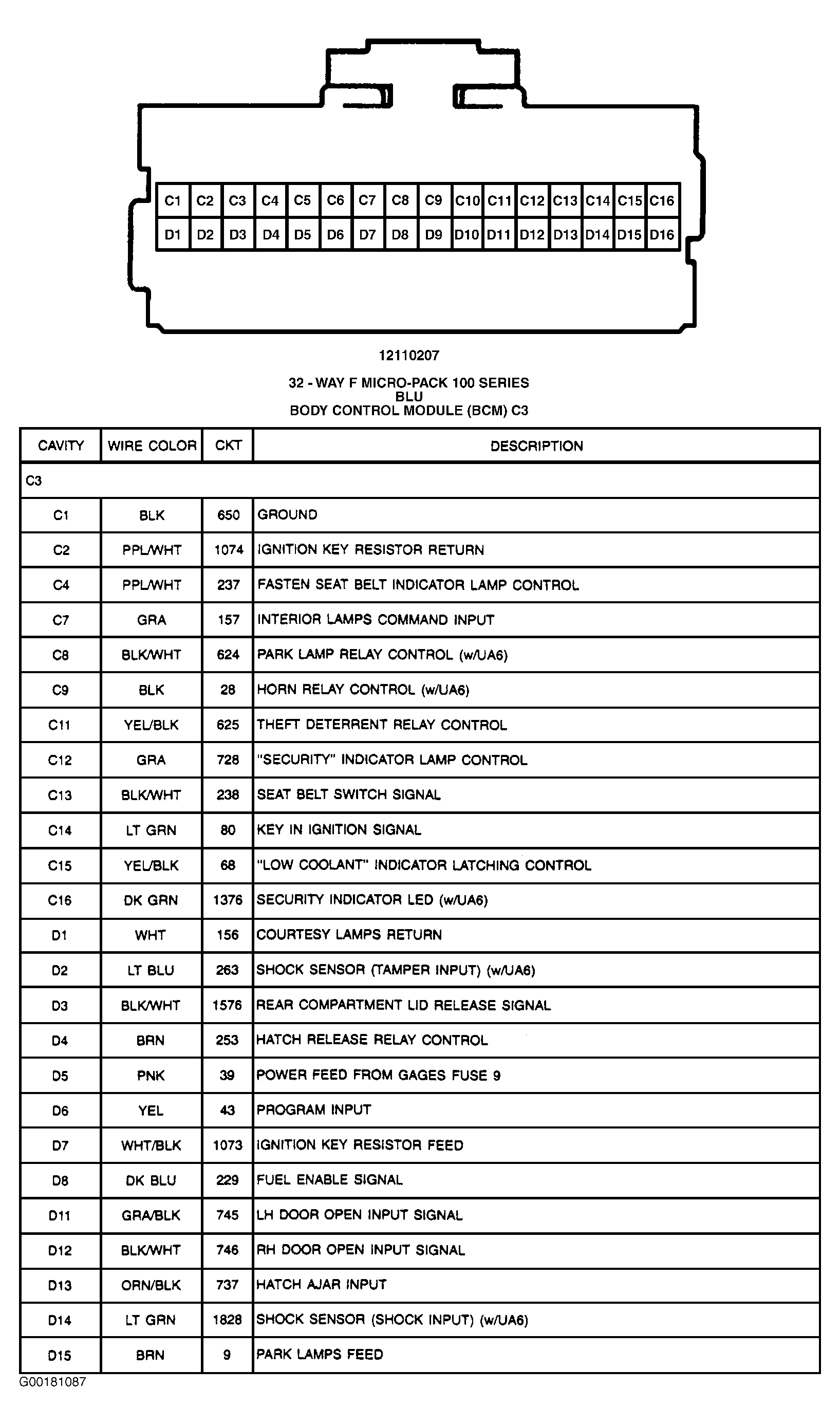

Fig 1: Body Control Module (BCM) C3 - 32-Pin Connector (Blue)
G00181087Courtesy of GENERAL MOTORS CORP.
