Connector Terminal Identification
›
Headlight Switch
Headlight Switch

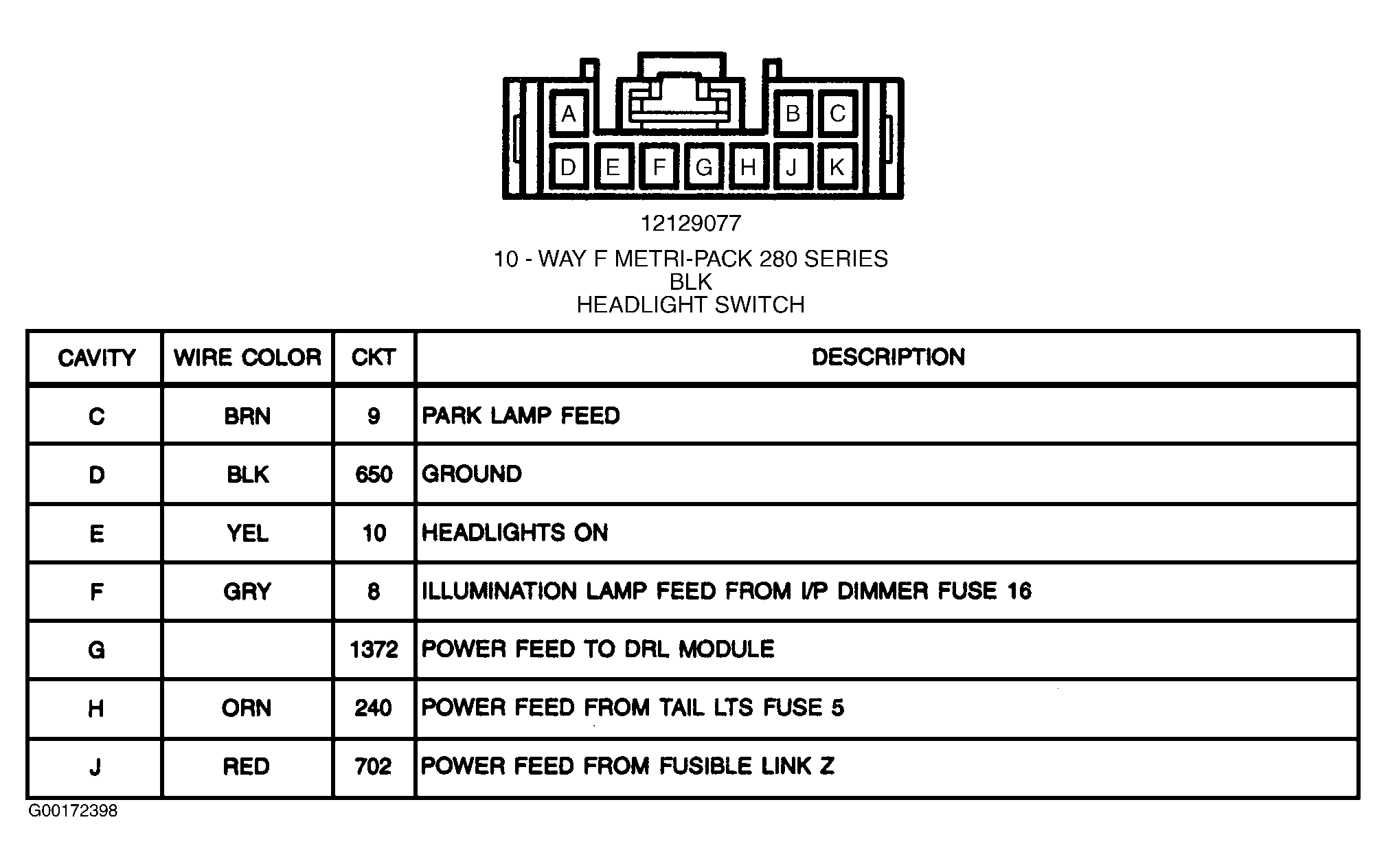

Fig 1: Headlight Switch - 10-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
