Connector Terminal Identification
›
Instrument Cluster
Instrument Cluster

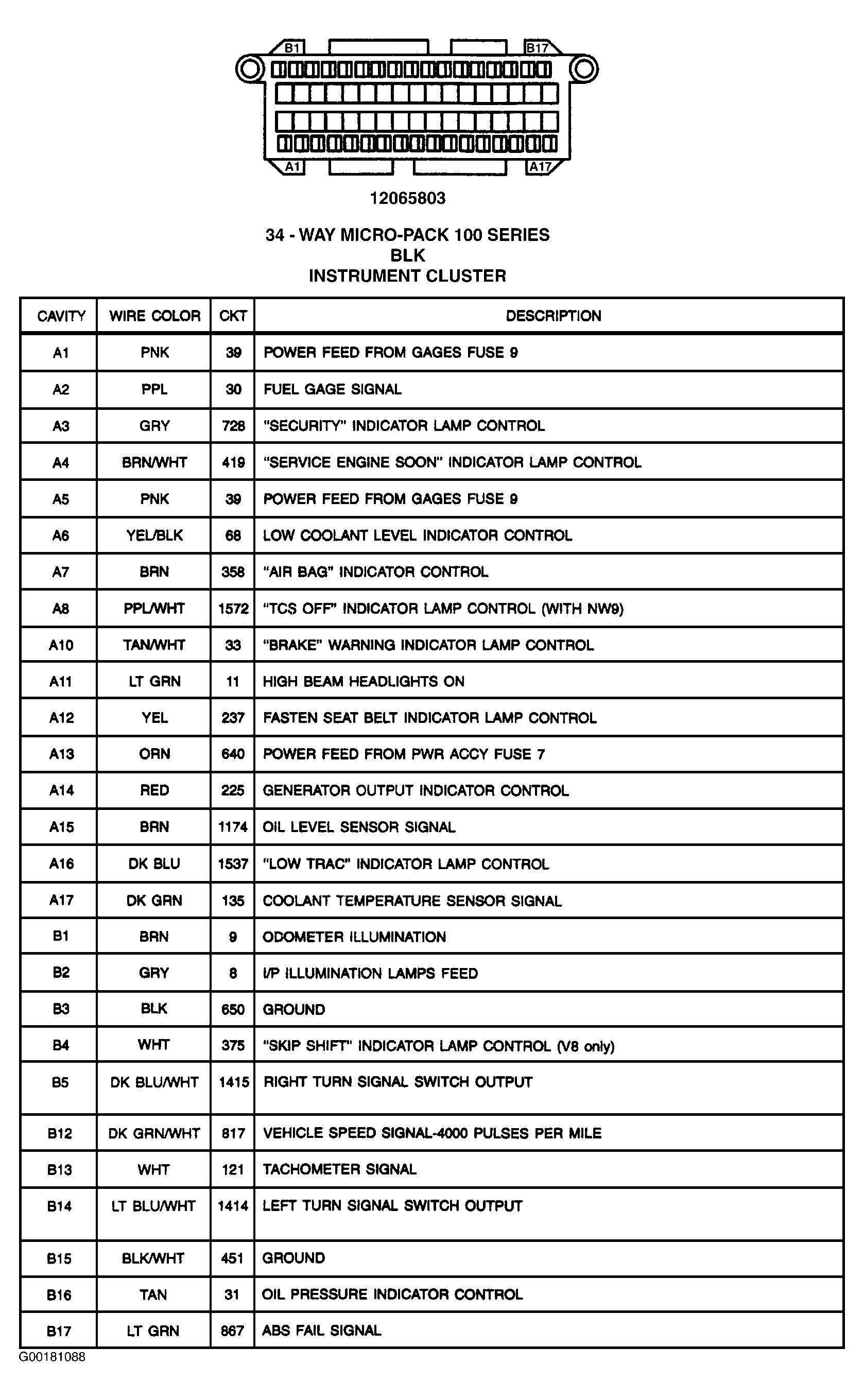

Fig 1: Instrument Cluster - 34-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
