Connector Terminal Identification
›
Radio Connectors
›
Radio C1
Radio C1

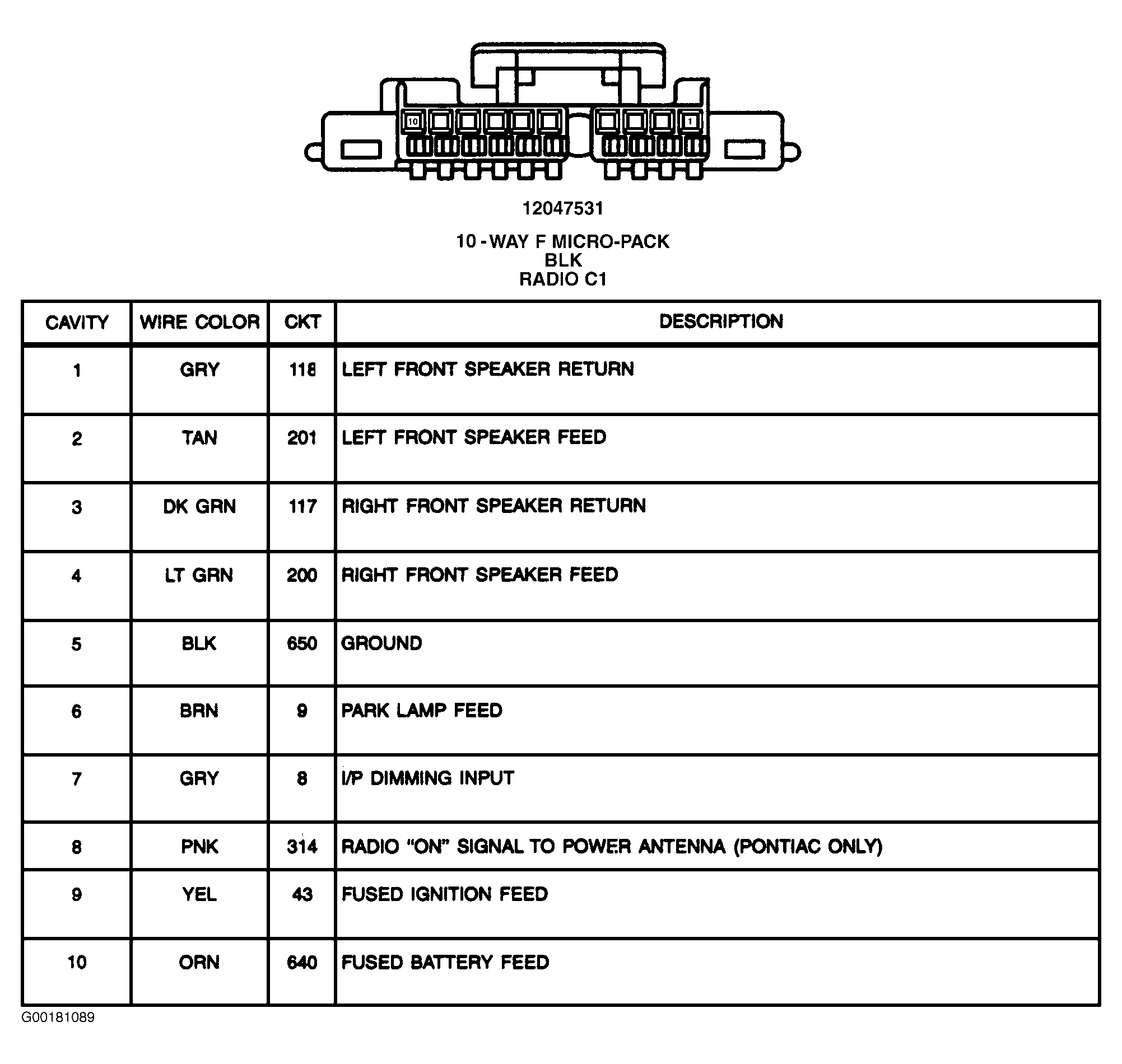

Fig 1: Radio C1 - 10-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
