Automatic Transmission Wiring Harness Assembly

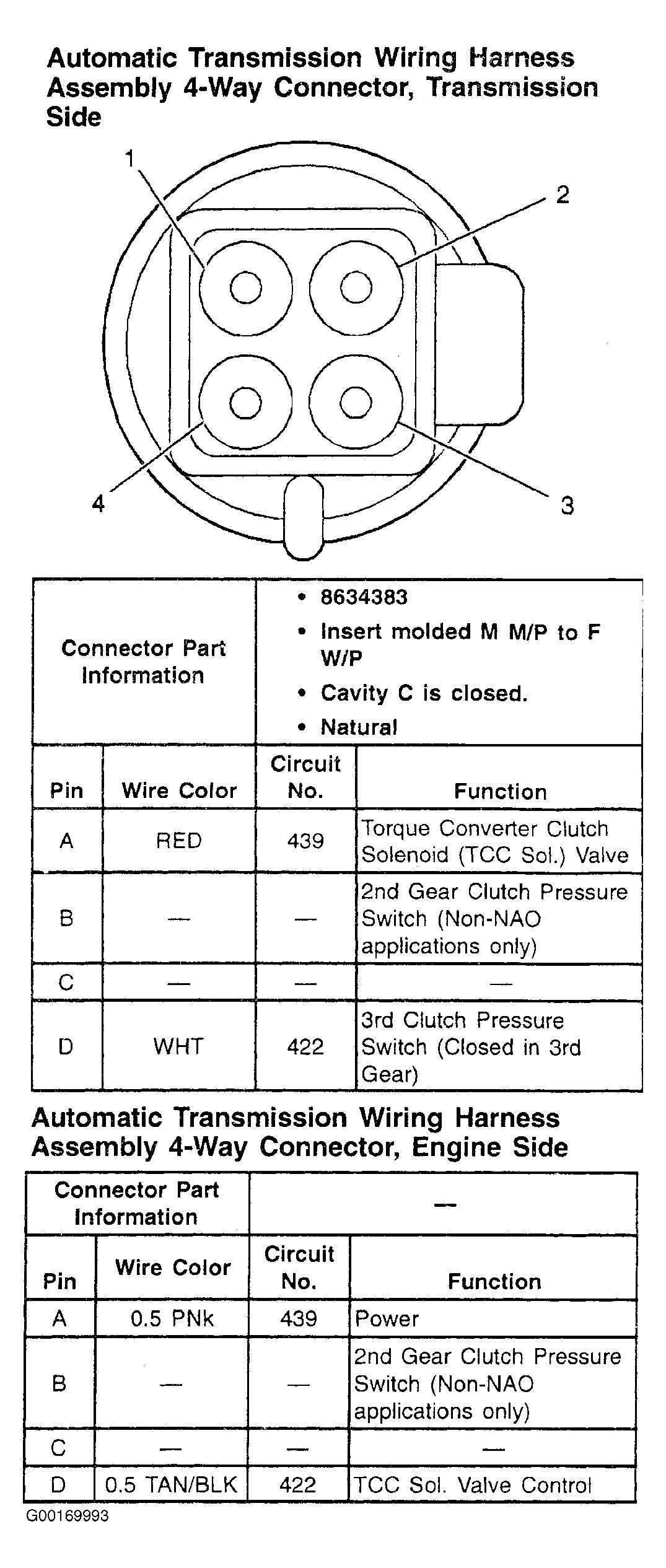

Fig 1: Automatic Transmission Wiring Harness Assembly - 4-Pin Connector (Natural)
G00169993Courtesy of GENERAL MOTORS CORP.
