Connector Terminal Identification
›
Ignition Switch C1 & C2
Ignition Switch C1 & C2

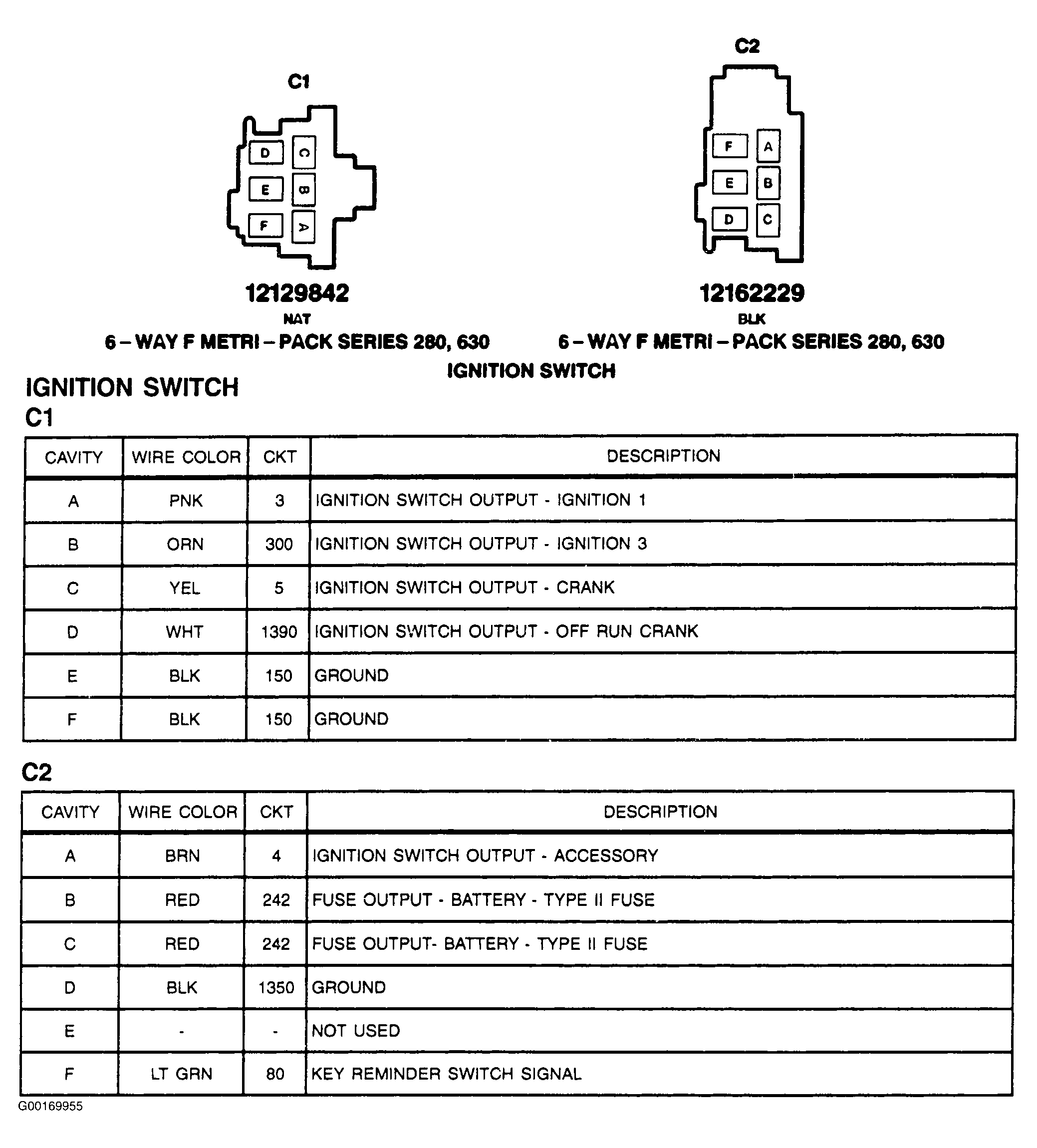

Fig 1: Ignition Switch C1 & C2 - 6-Pin Connector (Natural) & 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
