Connector Terminal Identification
›
Remote Control Door Lock Receiver C1 & C2
Remote Control Door Lock Receiver C1 & C2

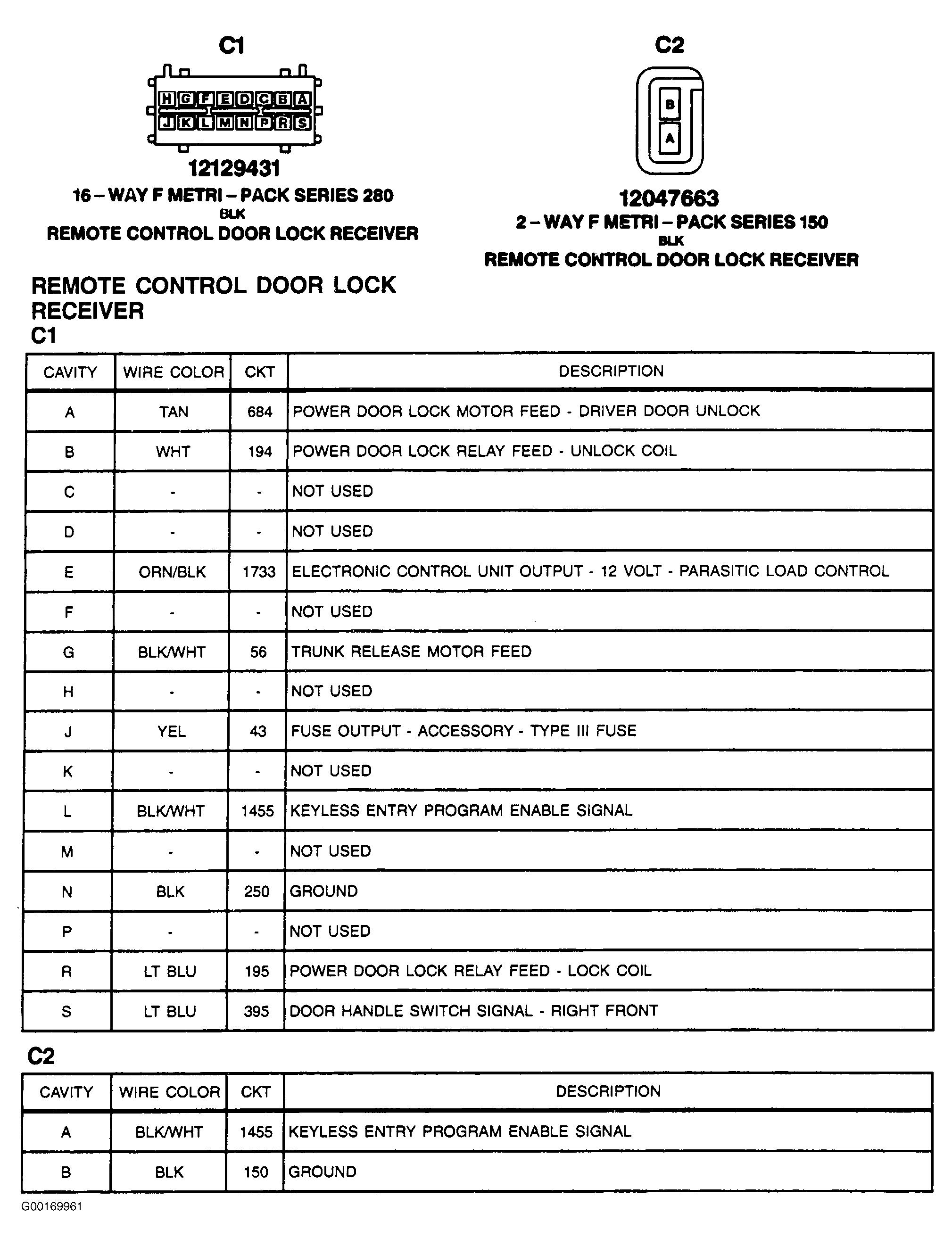

Fig 1: Remote Control Door Lock Receiver C1 & C2 - 16-Pin Connector (Black) & 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
