Connector Terminal Identification
›
Sensing Diagnostic Module (SDM)
Sensing Diagnostic Module (SDM)

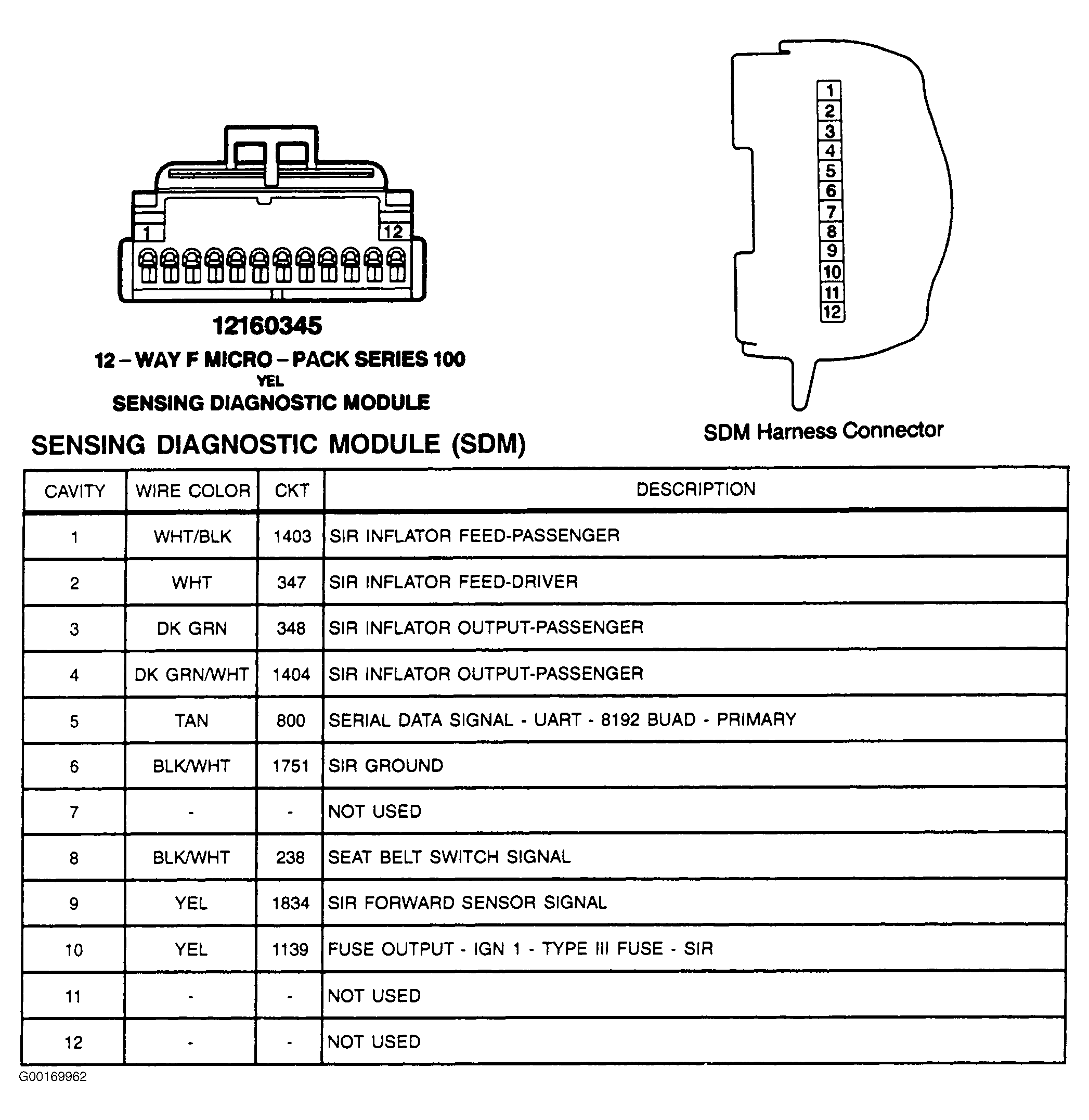

Fig 1: Sensing Diagnostic Module (SDM) - 12-Pin Connector (Yellow)
Courtesy of GENERAL MOTORS CORP.
