Home › Pontiac › 1997 › Sunfire GT, Standard › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C313 › C101

C100 To C313: C101

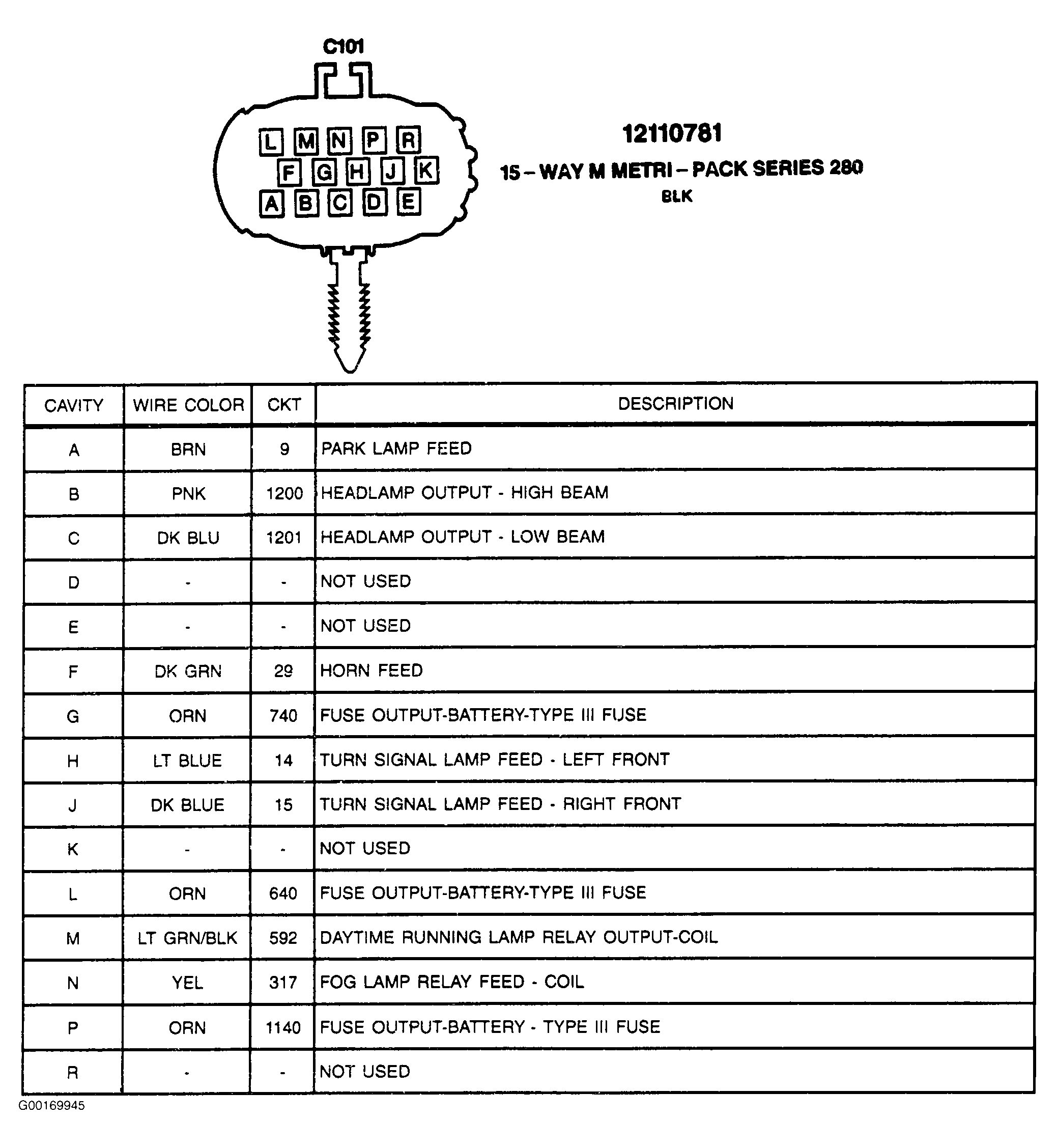

Fig 1: C101 - 15-Pin Connector (Black)
G00169945Courtesy of GENERAL MOTORS CORP.
