Home › Pontiac › 1997 › Sunfire GT, Standard › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C313 › C200

C100 To C313: C200

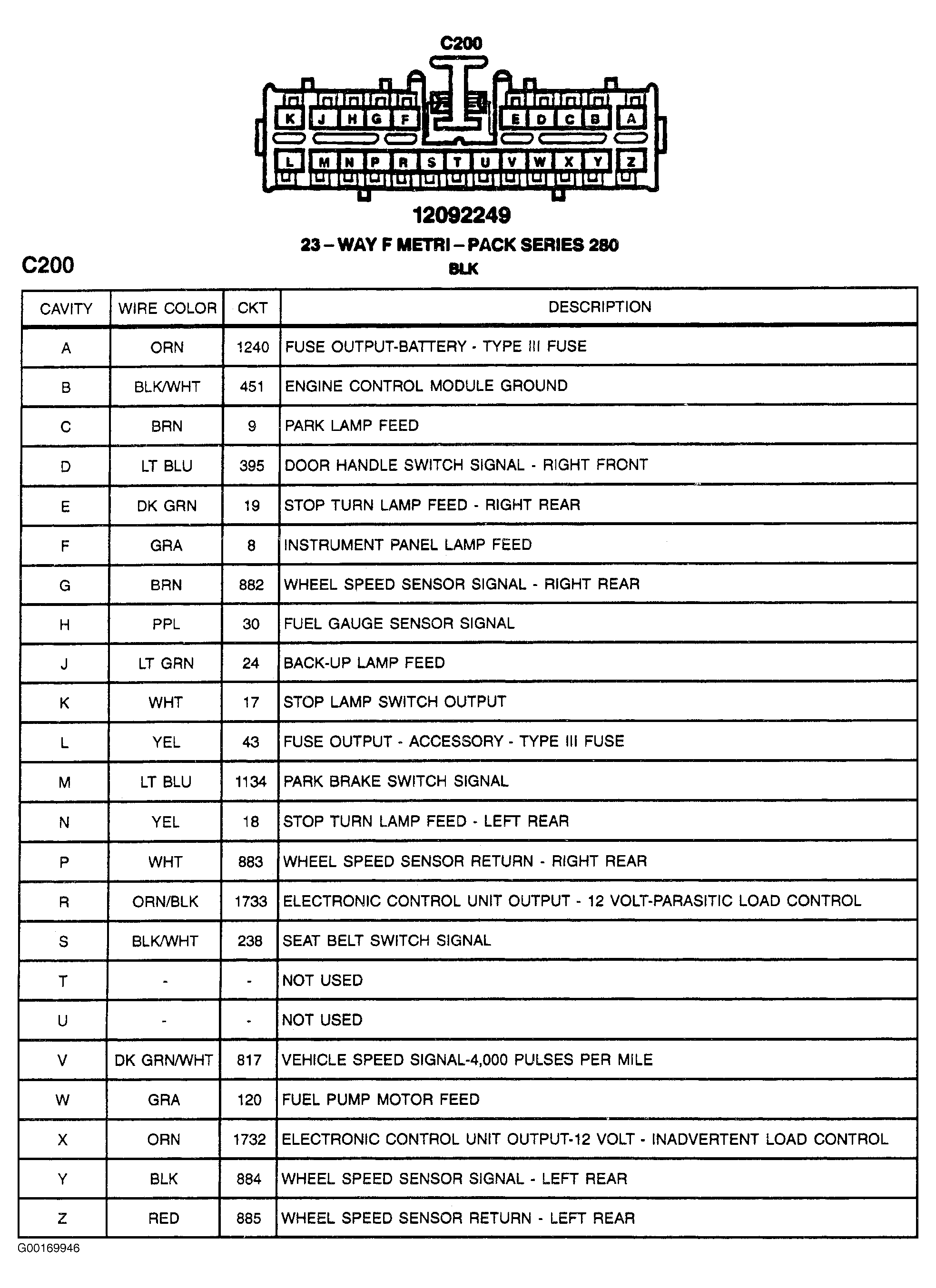

Fig 1: C200 - 23-Pin Connector (Black)
G00169946Courtesy of GENERAL MOTORS CORP.
