Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

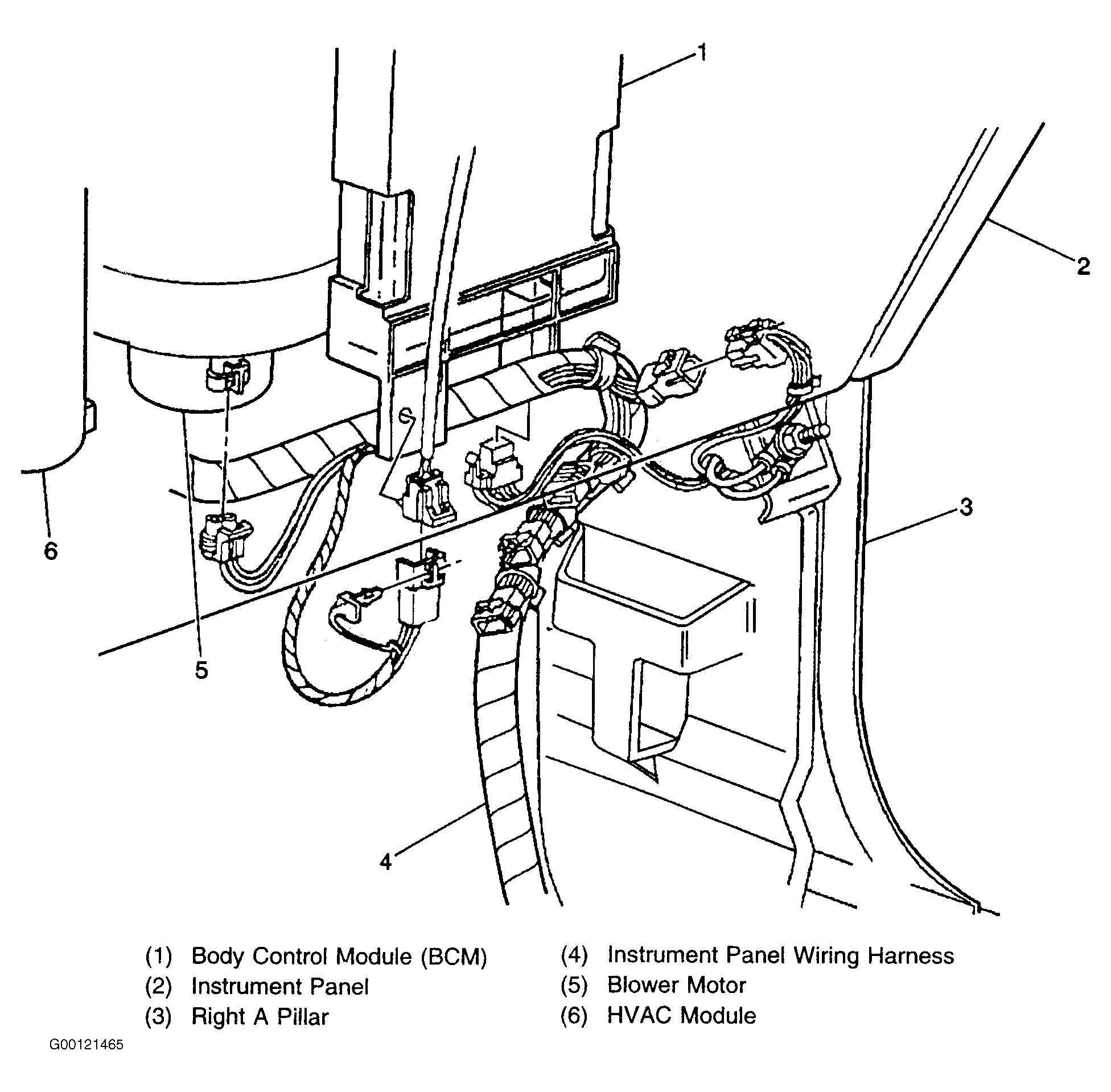

| Body Control Module | Under Right Side Of Instrument Panel Near Blower Motor. See Fig 1 |

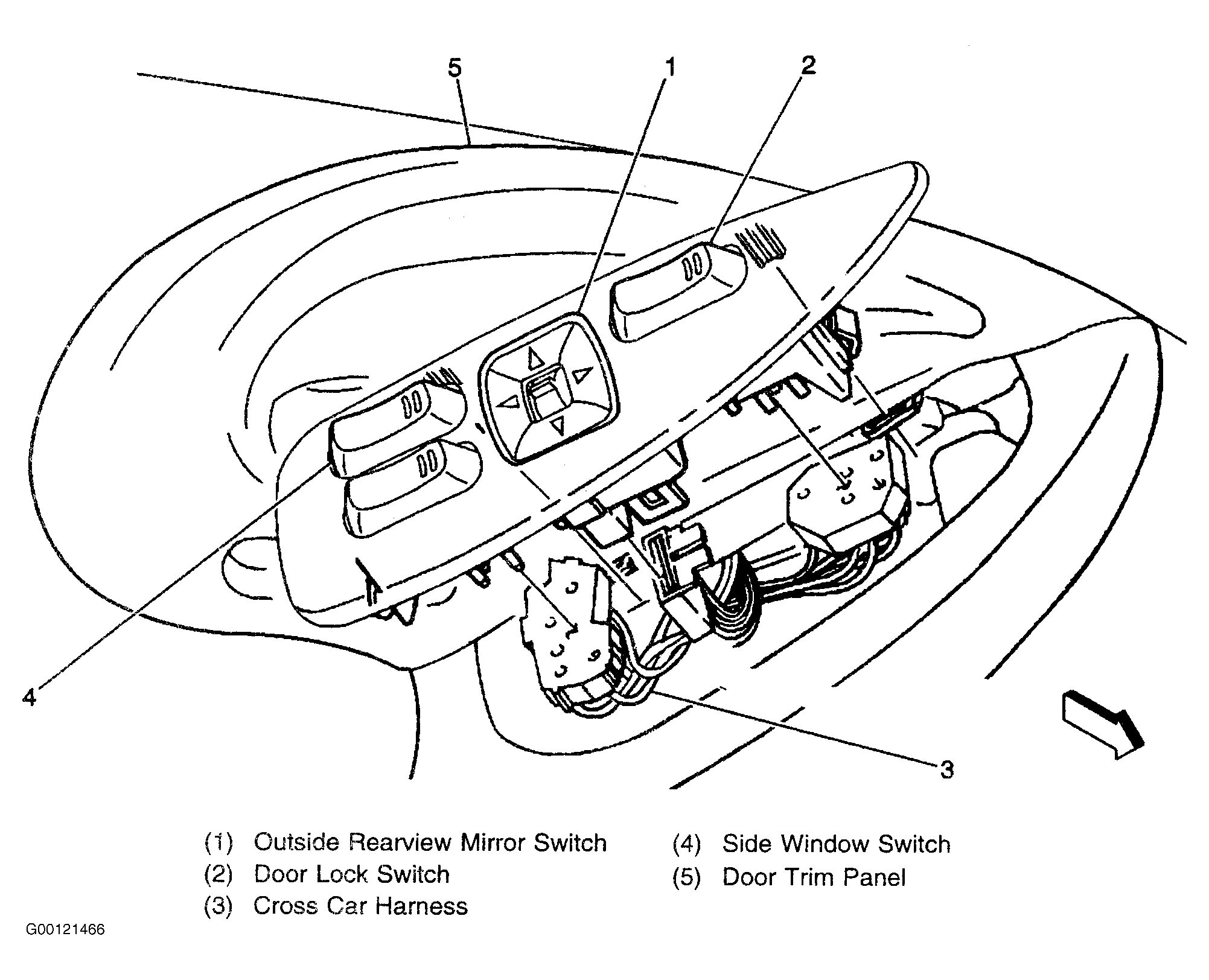

| Door Lock Switch | Mounted In Door Armrest. See Fig 2 |

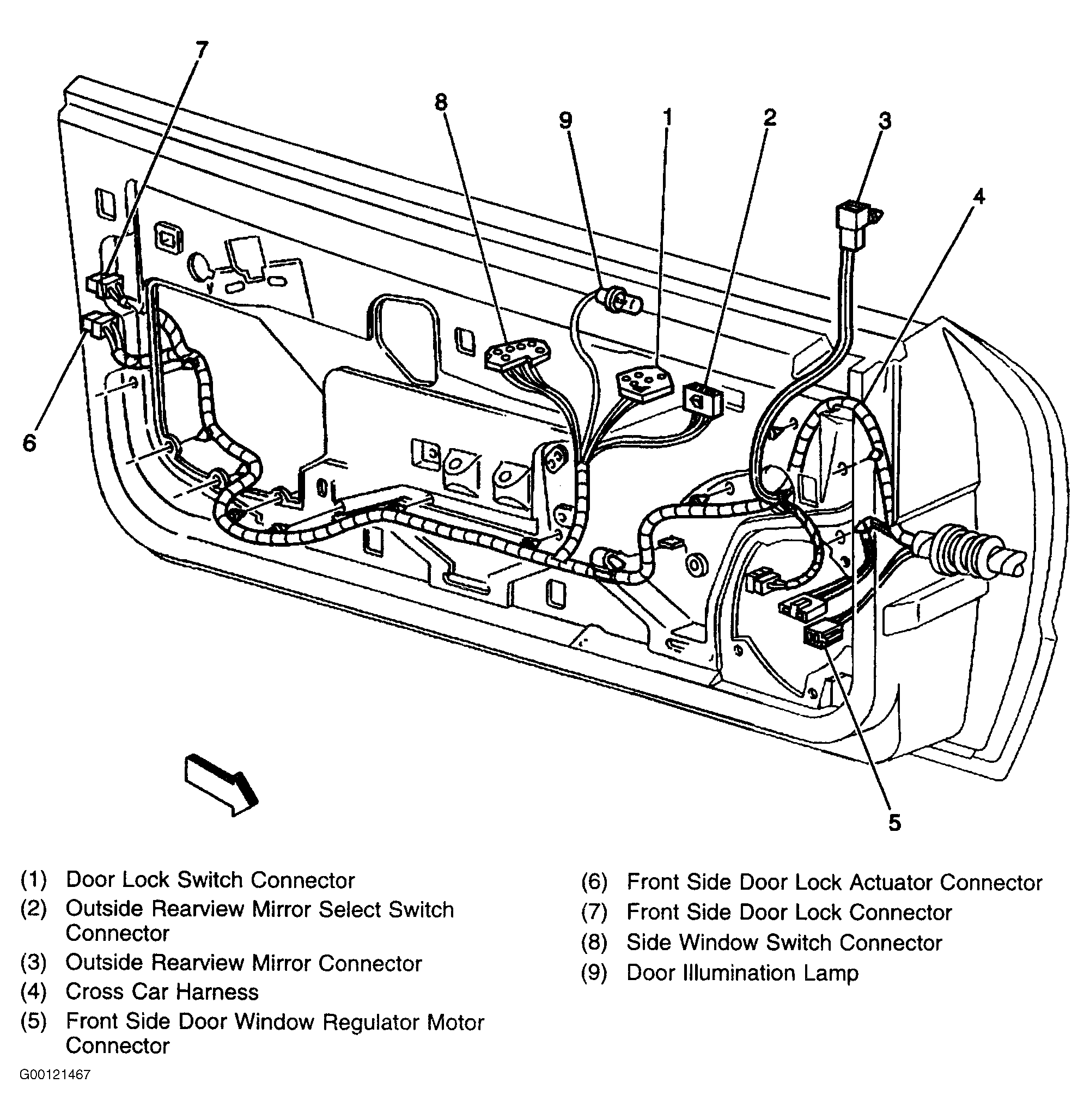

| Front Side Door Lock | Inside Rear Of Door. See Fig 3 |
| Front Side Door Lock Actuator | Inside Rear Of Door. See Fig 3 |

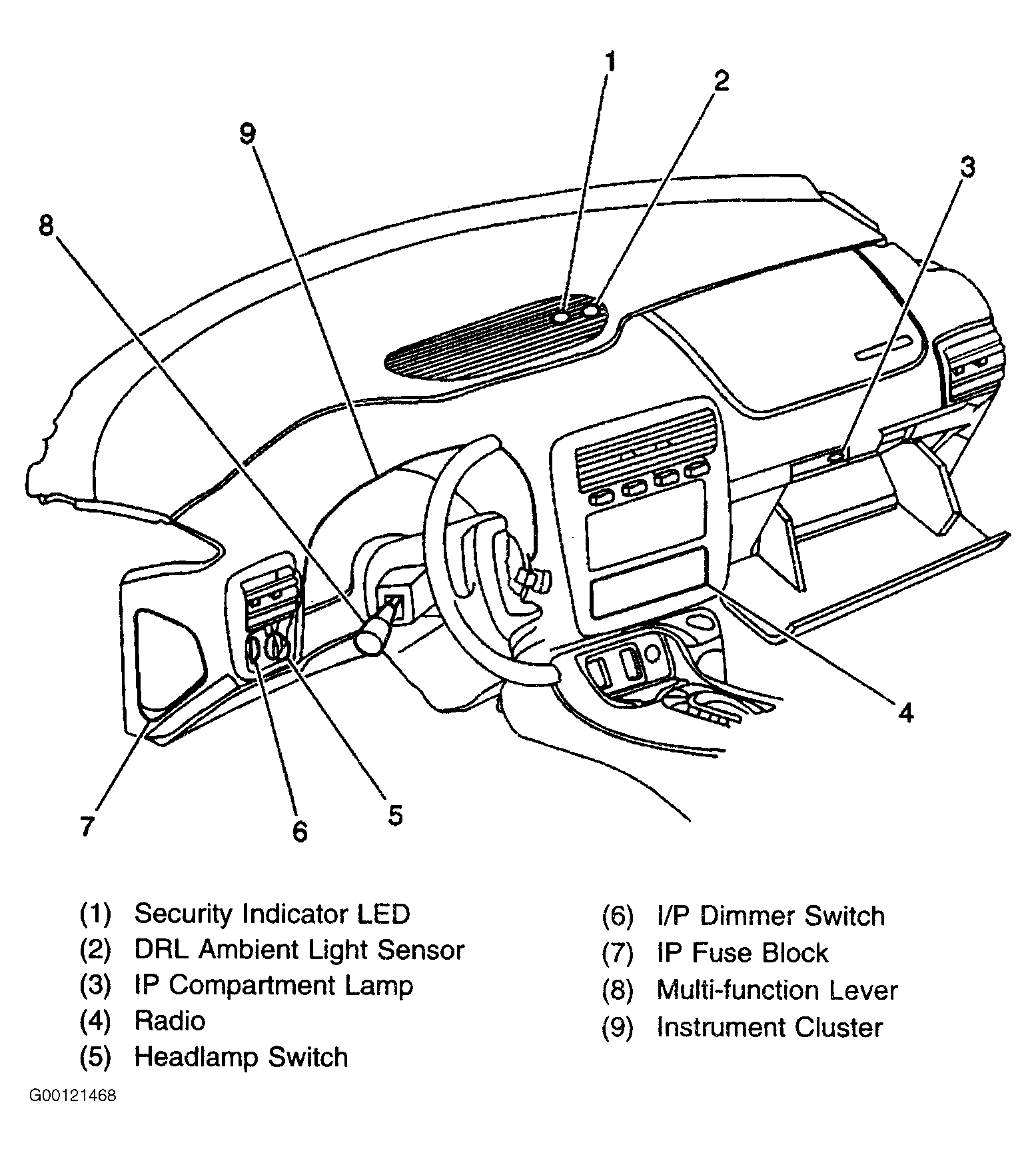

| Instrument Panel Fuse Block | On Left End Of Instrument Panel Carrier. See Fig 4 |

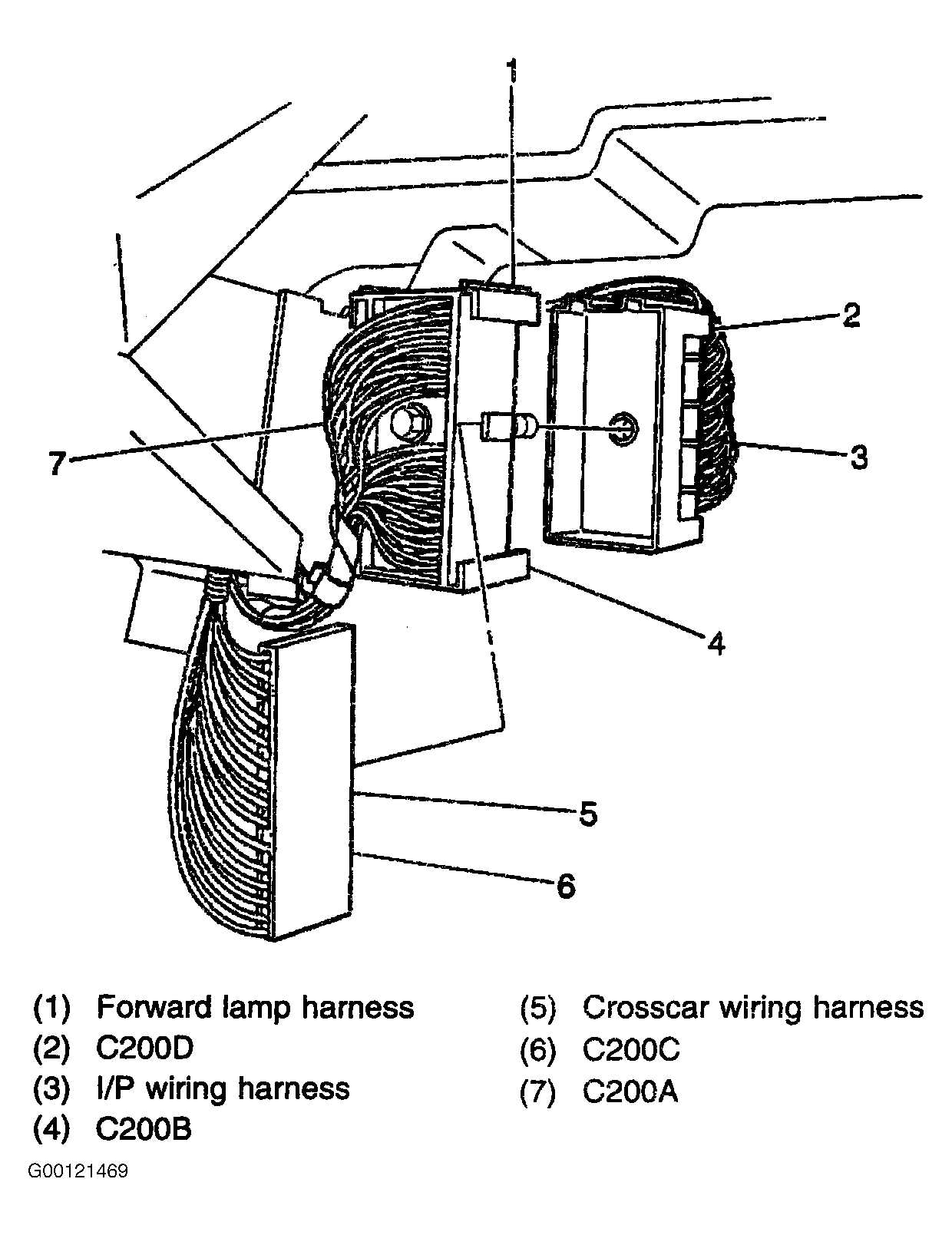

| C200C (13 cavities) | In Cross Car to Instrument Panel Harness, Between Left Kick Panel & Steering Column. See Fig 5 |
| C200D (48 cavities) | Part Of Instrument Panel Harness, Between Left Kick Panel & Steering Column. See Fig 5 |

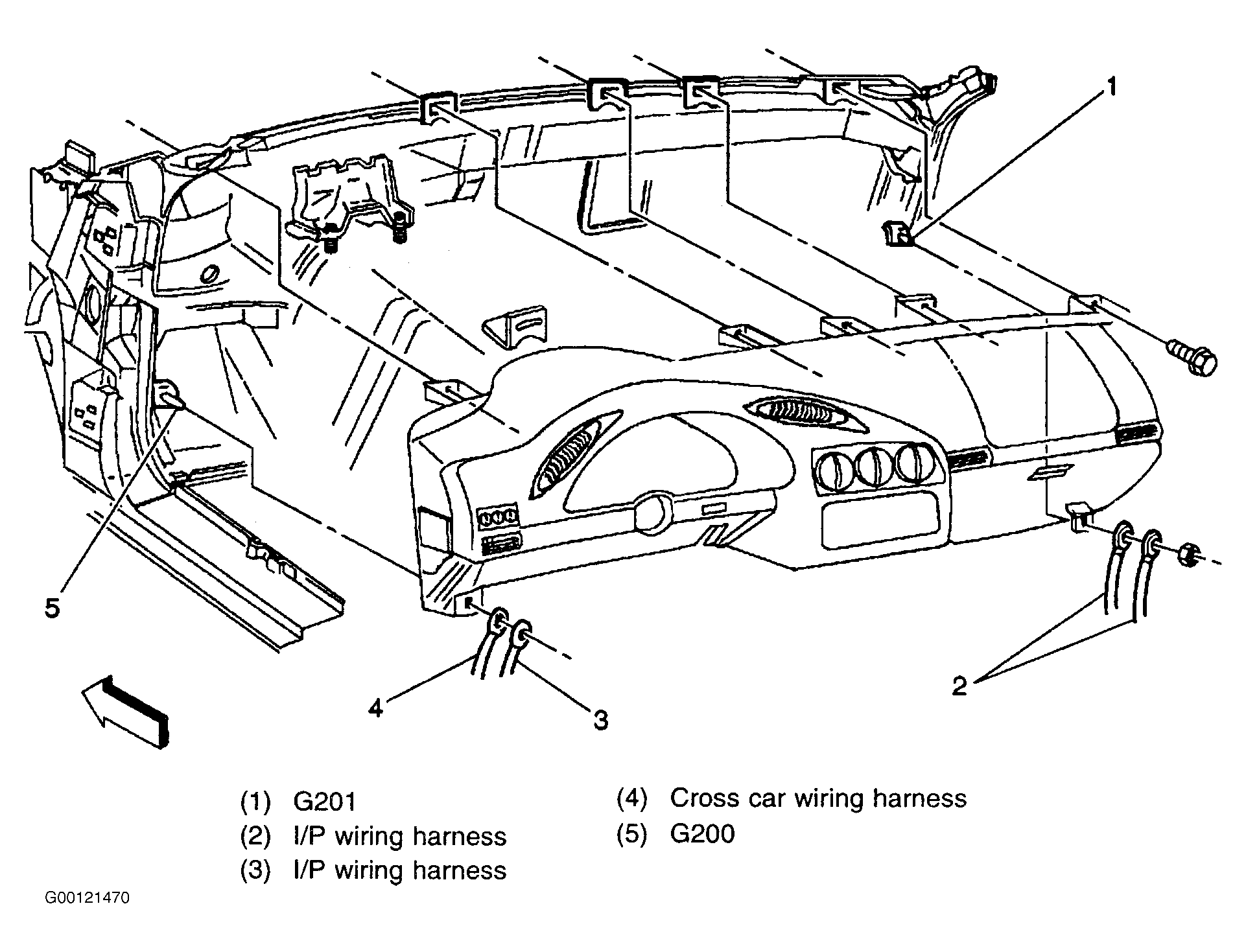

| G200 | Near Left A Pillar, Bolted To Instrument Panel Mounting Stud Behind Kick Panel. See Fig 6 |

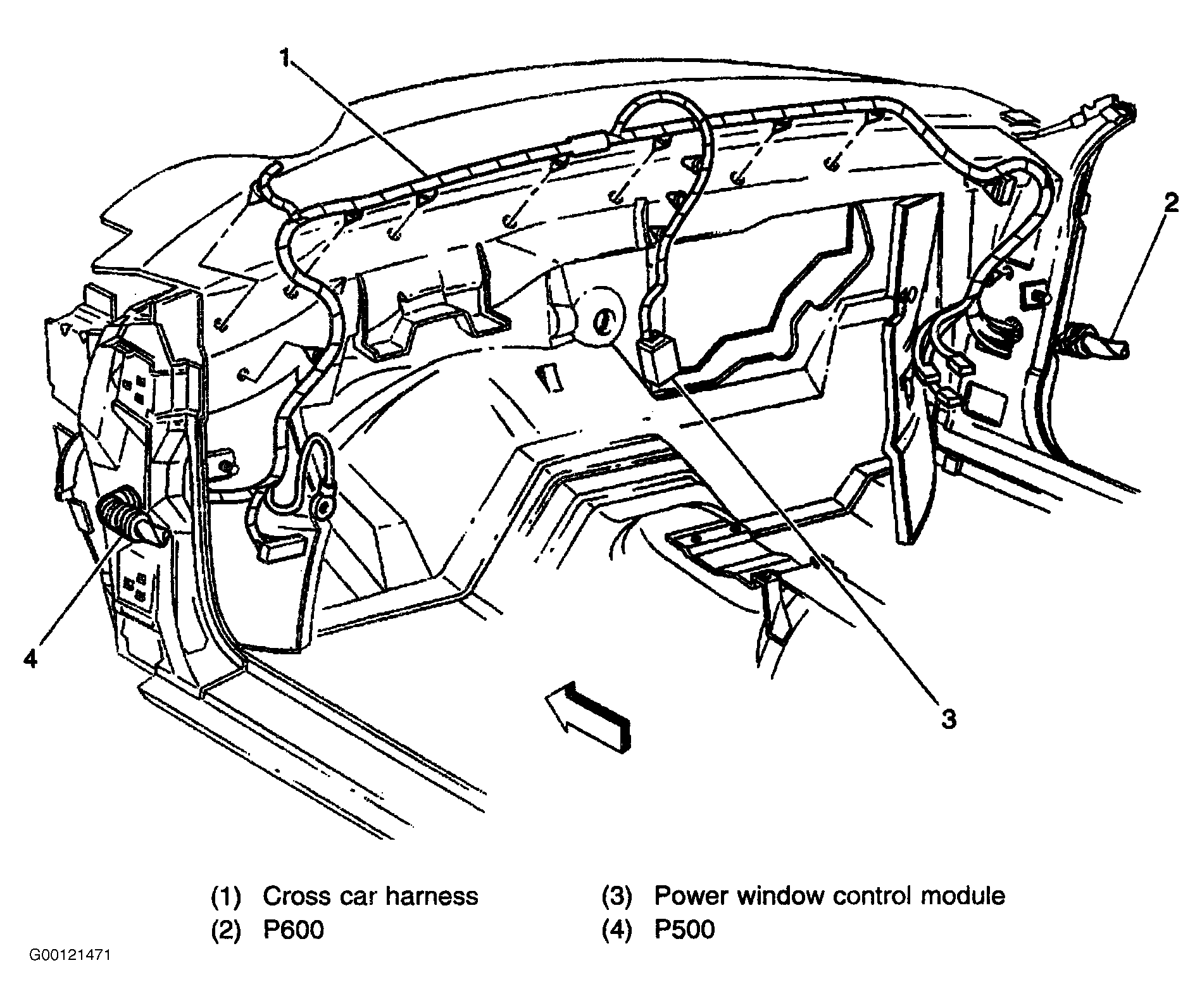

| P500 | Between Drivers Door & A-Pillar. See Fig 7 |
| P600 | Between Passengers Door & A-Pillar. See Fig 7 |
| S208 | In Cross Car Harness, Main Branch, Approximately 10 Inches (26 cm) From Power Window Control Module Breakout |
| S211 | In Instrument Panel Harness, Main Branch, Approximately 3 Inches (7 cm) From Rear Compartment Lid Release Relay Breakout |
| S216 | In Instrument Panel Harness, Main Branch, Approximately 4 Inches (10 cm) From Instrument Cluster Breakout |
| S217 | In Instrument Panel Harness, Main Branch, Approximately 5.5 Inches (14 cm) From Body Control Module (BCM) Breakout |
| S220 | In Cross Car Harness, Main Branch, Approximately 3.5 Inches (9 cm) From C200C Breakout |
| S253 (Convertible) | In Instrument Panel Harness, Main Branch, Approximately 2 Inches (4 cm) From Instrument Cluster Breakout |
| S261 (Pontiac) | In Instrument Panel Harness, Main Branch, Approximately 2.5 Inches (6 cm) From Body Control Module (BCM) Breakout |
| S263 | In Cross Car Harness, Main Branch, Approximately 6 Inches (16 cm) From C200C Breakout |
| S267 | In Cross Car Harness, Main Branch, Approximately 9.5 Inches (24 cm) From Inside Rearview Mirror Breakout |
| S268 | In Cross Car Harness, Main Branch, Approximately 7 Inches (18 cm) From Inside Rearview Mirror Breakout |
| S501 | In Cross Car Harness, Approximately 1.5 Inches (4 cm) From Left Outside Rearview Mirror Breakout |
| S504 | In Cross Car Harness, Approximately 4 Inches (11 cm) From Left Outside Rearview Mirror Breakout |
| S610 (Chevrolet) | In Cross Car Harness, Approximately 3 Inches (7 cm) From Right Outside Rearview Mirror Breakout |
