Component Locations

WARNING: This page is about a different car, the 2002 Pontiac Firebird, 2002 Chevrolet Camaro, 2001 Pontiac Firebird, and 2001 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For component locations, refer to illustrations. See Fig 1-Fig 6 .
COMPONENT LOCATIONS

Component Location
Body Control Module Behind Right Side Of Instrument Panel, Near Blower Motor
Horn Relay In Top Underhood Fuse Block
Instrument Panel Fuse Block Behind Left Side Of Instrument Panel
Powertrain Control Module Right Of Engine Compartment, Near Rear Of Wheelwell.
SECURITY Indicator On Instrument Cluster
Shock Sensor Mounted On Back Side Of Right Rear Wheelwell
Starter Relay In Bottom Underhood Fuse Block
Theft Deterrent Relay Behind Center Of Instrument Panel, Attached To Inflatable Restraint Module Bracket
Theft LED Top Center Of Instrument Panel
Underhood Fuse Block (Bottom & Top) Left Front Of Engine Compartment

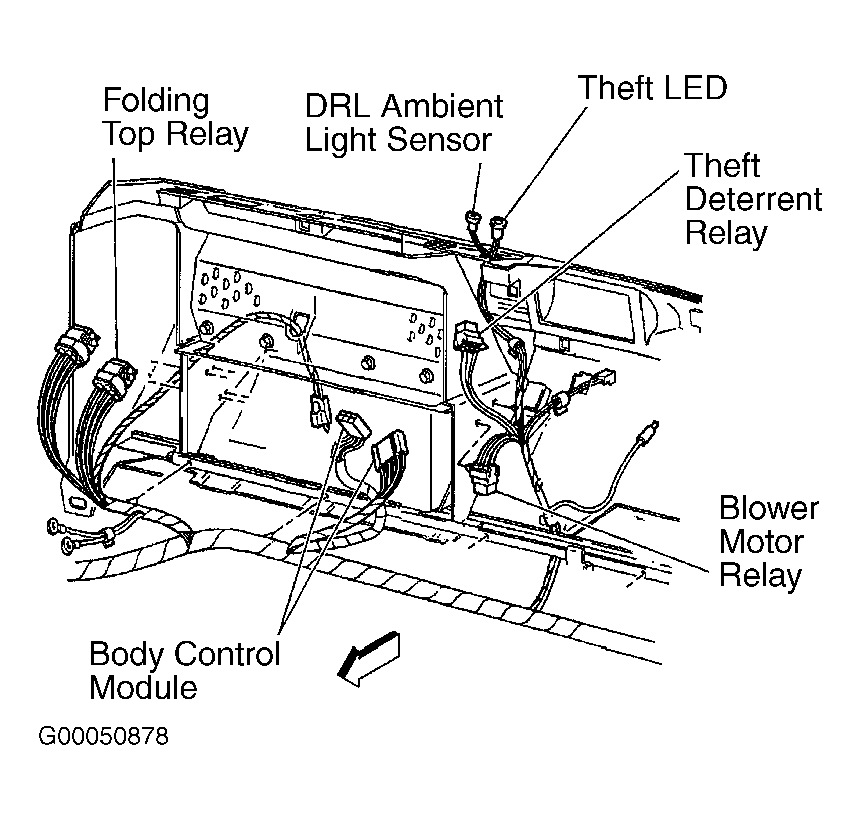

Fig 1: Locating Theft Deterrent Relay
G00050878Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Body Control Module
G00050861Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating Instrument Panel Fuse Block
G00050859Courtesy of GENERAL MOTORS CORP.
Fig 4: Locating Underhood Fuse Blocks
G00050860Courtesy of GENERAL MOTORS CORP.
Fig 5: Locating Theft Deterrent Shock Sensor (Coupe)
G00050862Courtesy of GENERAL MOTORS CORP.
Fig 6: Locating Theft Deterrent Shock Sensor (Convertible)
G00050863Courtesy of GENERAL MOTORS CORP.
