Rear Suspension: Description

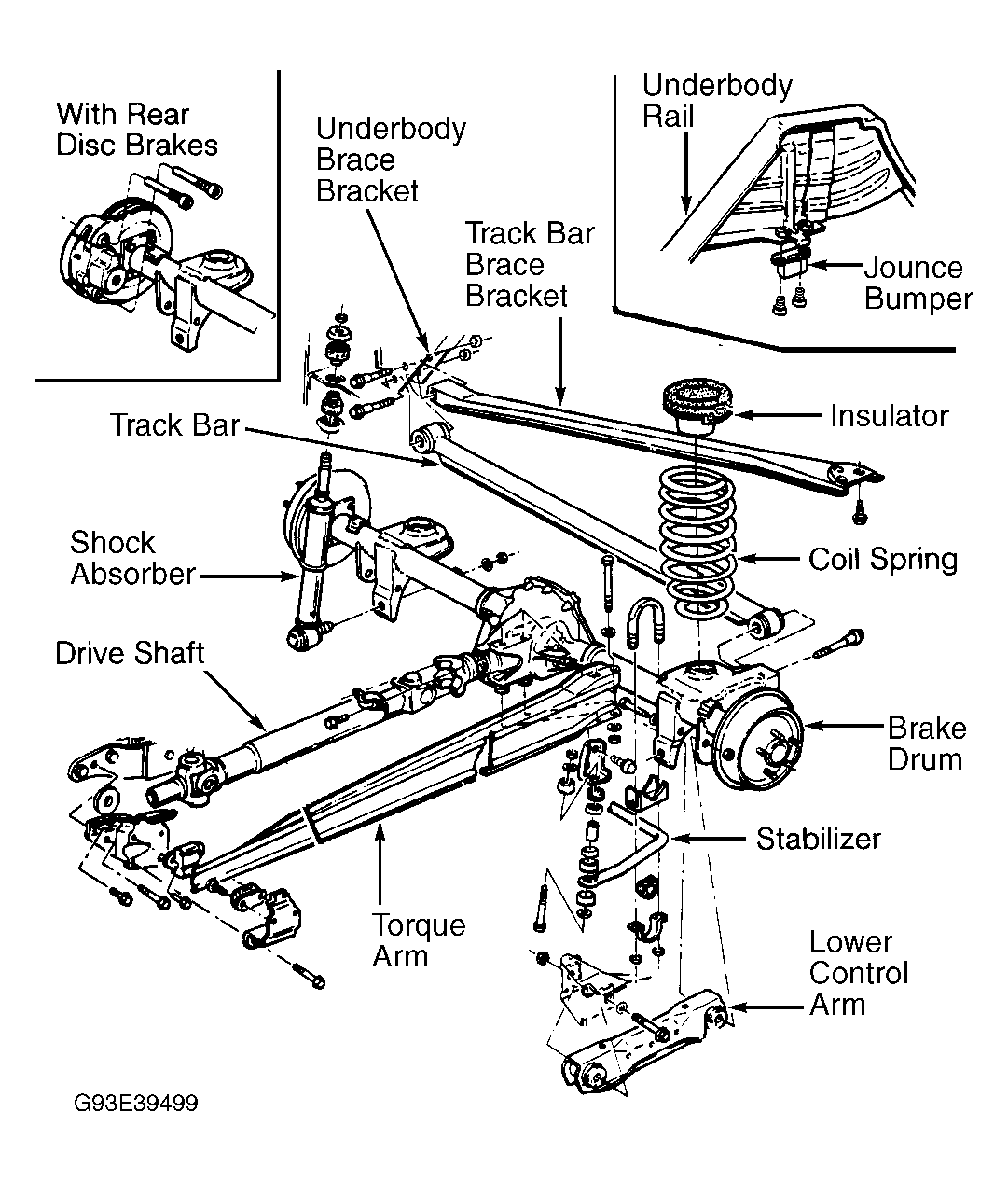

Coil springs bear weight of vehicle. See Fig 1 . Lower control arms, a track bar and a track bar brace maintain a geometrical relationship between the axle housing and frame. A longitudinal torque arm connects differential to transmission. Shock absorbers are attached between the frame and axle housing.
