Data Link Communications Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

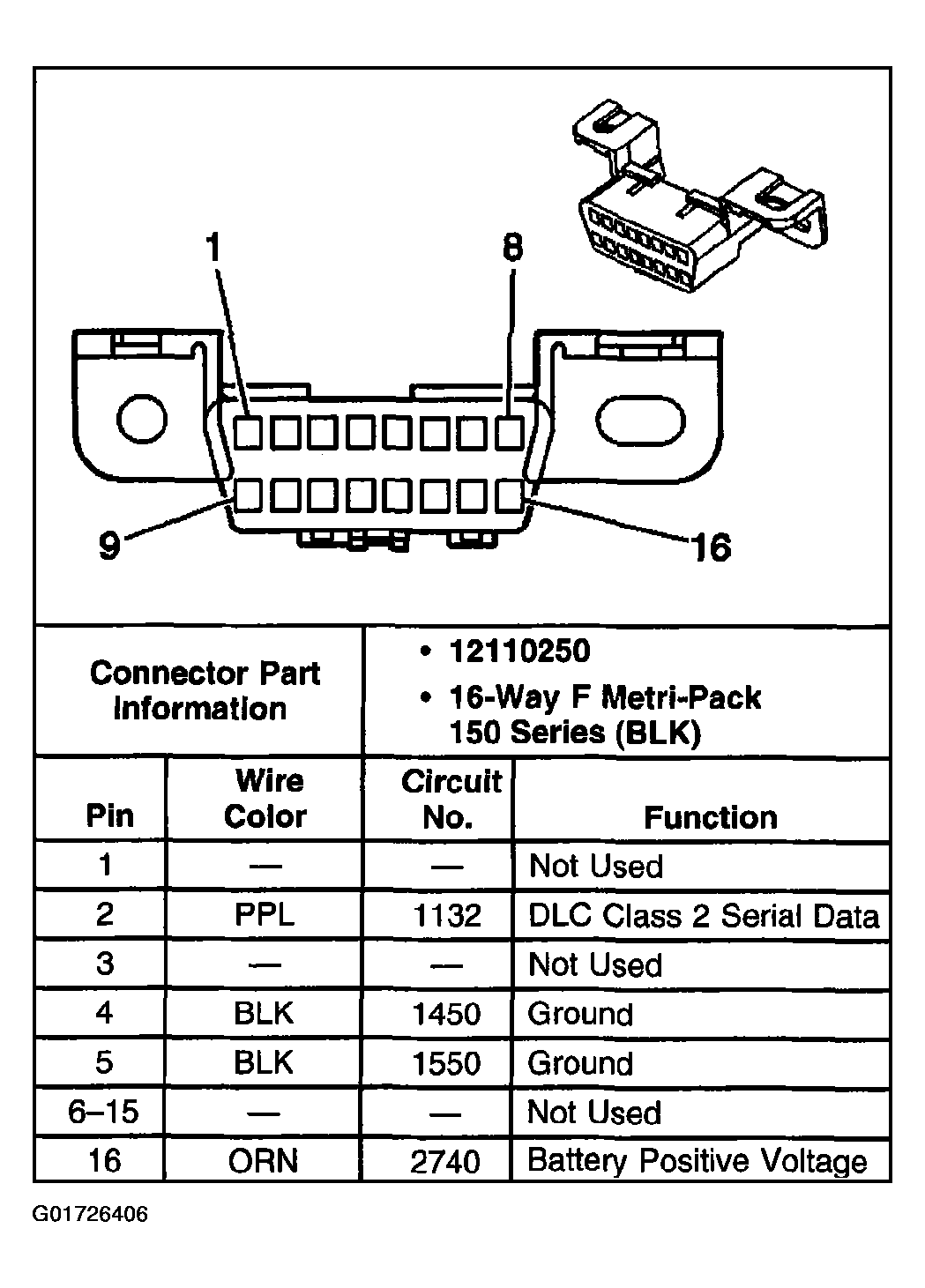

Fig 1: Data Link Connector (DLC) Connector End Views

Courtesy of GENERAL MOTORS CORP.

Fig 2: Splice Pack, SP205 Connector End Views

Courtesy of GENERAL MOTORS CORP.
