Wiper Motor Module Assembly: Installation

1. Position wiper system drive module to cowl.
2. Install wiper system drive module bolts. Tighten bolts to 80 INCH lbs. (9 N.m).
3. Connect wiper motor cover harness connector.
4. Install cruise control module and bracket.
5. Install underhood electrical center.
6. Install air inlet grille panel.
7. Install wiper arms.

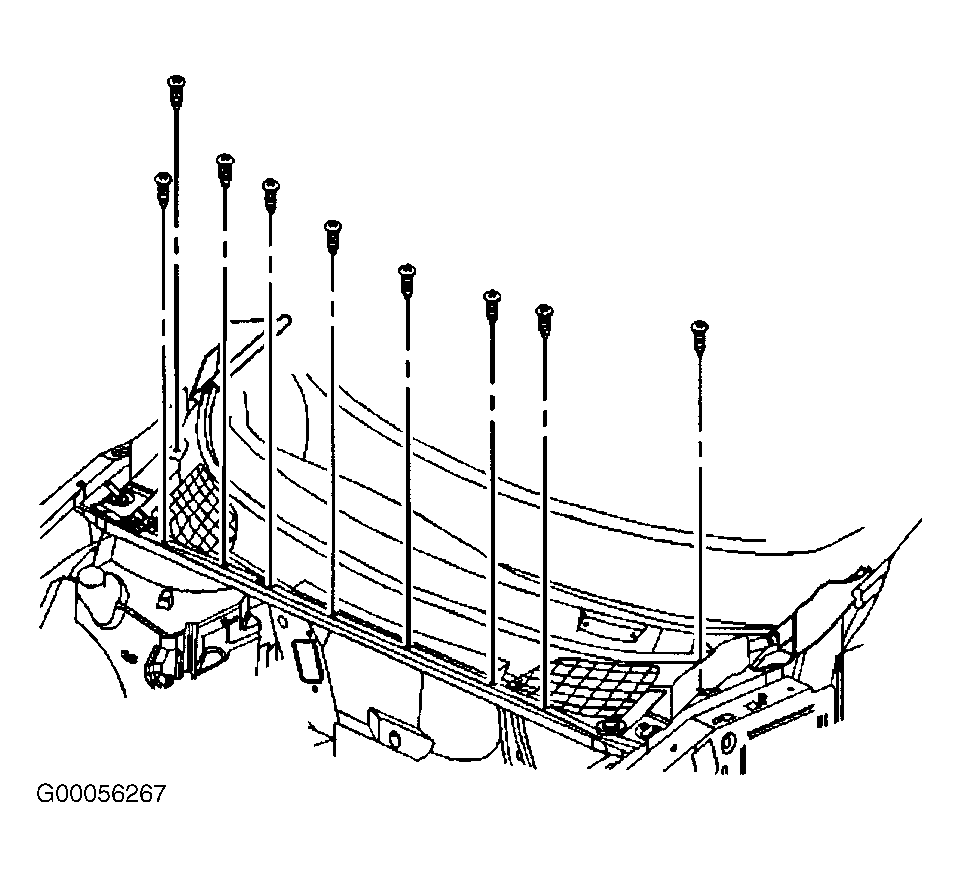

Fig 1: Removing & Installing Air Inlet Grill Panel

Courtesy of GENERAL MOTORS CORP.

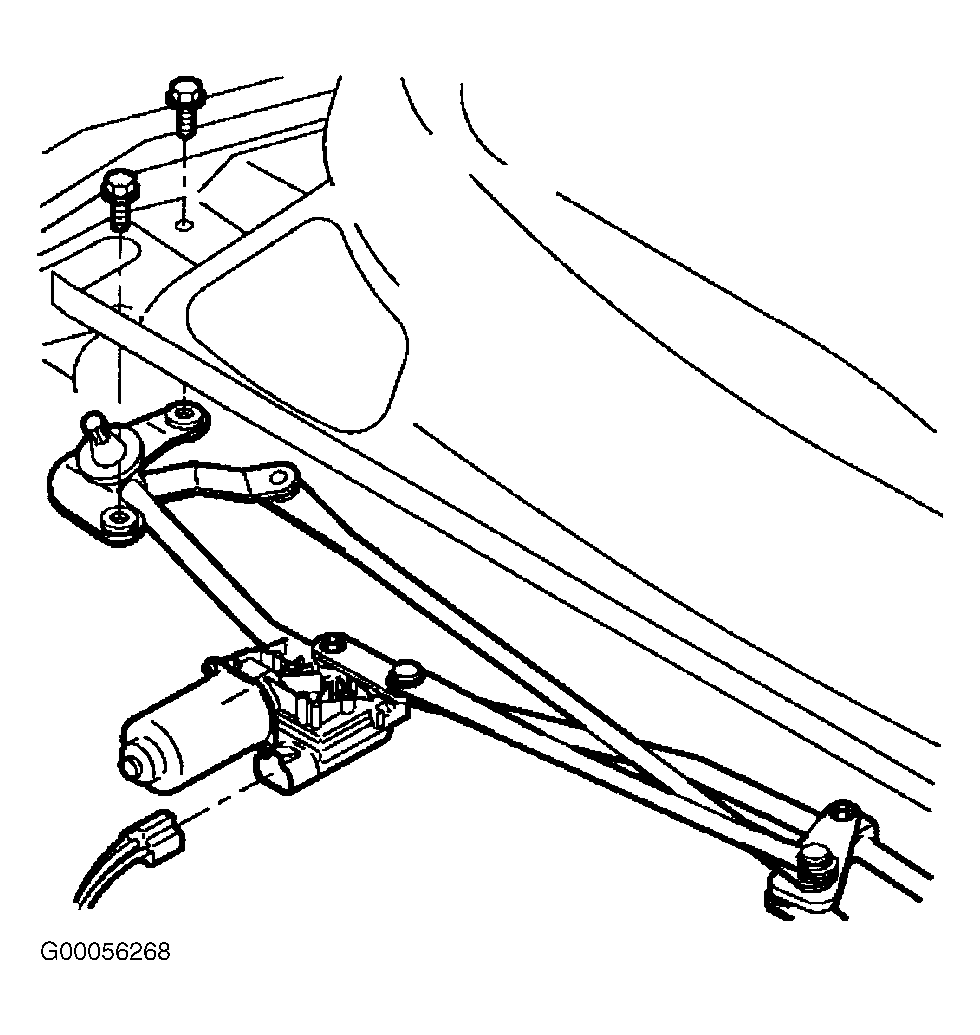

Fig 2: Removing & Installing Wiper Motor Module Assembly

Courtesy of GENERAL MOTORS CORP.
