Security Indicator Led: Installation

1. Connect security indicator LED harness connector to security indicator lamp.
2. Install security indicator lamp (3) to instrument panel upper trim. Insert security indicator LED and rotate LED 1/4 turn clockwise. See Fig 1.
3. Install instrument panel upper trim by reversing removal procedure.

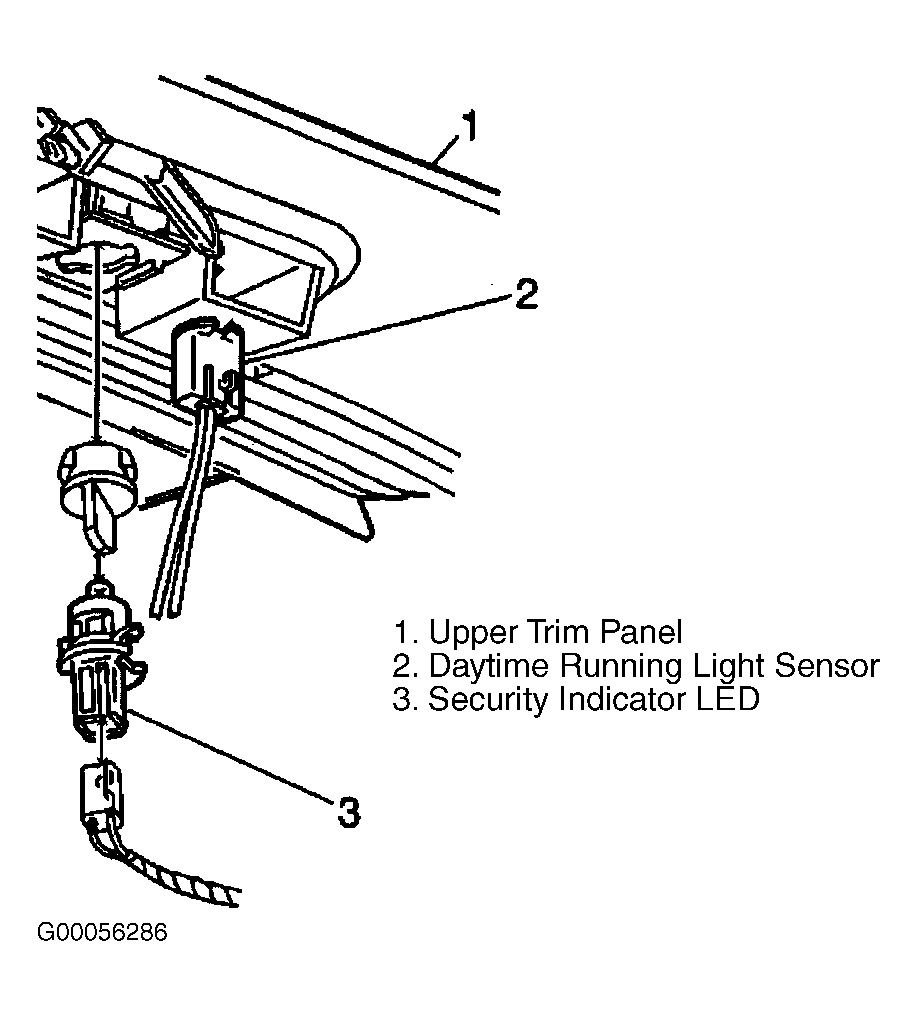

Fig 1: Removing & Installing Security Indicator LED

Courtesy of GENERAL MOTORS CORP.
