Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 3 .

COMPONENT LOCATIONS

Component	Location
Body Control Module	Behind Right Console Access Panel, Inside Of Console, Attached To Center Console Fuse Block
Center Console Fuse Block	In Engine Compartment, Inside Of Air Cleaner Assembly
Horn Assemblies	On Front Bumper Impact Bar Below Left & Right Headlights
Horn Relay	In Center Console Fuse Block
Multifunction Switch	Mounted On Steering Column
Theft Deterrent Module	On End Of Steering Column, Under Steering Wheel
Underhood Junction Block	Right Front Of Engine Compartment, Above Battery

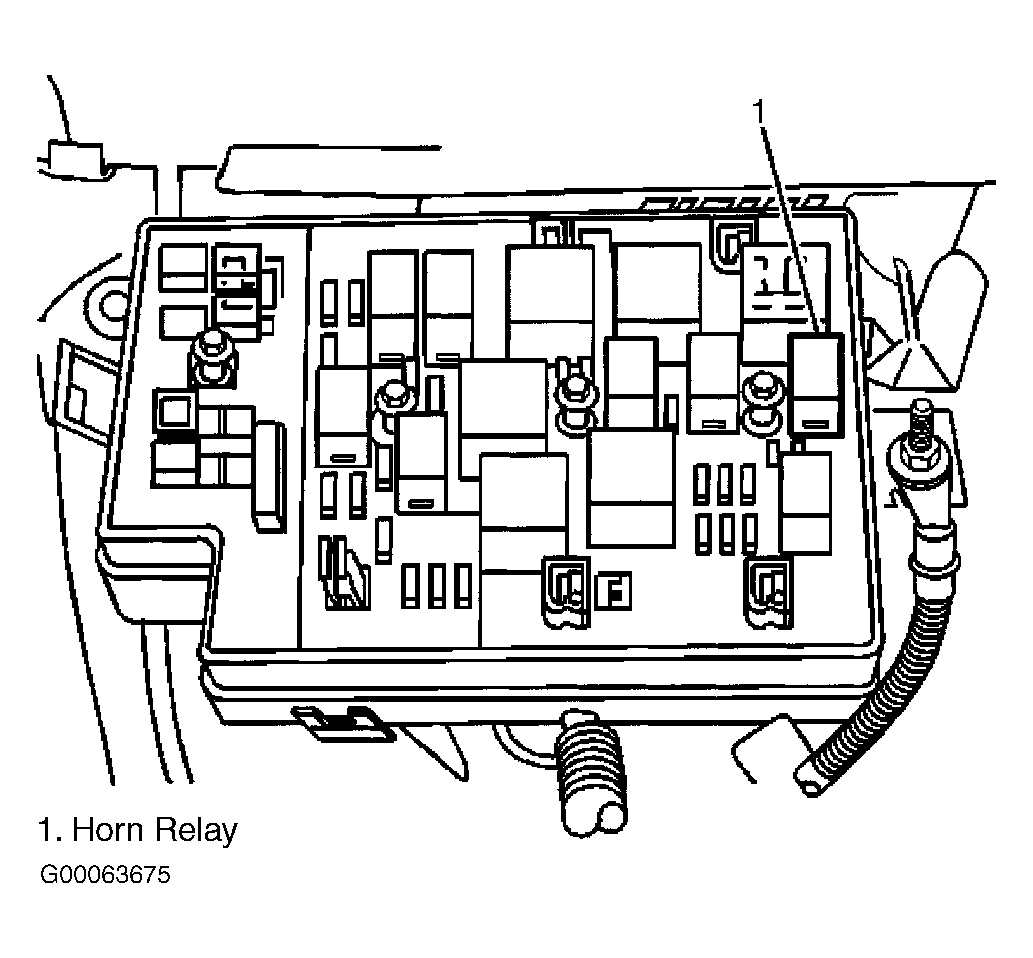

Fig 1: Identifying Underhood Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Center Console Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating Horn Relay

Courtesy of GENERAL MOTORS CORP.
