Door Trim Panel: Removal

  1. Open door.
  2. Remove power window switch assembly. See POWER WINDOW SWITCH.

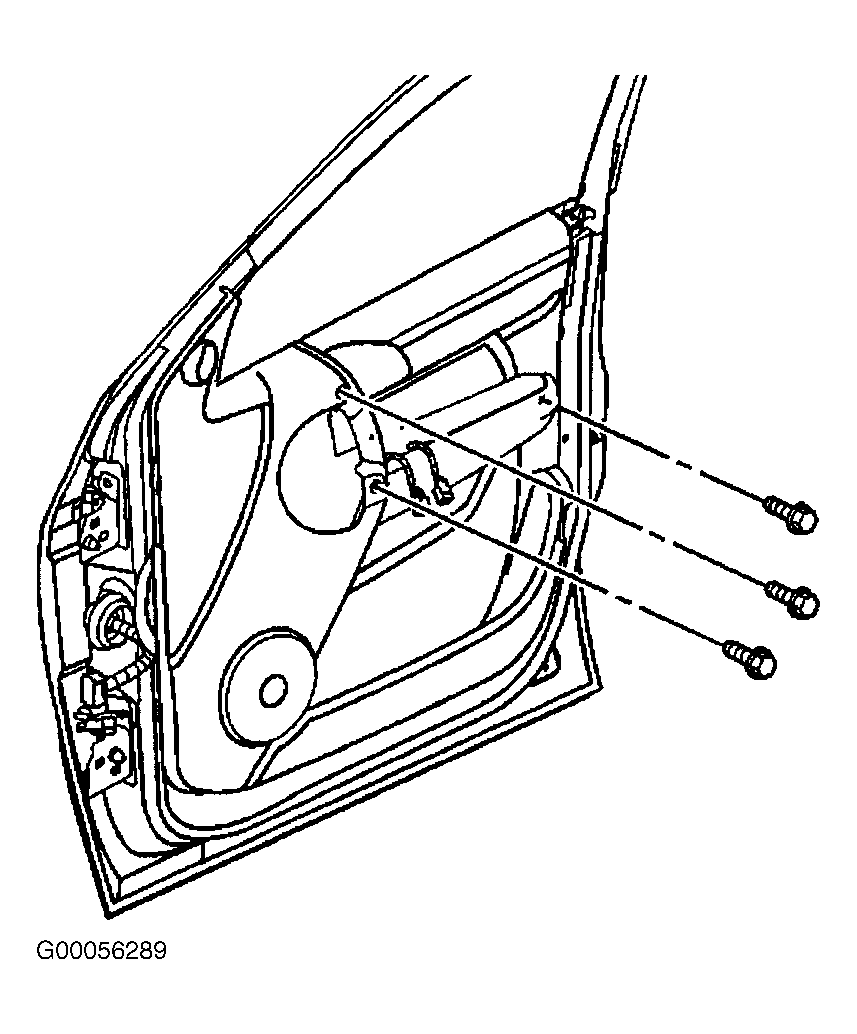

  3. Remove screws from front door trim panel. See Figure .
  4. Remove front door trim panel using, Door Trim Pad and Garnish Clip Remover J38778.
  5. Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION in POWER MIRRORS - AZTEK article.
  6. Reposition harness connectors.

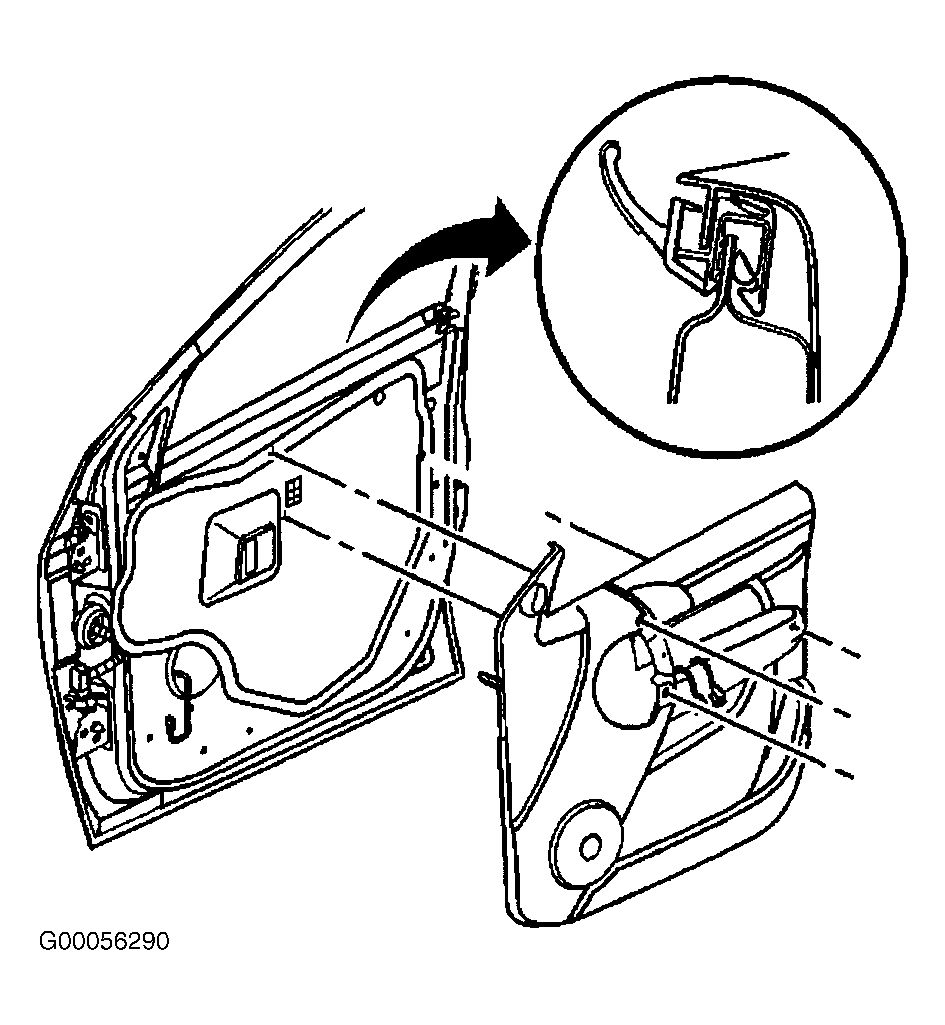

  7. Remove front door trim panel from vehicle. See Figure .
