Cruise Control Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cruise Control - LA1 Schematics

Courtesy of GENERAL MOTORS CORP.

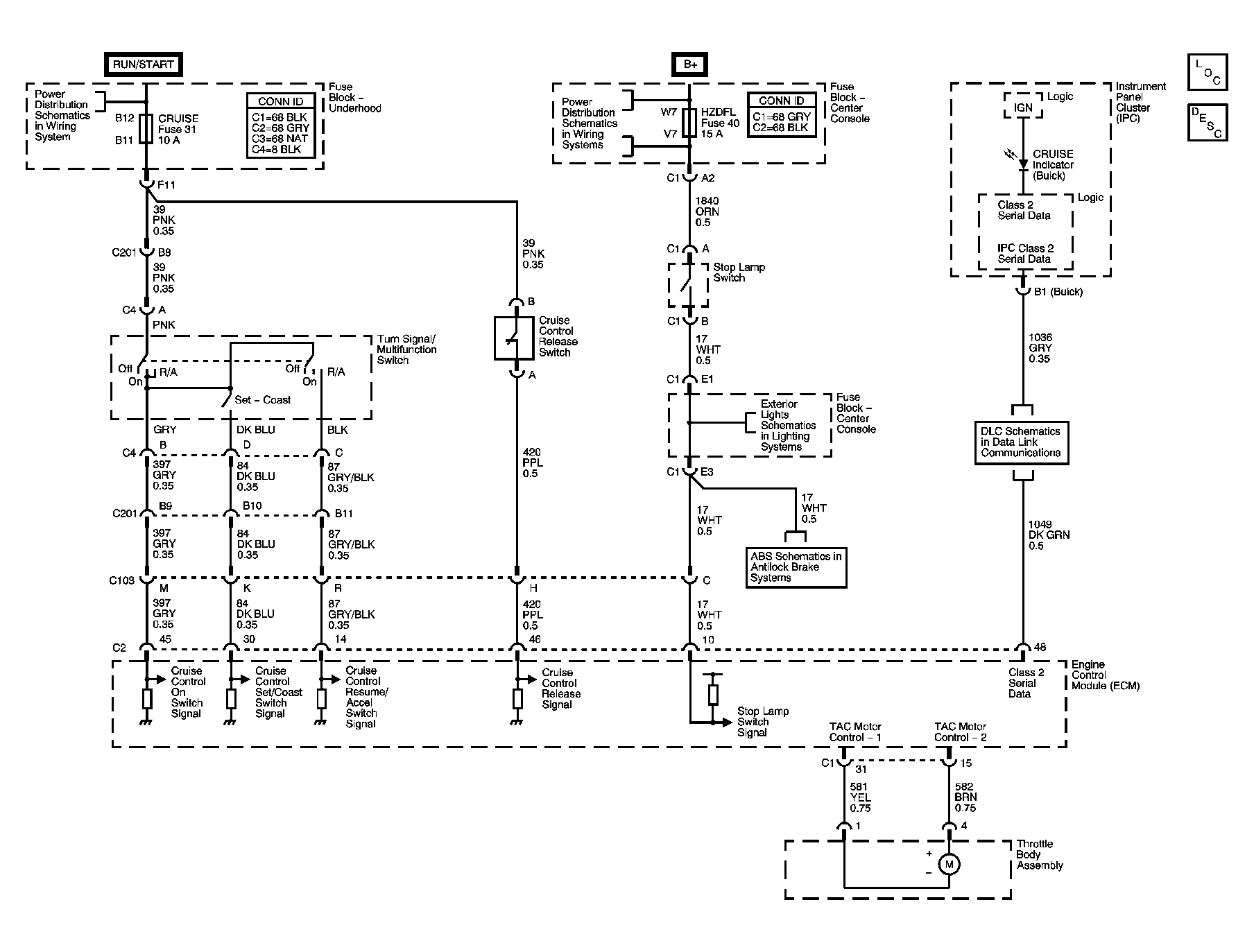

Fig 2: Cruise Control - LY7 Schematics

Courtesy of GENERAL MOTORS CORP.
