Installation Procedure
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

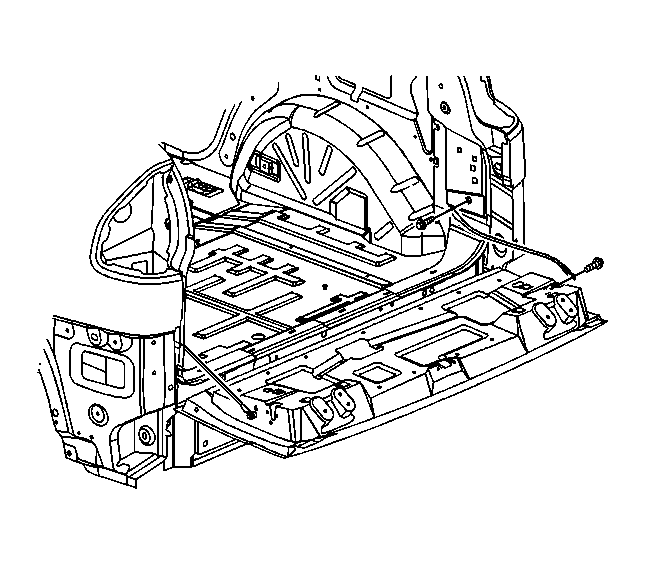

- Position the endgate support cable to the endgate.
Courtesy of GENERAL MOTORS CORP.
- Install the bolts to the endgate support cable.
Tighten:
Tighten the endgate support cable bolts to 3 N.m (27 lb in).
- Remove the support from the endgate.
- Close the endgate.
