Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the brake caliper and rotor. Refer to FRONT BRAKE ROTOR and FRONT BRAKE CALIPER .

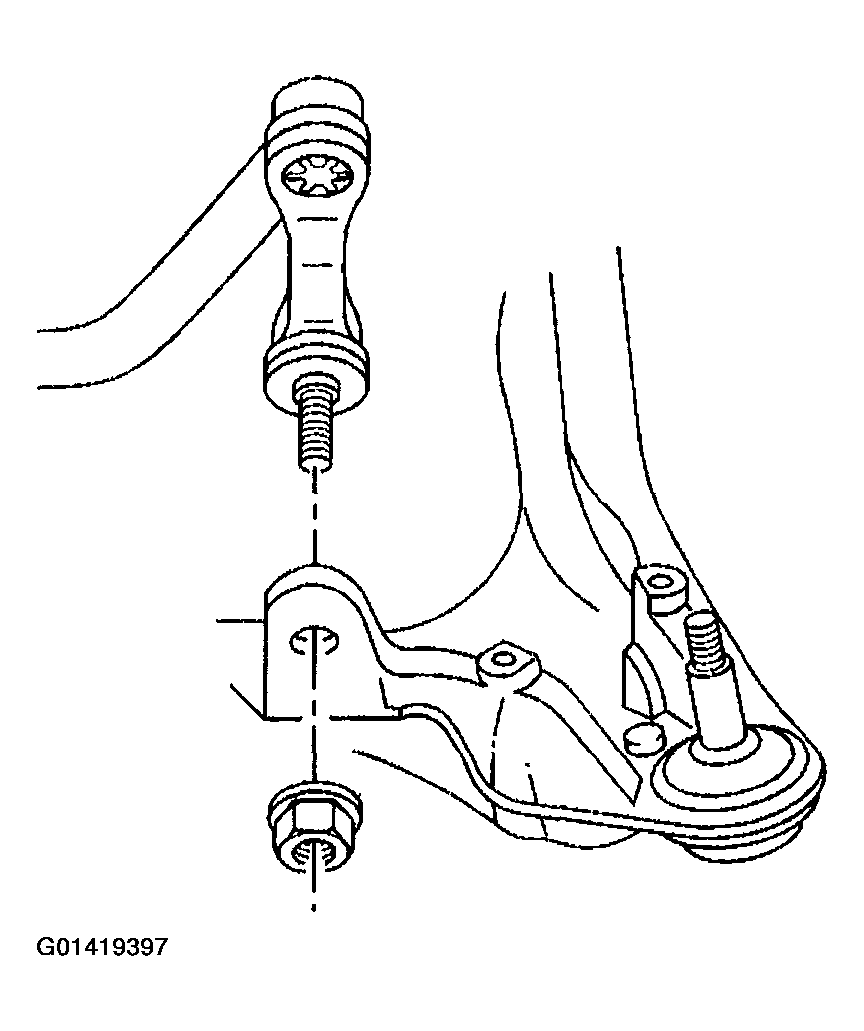

    Fig 1: Removing Stabilizer Shaft Link From Lower Control Arm
    G01419397Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft link from the lower control arm.

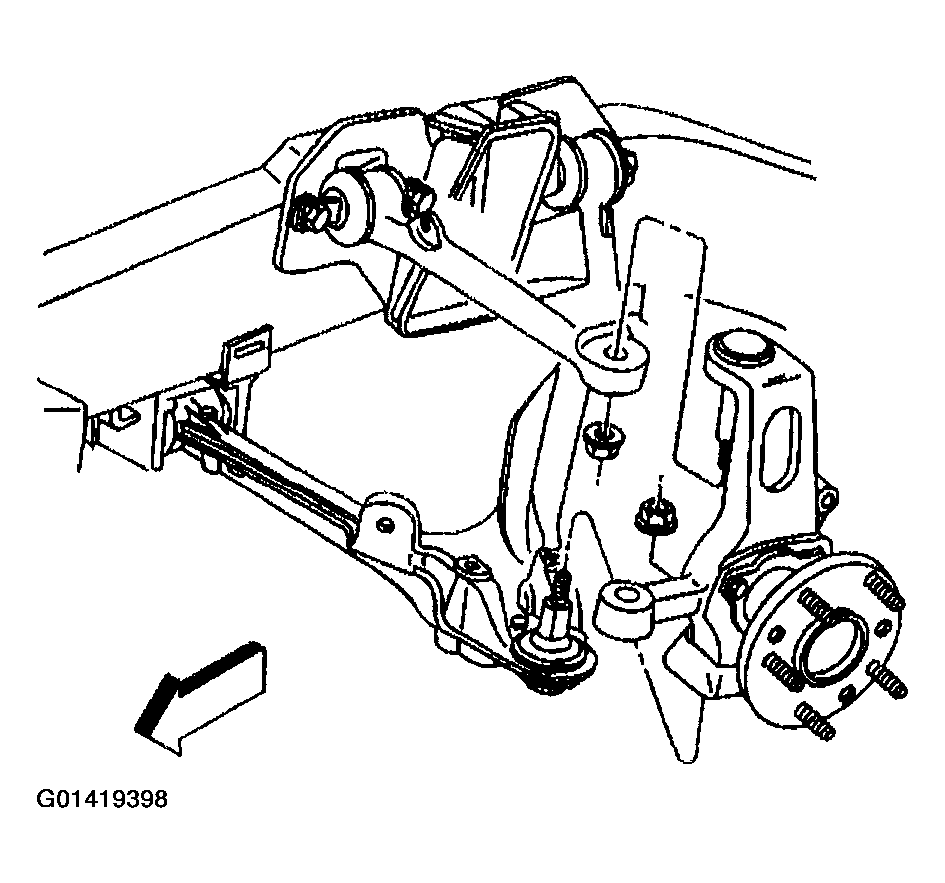

    Fig 2: Removing Stabilizer Shaft Link From Lower Control Arm
    G01419398Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the wheel speed sensor electrical connector.

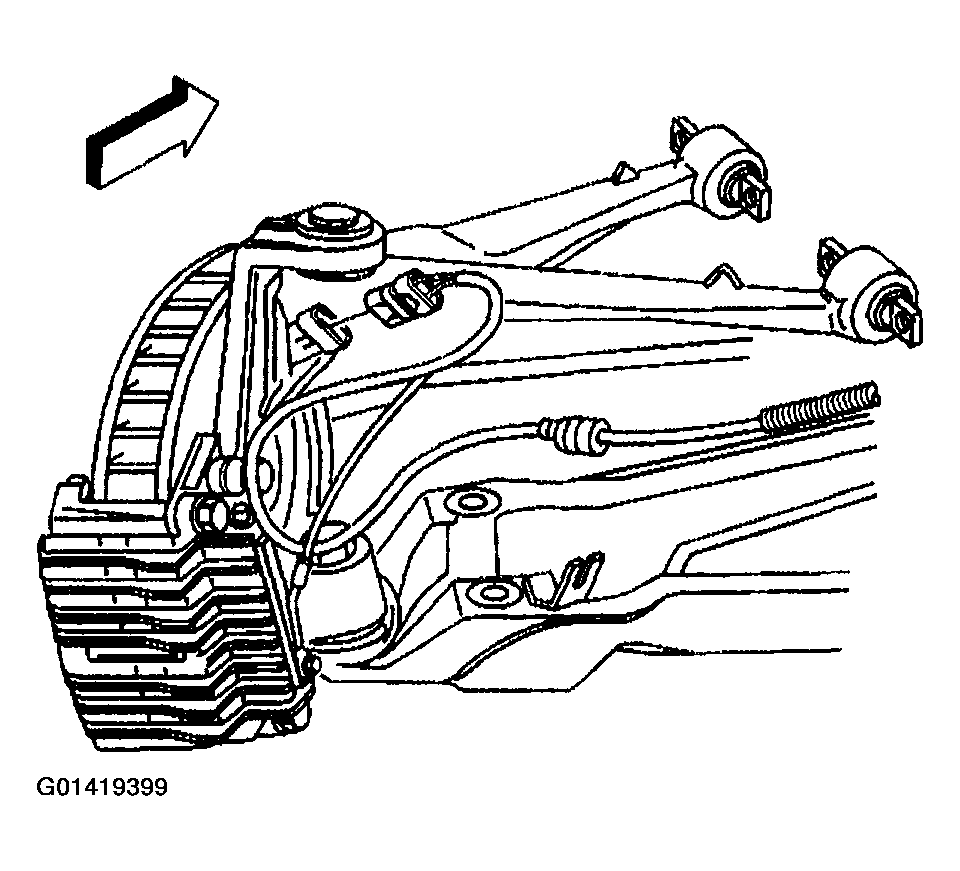

    Fig 3: Disconnecting Wheel Speed Sensor Electrical Connector
    G01419399Courtesy of GENERAL MOTORS CORP.
  5. Support the lower control arm using a jackstand.
  6. Separate the steering linkage outer tie rod ball stud from the steering knuckle using J 42188  . Refer to TIE ROD END REPLACEMENT - OUTER in Power Steering Systems.
  7. Separate and remove the upper control arm ball joint stud from the steering knuckle using J 42188  . Refer to UPPER CONTROL ARM REPLACEMENT  .
  8. Using J 42188  separate and remove the lower ball joint stud from the steering knuckle. Refer to LOWER CONTROL ARM REPLACEMENT  .
  9. Remove the steering knuckle from the vehicle.
